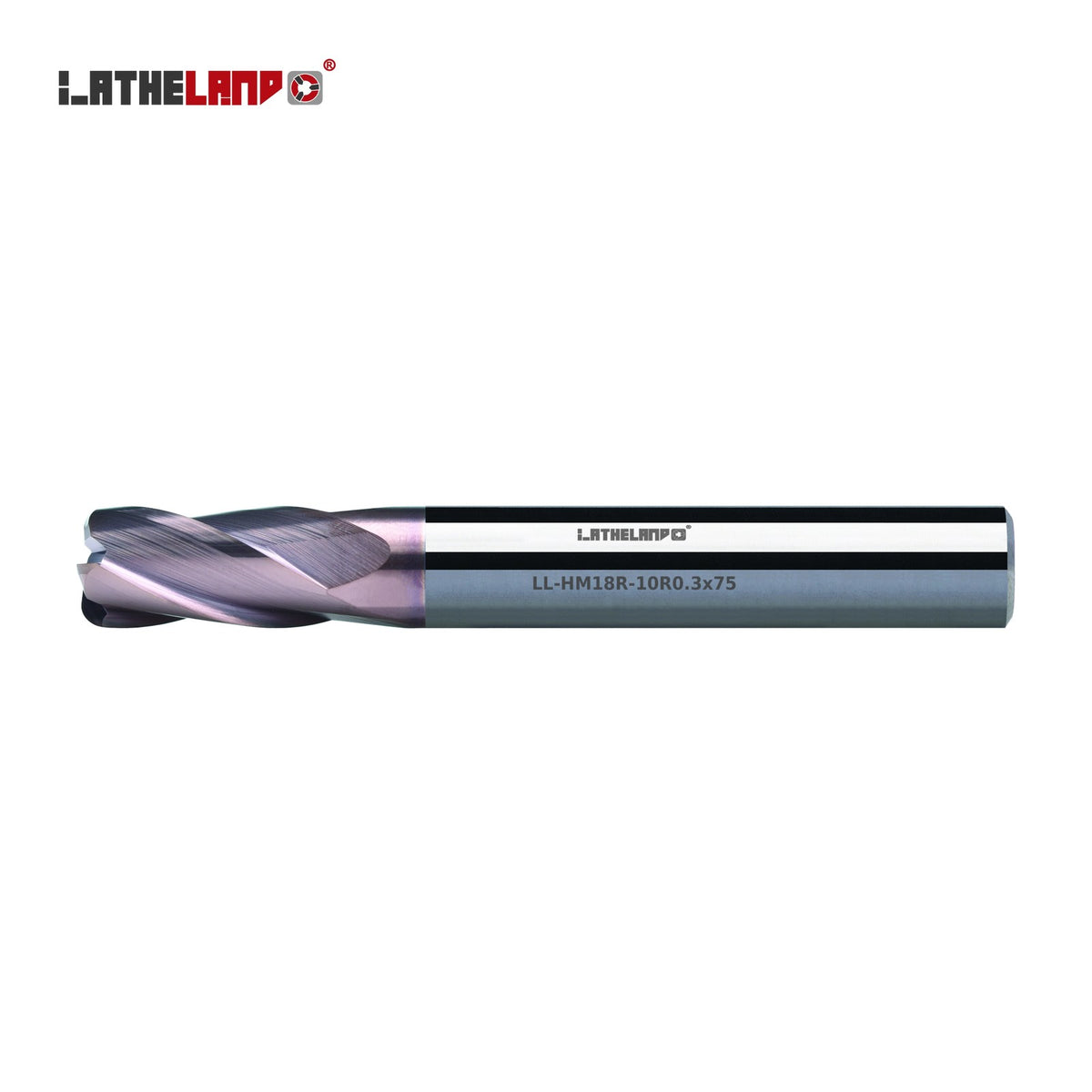

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
Also available from stock with online prices: Hard-Milling Torus End Mill, 4 Flutes (TR4).
| Series | HM18 |
| Material | Solid carbide |
| Coating | AlTiSiN multilayer |
| Flutes | 4 |
| Workpiece hardness | 50–70 HRC |
| Best for | hardened steel |
| Also suitable for | steel, stainless steel, cast iron, aluminium & non-ferrous, titanium & superalloys |
| Range | Ø1–20 mm |
| Sizes available | 133 |
| Price | On request – supplied on quotation |

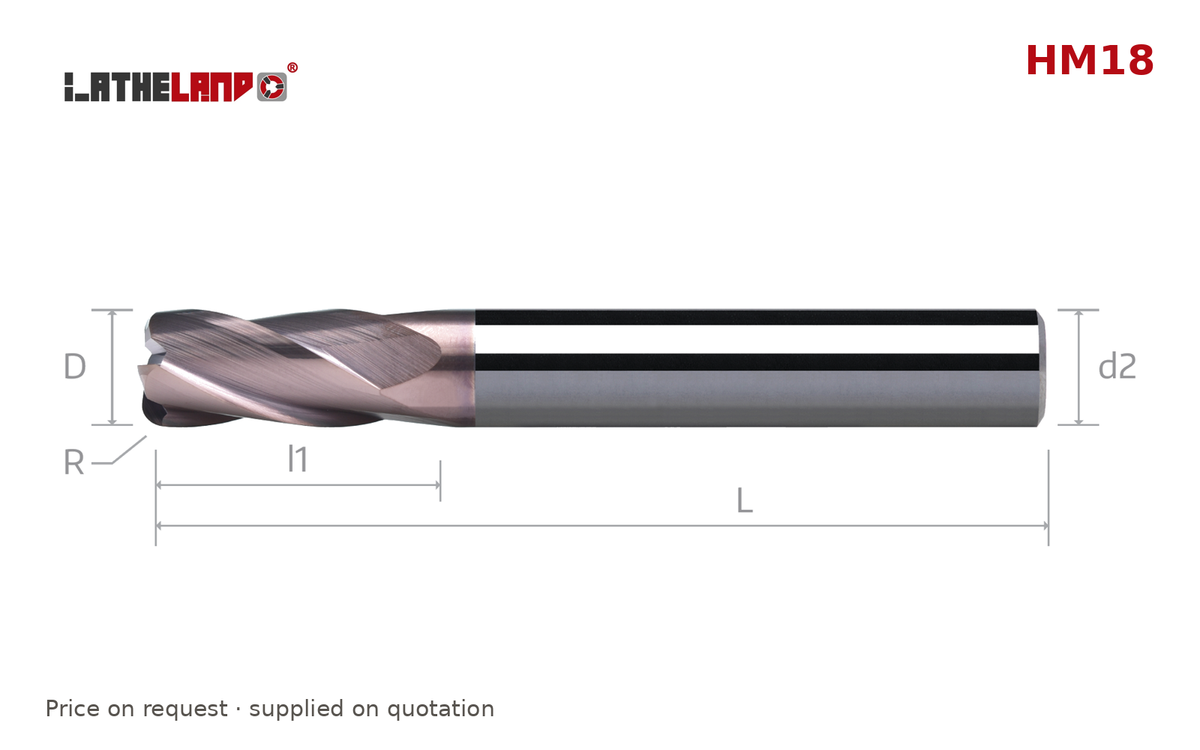

| SKU | Ø D | R | l1 | l2 | L | d1 | d2 |
|---|---|---|---|---|---|---|---|
| LL-HM18R-1R0.1x50N1.5 | 1 | 0.1 | 1.5 | 50 | 4 | ||
| LL-HM18R-1R0.2x50N1.5 | 1 | 0.2 | 1.5 | 50 | 4 | ||
| LL-HM18R-1R0.3x50N1.5 | 1 | 0.3 | 1.5 | 50 | 4 | ||
| LL-HM18R-1R0.1x50 | 1 | 0.1 | 50 | 4 | |||
| LL-HM18R-1R0.2x50 | 1 | 0.2 | 50 | 4 | |||
| LL-HM18R-1R0.3x50 | 1 | 0.3 | 6.5 | 50 | 0.95 | 4 | |
| LL-HM18R-1.5R0.1x50N2 | 1.5 | 0.1 | 2 | 50 | 4 | ||
| LL-HM18R-1.5R0.2x50N2 | 1.5 | 0.2 | 2 | 50 | 4 | ||
| LL-HM18R-1.5R0.3x50N2 | 1.5 | 0.3 | 2 | 50 | 4 | ||
| LL-HM18R-1.5R0.5x50N2 | 1.5 | 0.5 | 2 | 50 | 4 | ||
| LL-HM18R-1.5R0.1x50 | 1.5 | 0.1 | 6.5 | 50 | 1.45 | 4 | |
| LL-HM18R-1.5R0.2x50 | 1.5 | 0.2 | 4 | 50 | 1.45 | 4 | |
| LL-HM18R-1.5R0.3x50 | 1.5 | 0.3 | 50 | 4 | |||
| LL-HM18R-1.5R0.5x50 | 1.5 | 0.5 | 50 | 4 | |||
| LL-HM18R-2R0.1x50N3 | 2 | 0.1 | 3 | 50 | 4 | ||
| LL-HM18R-2R0.2x50N3 | 2 | 0.2 | 3 | 50 | 4 | ||
| LL-HM18R-2R0.3x50N3 | 2 | 0.3 | 3 | 50 | 4 | ||
| LL-HM18R-2R0.5x50N3 | 2 | 0.5 | 3 | 50 | 4 | ||
| LL-HM18R-2R0.1x50 | 2 | 0.1 | 9 | 50 | 1.94 | 4 | |
| LL-HM18R-2R0.2x50 | 2 | 0.2 | 12 | 50 | 1.94 | 4 | |
| LL-HM18R-2R0.3x50 | 2 | 0.3 | 12 | 50 | 1.94 | 4 | |
| LL-HM18R-2R0.5x50 | 2 | 0.5 | 12 | 50 | 1.94 | 4 | |
| LL-HM18R-2.5R0.1x50 | 2.5 | 0.1 | 50 | 4 | |||
| LL-HM18R-2.5R0.2x50 | 2.5 | 0.2 | 50 | 4 | |||
| LL-HM18R-2.5R0.3x50 | 2.5 | 0.3 | 15 | 50 | 2.4 | 4 | |
| LL-HM18R-2.5R0.5x50 | 2.5 | 0.5 | 15 | 50 | 2.4 | 4 | |
| LL-HM18R-3R0.1x50N4.5 | 3 | 0.1 | 4.5 | 50 | 4 | ||
| LL-HM18R-3R0.1x60N4.5 | 3 | 0.1 | 4.5 | 60 | 6 | ||
| LL-HM18R-3R0.2x50N4.5 | 3 | 0.2 | 4.5 | 50 | 4 | ||
| LL-HM18R-3R0.2x60N4.5 | 3 | 0.2 | 4.5 | 60 | 6 | ||
| LL-HM18R-3R0.3x50N4.5 | 3 | 0.3 | 4.5 | 50 | 4 | ||
| LL-HM18R-3R0.3x60N4.5 | 3 | 0.3 | 4.5 | 60 | 6 | ||
| LL-HM18R-3R0.5x50N4.5 | 3 | 0.5 | 4.5 | 50 | 4 | ||
| LL-HM18R-3R0.5x60N4.5 | 3 | 0.5 | 4.5 | 60 | 6 | ||
| LL-HM18R-3R1x50N4.5 | 3 | 1 | 4.5 | 50 | 4 | ||
| LL-HM18R-3R1x60N4.5 | 3 | 1 | 4.5 | 60 | 6 | ||
| LL-HM18R-3R0.1x50 | 3 | 0.1 | 15 | 50 | 2.85 | 4 | |
| LL-HM18R-3R0.1x60 | 3 | 0.1 | 16 | 60 | 2.85 | 6 | |
| LL-HM18R-3R0.2x50 | 3 | 0.2 | 50 | 4 | |||
| LL-HM18R-3R0.2x60 | 3 | 0.2 | 60 | 6 | |||
| LL-HM18R-3R0.3x50 | 3 | 0.3 | 8 | 50 | 2.85 | 4 | |
| LL-HM18R-3R0.3x60 | 3 | 0.3 | 8 | 60 | 2.85 | 6 | |
| LL-HM18R-3R0.5x50 | 3 | 0.5 | 20 | 50 | 2.85 | 4 | |
| LL-HM18R-3R0.5x60 | 3 | 0.5 | 60 | 6 | |||
| LL-HM18R-3R1x50 | 3 | 1 | 50 | 4 | |||
| LL-HM18R-3R1x60 | 3 | 1 | 60 | 6 | |||
| LL-HM18R-4R0.1x60N6 | 4 | 0.1 | 6 | 60 | 4 | ||
| LL-HM18R-4R0.1x75N6 | 4 | 0.1 | 6 | 75 | 6 | ||
| LL-HM18R-4R0.2x60N6 | 4 | 0.2 | 6 | 60 | 4 | ||
| LL-HM18R-4R0.2x75N6 | 4 | 0.2 | 6 | 75 | 6 | ||
| LL-HM18R-4R0.3x60N6 | 4 | 0.3 | 6 | 60 | 4 | ||
| LL-HM18R-4R0.3x75N6 | 4 | 0.3 | 6 | 75 | 6 | ||
| LL-HM18R-4R0.5x60N6 | 4 | 0.5 | 6 | 60 | 4 | ||
| LL-HM18R-4R0.5x75N6 | 4 | 0.5 | 6 | 75 | 6 | ||
| LL-HM18R-4R1x60N6 | 4 | 1 | 6 | 60 | 4 | ||
| LL-HM18R-4R1x75N6 | 4 | 1 | 6 | 75 | 6 | ||
| LL-HM18R-4R0.1x60 | 4 | 0.1 | 9 | 60 | 3.8 | 4 | |
| LL-HM18R-4R0.1x75 | 4 | 0.1 | 10 | 75 | 3.8 | 6 | |
| LL-HM18R-4R0.2x60 | 4 | 0.2 | 9 | 60 | 3.8 | 4 | |
| LL-HM18R-4R0.2x75 | 4 | 0.2 | 75 | 6 | |||
| LL-HM18R-4R0.3x60 | 4 | 0.3 | 60 | 4 | |||
| LL-HM18R-4R0.3x75 | 4 | 0.3 | 10 | 75 | 3.8 | 6 | |
| LL-HM18R-4R0.5x60 | 4 | 0.5 | 9 | 60 | 3.8 | 4 | |
| LL-HM18R-4R0.5x75 | 4 | 0.5 | 10 | 75 | 3.8 | 6 | |
| LL-HM18R-4R1x60 | 4 | 1 | 9 | 60 | 3.8 | 4 | |
| LL-HM18R-4R1x75 | 4 | 1 | 75 | 6 | |||
| LL-HM18R-6R0.1x60 | 6 | 0.1 | 60 | 6 | |||
| LL-HM18R-6R0.1x75 | 6 | 0.1 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R0.2x60 | 6 | 0.2 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R0.2x75 | 6 | 0.2 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R0.3x60 | 6 | 0.3 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R0.3x75 | 6 | 0.3 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R0.5x60 | 6 | 0.5 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R0.5x75 | 6 | 0.5 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R0.5x75-C20 | 6 | 0.5 | 20 | 75 | 5.8 | 6 | |
| LL-HM18R-6R0.5x100 | 6 | 0.5 | 13 | 100 | 5.8 | 6 | |
| LL-HM18R-6R1x60 | 6 | 1 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R1x75 | 6 | 1 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R1.5x60 | 6 | 1.5 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R1.5x75 | 6 | 1.5 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-6R2x60 | 6 | 2 | 11 | 60 | 5.8 | 6 | |
| LL-HM18R-6R2x75 | 6 | 2 | 13 | 75 | 5.8 | 6 | |
| LL-HM18R-8R0.2x75 | 8 | 0.2 | 75 | 8 | |||
| LL-HM18R-8R0.3x75 | 8 | 0.3 | 75 | 8 | |||
| LL-HM18R-8R0.3x100 | 8 | 0.3 | 100 | 8 | |||
| LL-HM18R-8R0.5x75-C16 | 8 | 0.5 | 75 | 8 | |||
| LL-HM18R-8R0.5x75-C19 | 8 | 0.5 | 75 | 8 | |||
| LL-HM18R-8R0.5x75-C25 | 8 | 0.5 | 75 | 8 | |||
| LL-HM18R-8R0.5x100 | 8 | 0.5 | 100 | 8 | |||
| LL-HM18R-8R1x75 | 8 | 1 | 75 | 8 | |||
| LL-HM18R-8R1x100 | 8 | 1 | 100 | 8 | |||
| LL-HM18R-8R1.5x75 | 8 | 1.5 | 75 | 8 | |||
| LL-HM18R-8R1.5x100 | 8 | 1.5 | 100 | 8 | |||
| LL-HM18R-8R2x75 | 8 | 2 | 75 | 8 | |||
| LL-HM18R-8R2x100 | 8 | 2 | 100 | 8 | |||
| LL-HM18R-10R0.3x75 | 10 | 0.3 | 75 | 10 | |||
| LL-HM18R-10R0.3x100 | 10 | 0.3 | 100 | 10 | |||
| LL-HM18R-10R0.5x75-C19 | 10 | 0.5 | 75 | 10 | |||
| LL-HM18R-10R0.5x75-C25 | 10 | 0.5 | 75 | 10 | |||
| LL-HM18R-10R0.5x100-C22 | 10 | 0.5 | 100 | 10 | |||
| LL-HM18R-10R0.5x100-C30 | 10 | 0.5 | 100 | 10 | |||
| LL-HM18R-10R0.5x125 | 10 | 0.5 | 125 | 10 | |||
| LL-HM18R-10R0.5x150 | 10 | 0.5 | 150 | 10 | |||
| LL-HM18R-10R0.5x150-C30 | 10 | 0.5 | 150 | 10 | |||
| LL-HM18R-10R1x75 | 10 | 1 | 75 | 10 | |||
| LL-HM18R-10R1x100 | 10 | 1 | 100 | 10 | |||
| LL-HM18R-10R1.5x75 | 10 | 1.5 | 75 | 10 | |||
| LL-HM18R-10R1.5x100 | 10 | 1.5 | 100 | 10 | |||
| LL-HM18R-10R2x75 | 10 | 2 | 75 | 10 | |||
| LL-HM18R-10R2x100 | 10 | 2 | 100 | 10 | |||
| LL-HM18R-10R2.5x75 | 10 | 2.5 | 75 | 10 | |||
| LL-HM18R-10R2.5x100 | 10 | 2.5 | 100 | 10 | |||
| LL-HM18R-12R0.3x75 | 12 | 0.3 | 75 | 12 | |||
| LL-HM18R-12R0.3x100 | 12 | 0.3 | 100 | 12 | |||
| LL-HM18R-12R0.5x75 | 12 | 0.5 | 75 | 12 | |||
| LL-HM18R-12R0.5x100-C26 | 12 | 0.5 | 100 | 12 | |||
| LL-HM18R-12R0.5x100-C35 | 12 | 0.5 | 100 | 12 | |||
| LL-HM18R-12R0.5x150-C26 | 12 | 0.5 | 150 | 12 | |||
| LL-HM18R-12R0.5x150-C35 | 12 | 0.5 | 150 | 12 | |||
| LL-HM18R-12R1x75 | 12 | 1 | 22 | 75 | 11.7 | 12 | |
| LL-HM18R-12R1x100 | 12 | 1 | 26 | 100 | 11.7 | 12 | |
| LL-HM18R-12R1.5x75 | 12 | 1.5 | 22 | 75 | 11.7 | 12 | |
| LL-HM18R-12R1.5x100 | 12 | 1.5 | 26 | 100 | 11.7 | 12 | |
| LL-HM18R-12R2x75 | 12 | 2 | 22 | 75 | 11.7 | 12 | |
| LL-HM18R-12R2x100 | 12 | 2 | 26 | 100 | 11.7 | 12 | |
| LL-HM18R-12R2.5x75 | 12 | 2.5 | 22 | 75 | 11.7 | 12 | |
| LL-HM18R-12R2.5x100 | 12 | 2.5 | 26 | 100 | 11.7 | 12 | |
| LL-HM18R-12R3x75 | 12 | 3 | 22 | 75 | 11.7 | 12 | |
| LL-HM18R-12R3x100 | 12 | 3 | 26 | 100 | 11.7 | 12 | |
| LL-HM18R-16R0.5x90 | 16 | 0.5 | 32 | 90 | 15 | 16 | |
| LL-HM18R-16R1x90 | 16 | 1 | 32 | 90 | 15 | 16 | |
| LL-HM18R-20R0.5x100 | 20 | 0.5 | 40 | 100 | 19 | 20 | |
| LL-HM18R-20R1x100 | 20 | 1 | 40 | 100 | 19 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
