BOEHM, French manufacturer of hollow punches and gasket cutting tools since 1920.
Mount JLB punches up to Ø100 mm on a press with a Ø16 mm bore

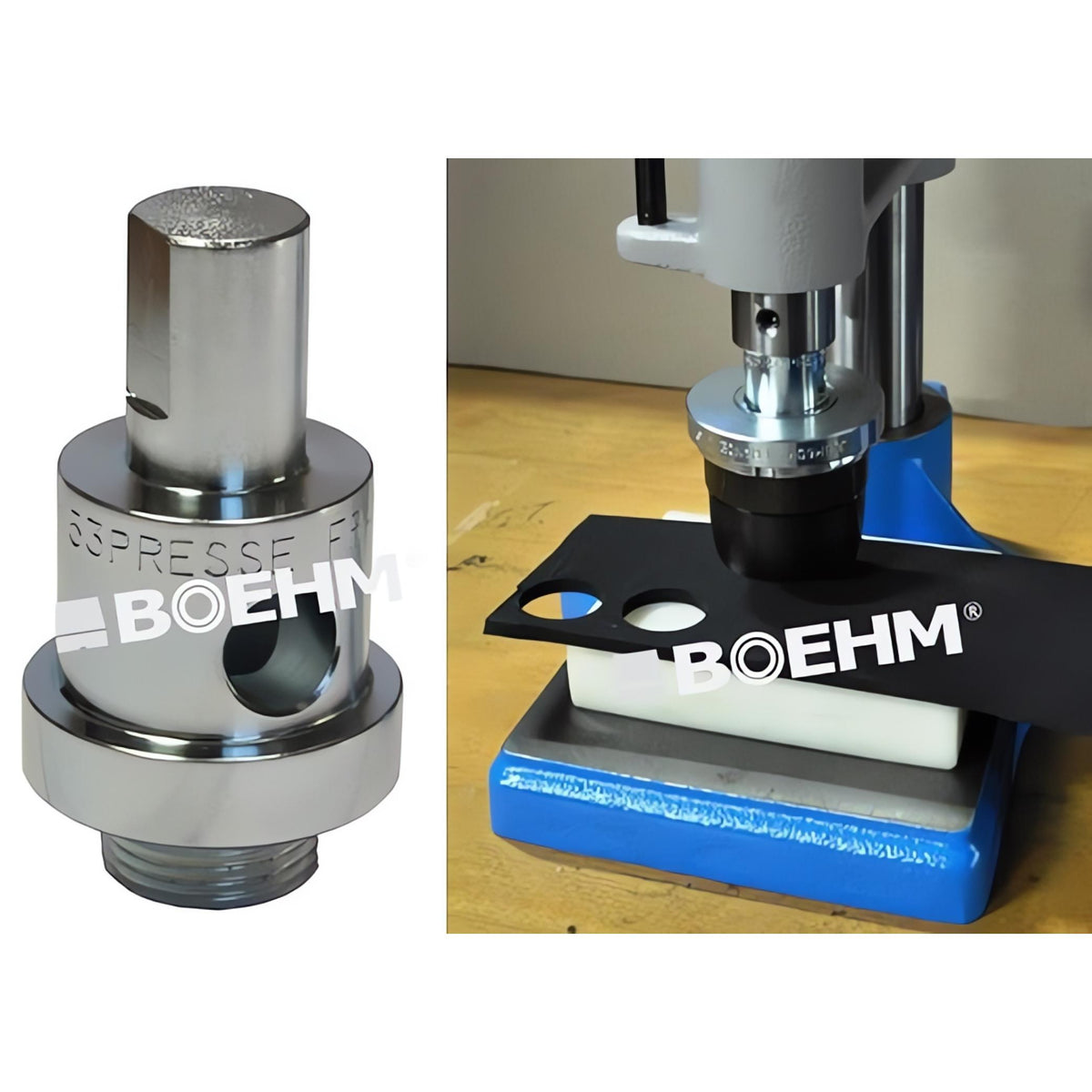

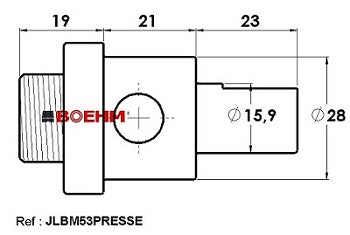

Fixes Boehm punches to a press and keeps the twinning function. The M20 x 1 threaded end takes the JLBM50PA (Ø2 to 50 mm), JLBM60PA (Ø2 to 60 mm) and JLBM100 (Ø2 to 100 mm) chucks. The adaptor is held by an M8 set screw in a Ø16 mm bore.
Cutting with punches on a press takes some care. Make sure the press delivers enough force with a slow, controlled stroke, and use a suitable cutting board. The ready-to-use PRES4HRD60 press is also available.
Compatibility
- EMG rack presses 3HR, 4HR, 14HR, 50HR
- EMG toggle presses 7HR, 15HR, 15HR LP, 20HR, 20HR LP
- Any press with a Ø16 mm bore
- Chucks JLBM50PA, JLBM60PA, JLBM100
Specifications
- Brand: BOEHM
- Part number: JLBM53PRESSE
- Shipping weight: 0.18 kg
- Made in France
