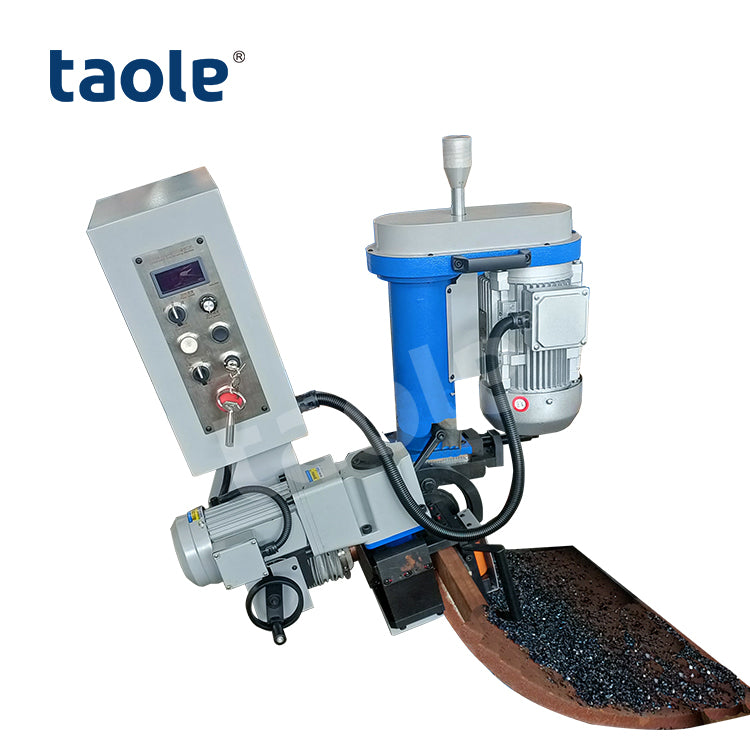

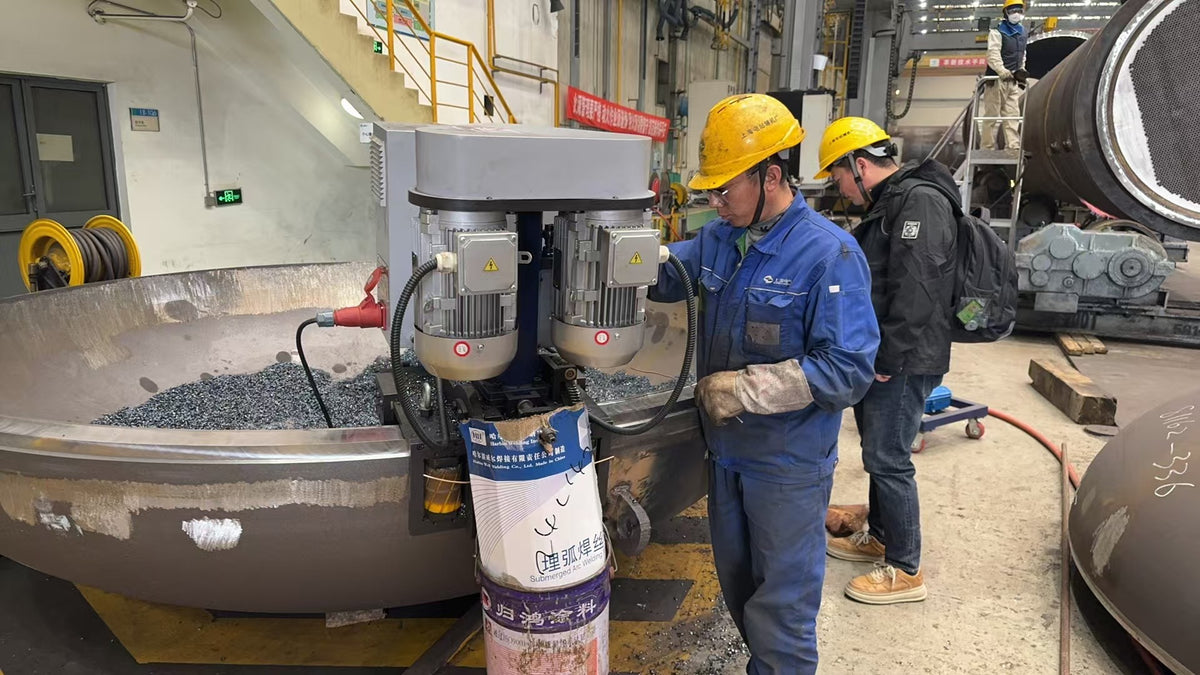

The TPM-60H bevels large pipes, vessel heads and rolled or bent plate from Ø1000 mm upwards, including longitudinal seams after bending. It mills V, U/J, K and 0° bevels on 6–65 mm walls with a cold, Ra 3.2–6.3 finish, and moves around on its own stand.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

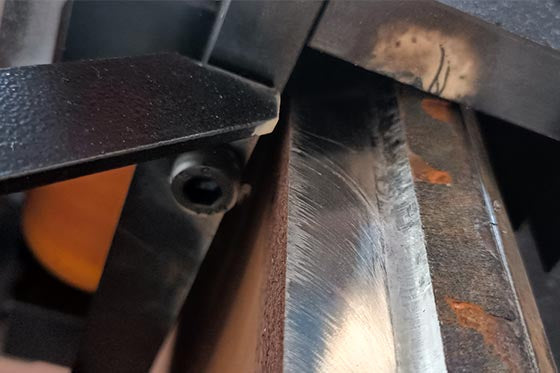

  • Cold cutting with a milling head and inserts: no grinding afterwards
  • Multiple bevel joints without special machining
  • Simple to operate and mobile on its stand
  • Surface Ra 3.2–6.3
  • Standard tooling to suit different materials

Technical data

Model TPM-60H
Power supply 380 V 50 Hz (other voltages on request)
Total power 4920 W
Spindle speed 1050 rpm
Wall thickness 6–65 mm
Pipe height ≥300 mm
Pipe / head diameter ≥Ø1000 mm
Bevel angle Top 0–90°
Single-pass bevel width 0–15 mm
Max. bevel width 0–45 mm
Cutter Ø63 mm, 6 inserts
Bevel joints V, U/J, K, 0°
Net / gross weight 170 / 210 kg
Packing size 840 × 740 × 1250 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.
