Home » TAOLE TP-BM15 Portable Bevelling Machine (up to 15 mm bevel)

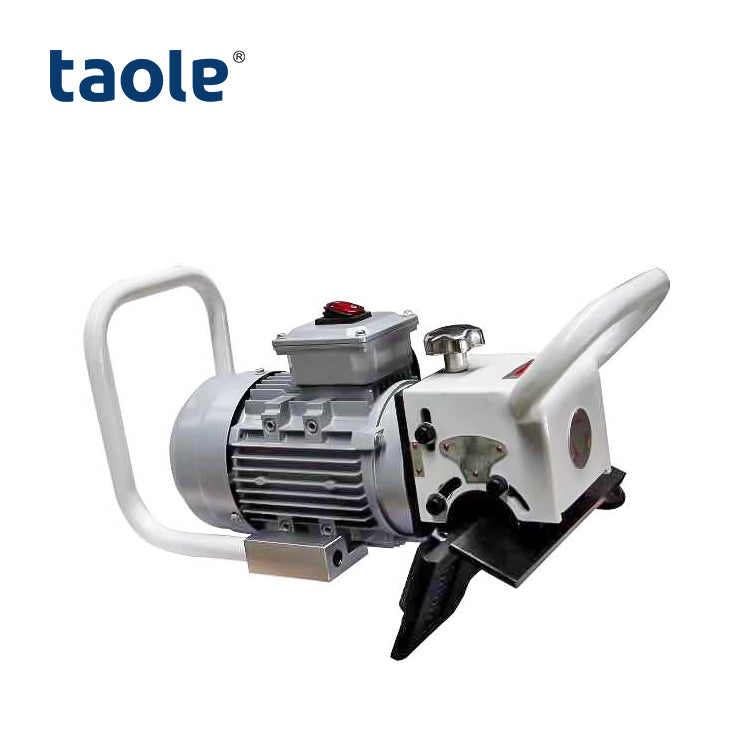

TAOLE TP-BM15 Portable Bevelling Machine
TAOLE TP-BM15 Portable Bevelling Machine video
TAOLE TP-BM15 Portable Bevelling Machine
TAOLE TP-BM15 Portable Bevelling Machine video
TAOLE

TAOLE TP-BM15 Portable Bevelling Machine (up to 15 mm bevel)

Out of stock
SKU: TP-BM15
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTP-BM15 SKUTP-BM15

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

The TP-BM15 is a quick, portable edge-bevelling solution for plate edges, inner holes and pipe ends: bevelling, chamfering, grooving and deburring at 30–60° up to 15 mm.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Cold process, no sparks
  • Bevel angle 30–60°, max. 15 mm
  • V and Y joints on carbon steel, stainless, aluminium and alloy steel
  • Carbide inserts, low running cost

Technical data

Model TP-BM15
Power supply 220–240 / 380 V 50 Hz
Power 1100 W
Spindle speed 2870 rpm
Bevel angle 30–60°
Max. bevel width 15 mm
Inserts 4–5
Net / gross weight 18 / 30 kg
Case size 570 × 300 × 320 mm

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

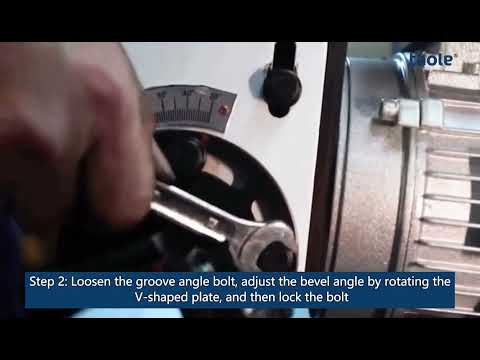

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
