TAOLE TP-B10 / TP-B15 Handheld Edge Bevelling & Deburring Machine

Out of stock
SKU: TP-B10
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTP-B10 SKUTP-B10

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Handheld bevelling and chamfering machines for plate edges, curved edges, holes and pipe ends, where a self-propelled machine cannot reach. Carbide milling inserts give a cold, spark-free Ra 3.2–6.3 bevel. Single-phase 220–240 V.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Cold process, no sparks, no heat damage to the material
  • Compact and light: 6.5 kg (TP-B10) or 8.5 kg (TP-B15)
  • Bevels V, Y, K and X joints, radius chamfers and deburring
  • Small working radius for confined spaces
  • Low running cost with standard carbide inserts

Technical data

Model TP-B10 TP-B15
Power supply 220–240 V 50 Hz 220–240 V 50 Hz
Power 2000 W 2450 W
Spindle speed 2500–7500 rpm 2400–7500 rpm
Bevel angle 30, 37.5 or 45° 20, 30, 37.5, 45, 55 or 60°
Max. bevel width 10 mm 15 mm
Inserts 4 4–5
Net / gross weight 6.5 / 8.5 kg 8.5 / 10.5 kg

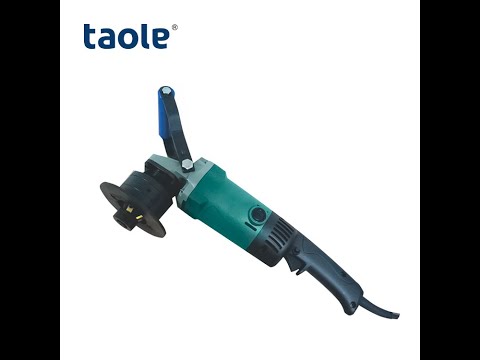

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
