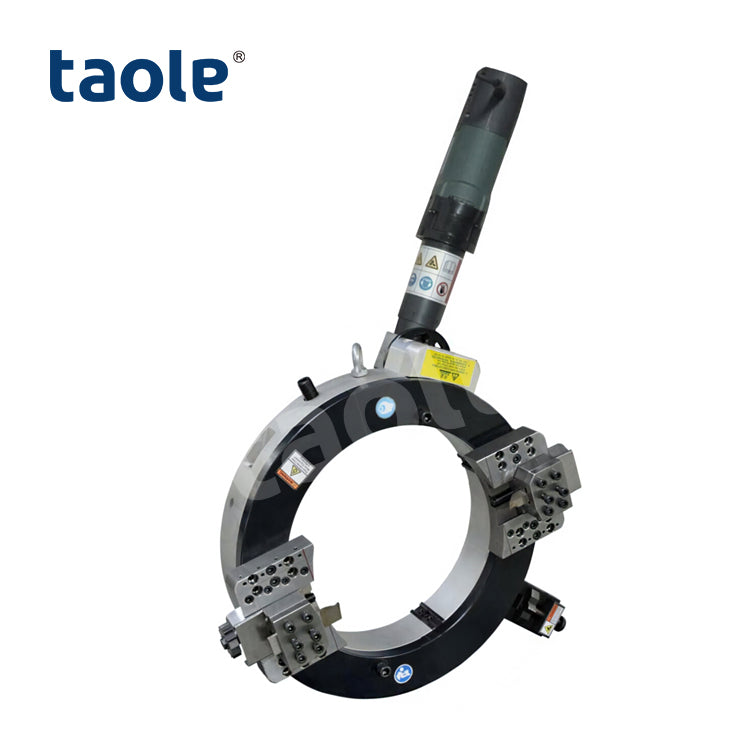

Hydraulic split-frame machines for heavy-wall pipe, cutting and bevelling walls up to 110 mm on pipe from 150 to 1230 mm OD. A hydraulic power pack with PLC control and a 50 m remote lets the operator work at a safe distance.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

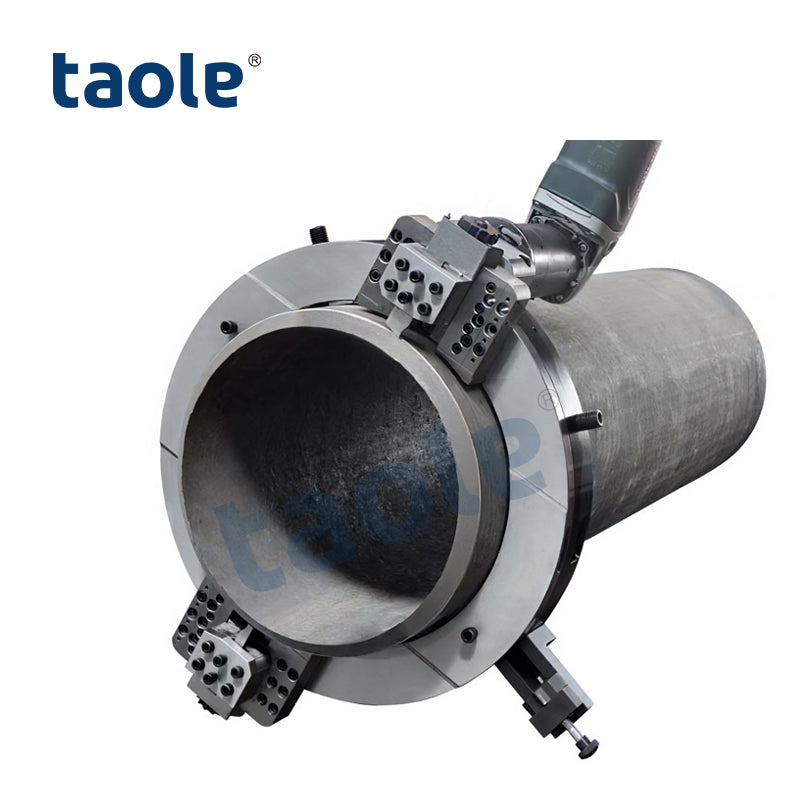

  • Split frame opens in half and clamps around in-line pipe or fittings
  • Cold cutting and bevelling at the same time: no sparks, no heat
  • Also single-point, counterbore and flange-facing operations
  • Minimal axial and radial clearance for tight sites
  • Heavy-duty: walls up to 110 mm
  • Hydraulic power pack 5.5, 7.5 or 11 kW, 380 V 3-phase, 10 MPa, 5–45 L/min stepless
  • PLC control with 50 m remote control
  • Supplied in two wooden cases (machine and power pack)

Technical data

Model Pipe OD (mm) Pipe OD (inch) Wall thickness
TOH-305 150–305 6–10″ ≤110 mm
TOH-325 168–325 6–12″ ≤110 mm
TOH-377 219–377 8–14″ ≤110 mm
TOH-426 273–426 10–16″ ≤110 mm
TOH-457 300–457 12–18″ ≤110 mm
TOH-508 355–508 14–20″ ≤110 mm
TOH-560 400–560 16–22″ ≤110 mm
TOH-610 457–610 18–24″ ≤110 mm
TOH-630 480–630 20–24″ ≤110 mm
TOH-660 508–660 20–26″ ≤110 mm
TOH-715 560–715 22–28″ ≤110 mm
TOH-762 600–762 24–30″ ≤110 mm
TOH-830 660–813 26–32″ ≤110 mm
TOH-914 762–914 30–36″ ≤110 mm
TOH-1066 914–1066 36–42″ ≤110 mm
TOH-1230 1066–1230 42–48″ ≤110 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

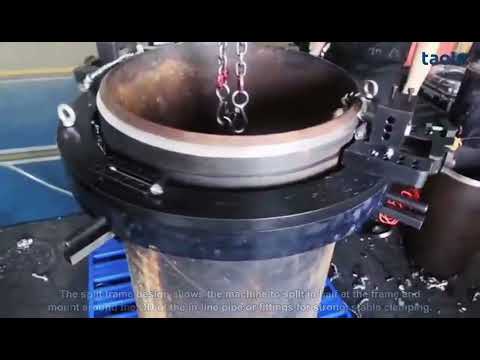

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
