TAOLE TOE Electric Split-Frame Pipe Cold Cutting & Bevelling Machine (1–48″)

Out of stock
SKU: TOE-89
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTOE-89 (Ø25–89 mm) SKUTOE-89

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

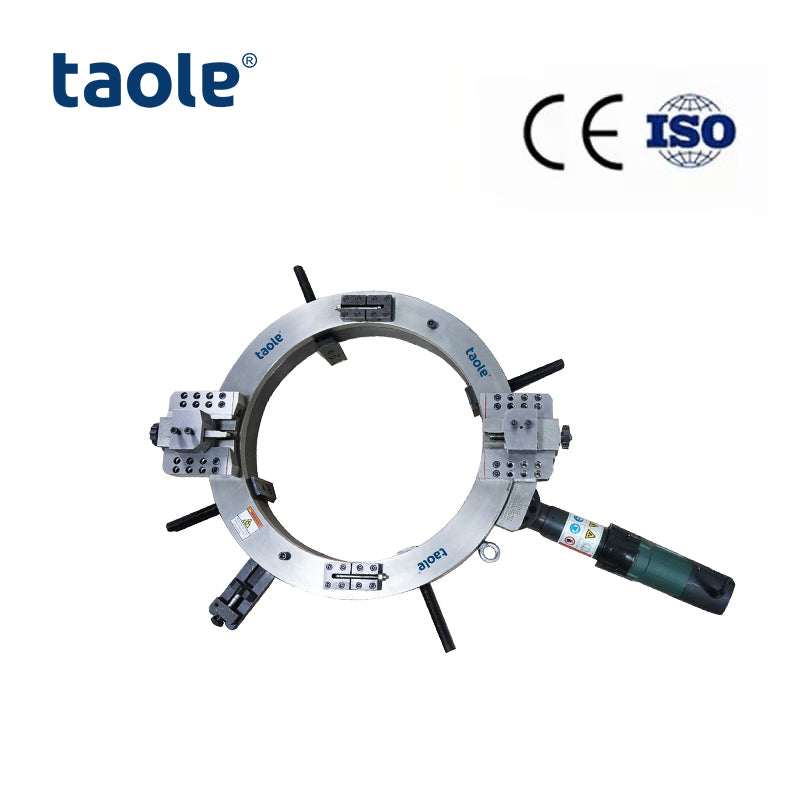

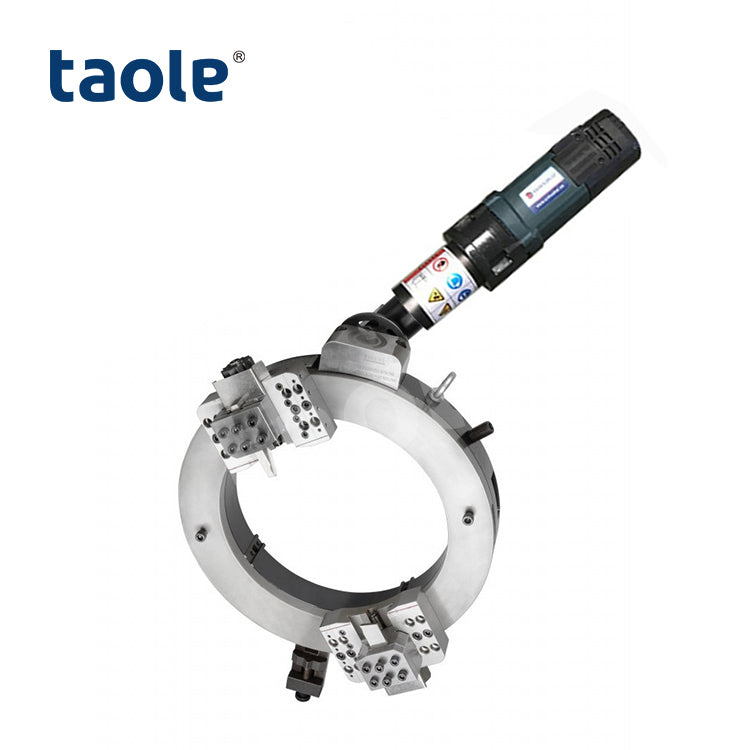

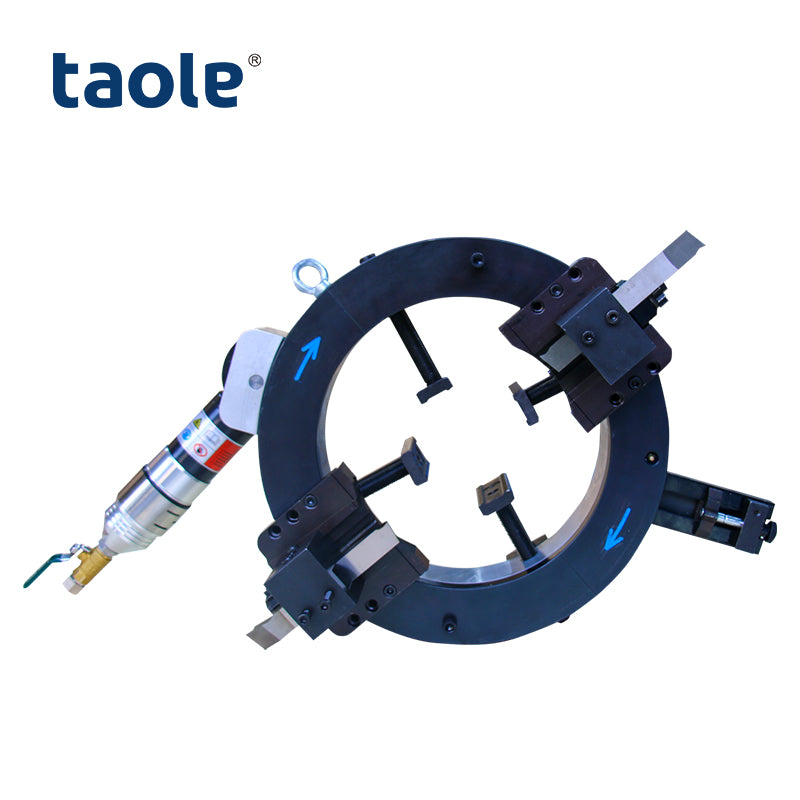

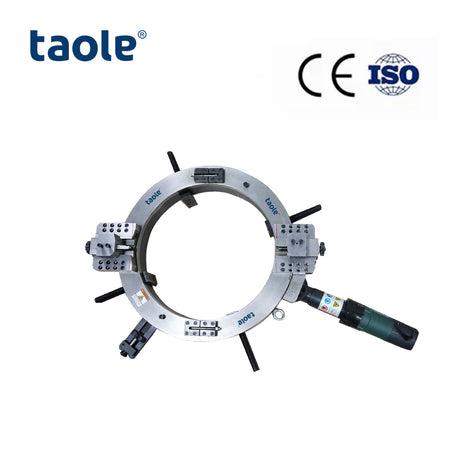

Electric OD-mounted split-frame machines that cut and bevel pipe in one operation. The frame splits in half, clamps around in-line pipe and orbits it, cold-cutting and bevelling walls up to 35 mm on pipe from 25 to 1230 mm OD. Motor 1800/2000 W, 200–240 V single-phase.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Split frame opens in half and clamps around in-line pipe or fittings

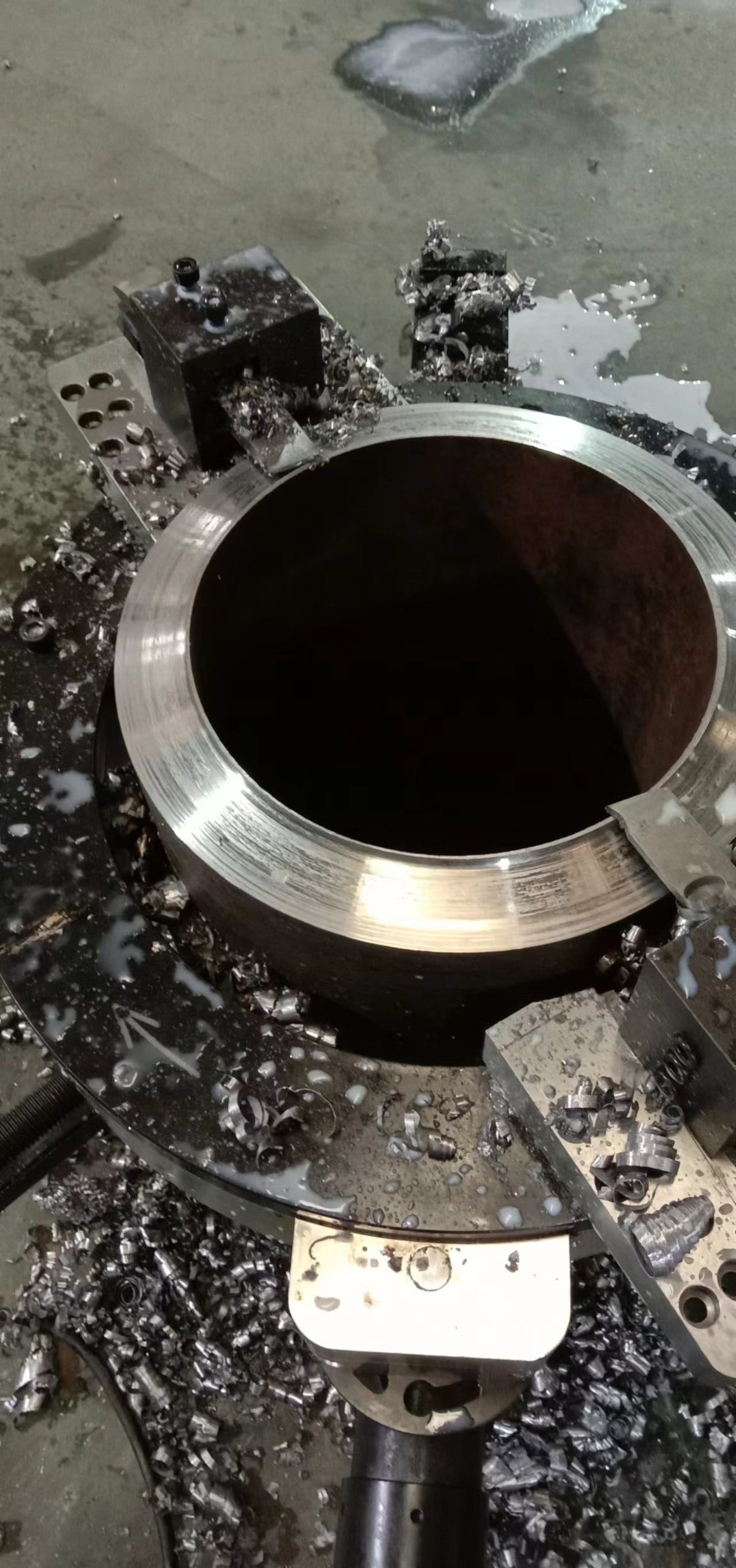

  • Cold cutting and bevelling at the same time: no sparks, no heat
  • Also single-point, counterbore and flange-facing operations
  • Minimal axial and radial clearance for tight sites
  • Light, compact and quick to set up
  • Single or double tool head; bevel angle and cutter to suit your pipe material
  • Electric drive: 1800/2000 W motor, 200–240 V 50–60 Hz, 8–10 A

Technical data

Model Pipe OD (mm) Pipe OD (inch) Wall thickness
TOE-89 25–89 1–3″ ≤35 mm
TOE-159 50–159 2–5″ ≤35 mm
TOE-168 50–168 2–6″ ≤35 mm
TOE-230 80–230 3–8″ ≤35 mm
TOE-275 125–275 5–10″ ≤35 mm
TOE-305 150–305 6–10″ ≤35 mm
TOE-325 168–325 6–12″ ≤35 mm
TOE-377 219–377 8–14″ ≤35 mm
TOE-426 273–426 10–16″ ≤35 mm
TOE-457 300–457 12–18″ ≤35 mm
TOE-508 355–508 14–20″ ≤35 mm
TOE-560 400–560 16–22″ ≤35 mm
TOE-610 457–610 18–24″ ≤35 mm
TOE-630 480–630 20–24″ ≤35 mm
TOE-660 508–660 20–26″ ≤35 mm
TOE-715 560–715 22–28″ ≤35 mm
TOE-762 600–762 24–30″ ≤35 mm
TOE-830 660–813 26–32″ ≤35 mm
TOE-914 762–914 30–36″ ≤35 mm
TOE-1066 914–1066 36–42″ ≤35 mm
TOE-1230 1066–1230 42–48″ ≤35 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks

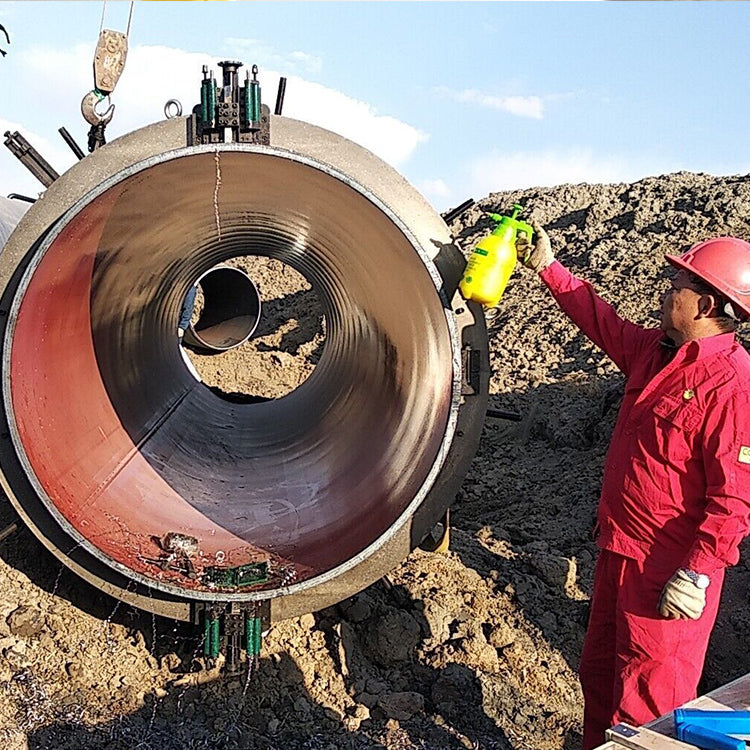

  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

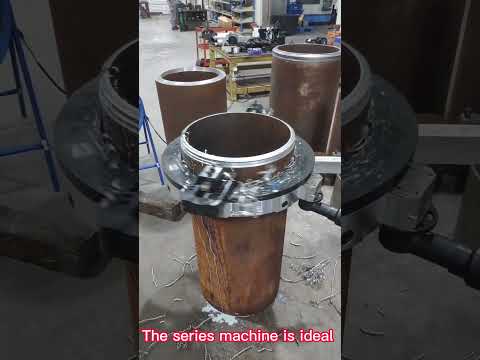

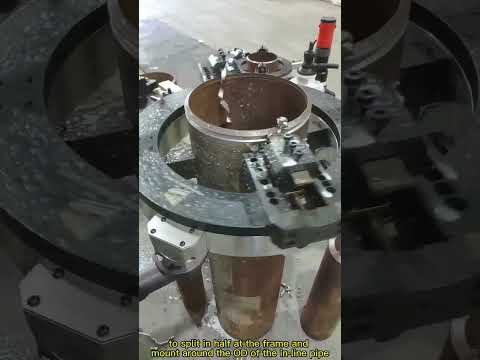

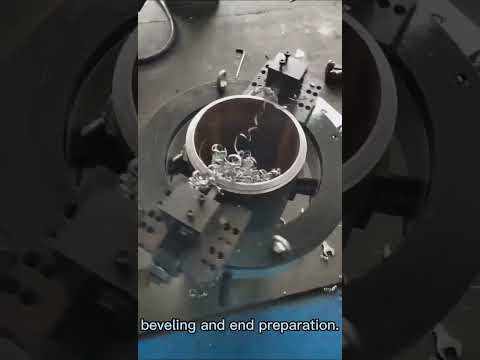

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
