TAOLE TMM-V/X CNC Edge Milling Machine (2–6 m stroke)

Out of stock
SKU: TMM-V2000
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-V2000 SKUTMM-V2000

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

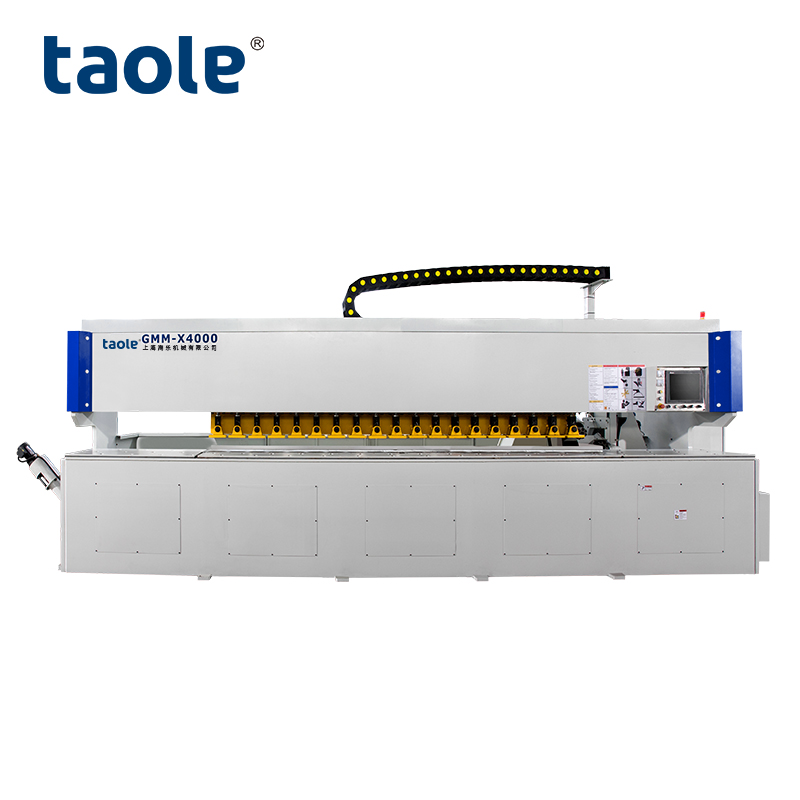

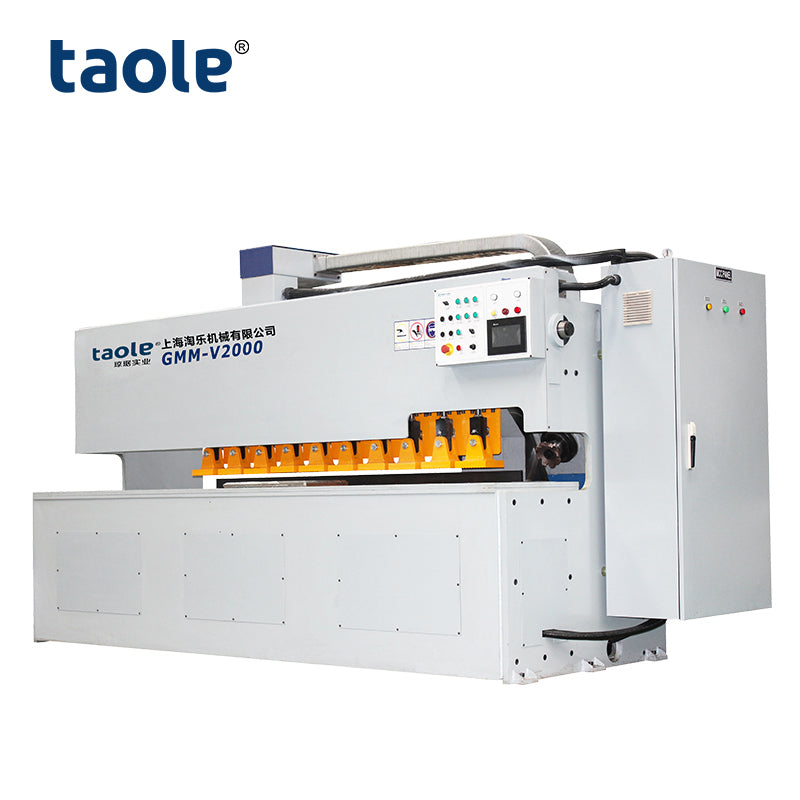

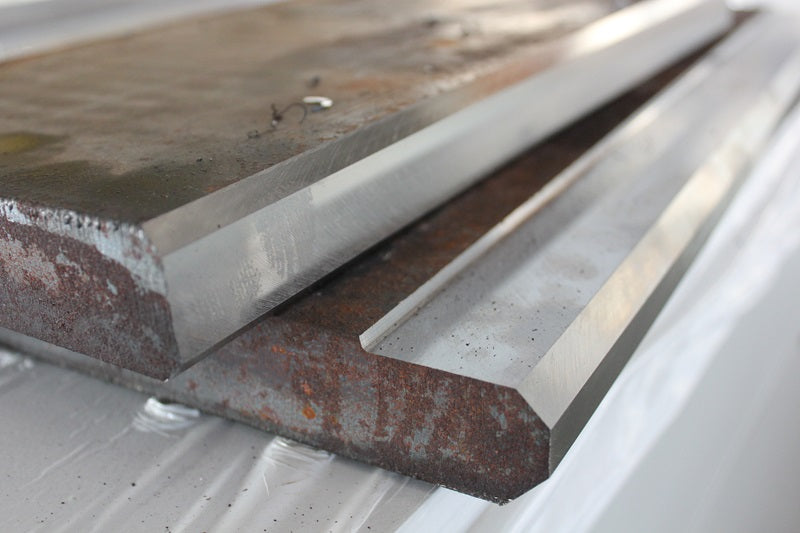

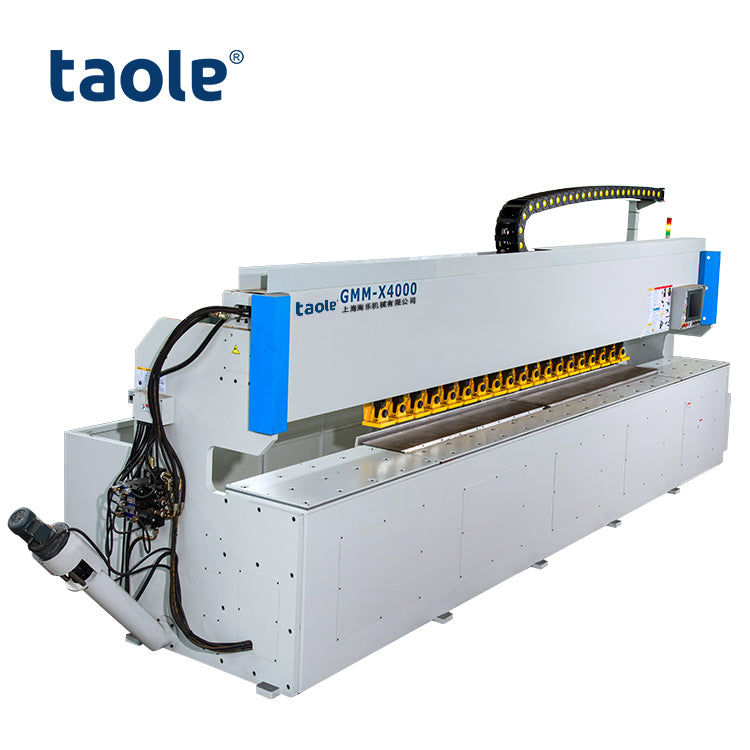

CNC edge milling machines with PLC control for production bevelling of long plates. Hydraulic pressure feet hold the plate while one (V) or two (X, top and bottom) milling heads travel the full length, giving repeatable bevels, L-edges and 0° milling on 6–80 mm plate.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • PLC control with automatic speed setting
  • V = single head; X = double head (top and bottom bevel in one pass)

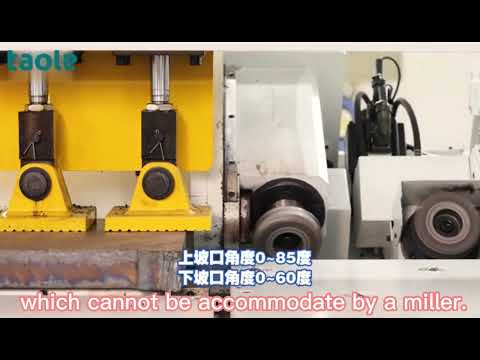

  • Top bevel 0–85° plus L 90°; bottom bevel 0–60°
  • Hydraulic pressure feet with automatic positioning
  • Independent spindle per head, Ø125 mm cutter
  • Semi-enclosed guarding, safety system optional

Technical data

Stroke 2000 mm 3000 mm 4000 mm 6000 mm
Plate thickness 6–80 mm 6–80 mm 8–80 mm 6–80 mm
Bevel angle Top 0–85° + L 90°, bottom 0–60° Top 0–85° + L 90°, bottom 0–60° Top 0–85°, bottom 0–60° Top 0–85° + L 90°, bottom 0–60°
Processing speed 0–1500 mm/min 0–1500 mm/min 0–1800 mm/min 0–2000 mm/min
Spindle per head 5.5 kW 5.5 kW 5.5 kW 7.5 kW
Cutter head Ø125 mm Ø125 mm Ø125 mm Ø125 mm
Pressure feet 12 12 14 14
Hydraulic unit 7 MPa 7 MPa 7 MPa 7 MPa
Small parts 150 × 150 mm min., right-hand start 150 × 150 mm min. 150 × 150 mm min. 150 × 150 mm min.
Total power / weight approx. 15–18 kW, 6.5–7.5 t approx. 15–18 kW, 6.5–7.5 t approx. 26 kW, 10.5 t on request
Machine size 5000 × 2100 × 2750 mm 6000 × 2100 × 2750 mm 7300 × 2300 × 2750 mm on request

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

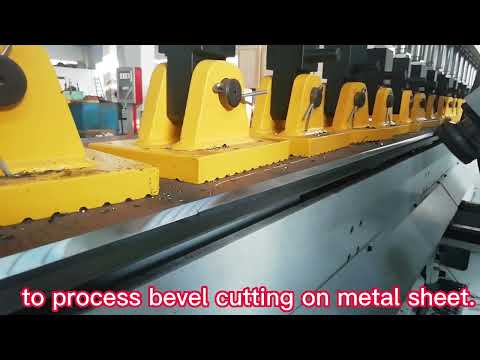

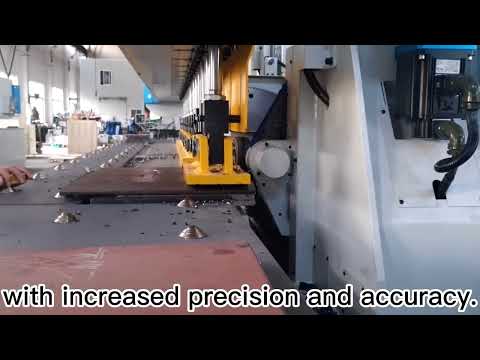

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
