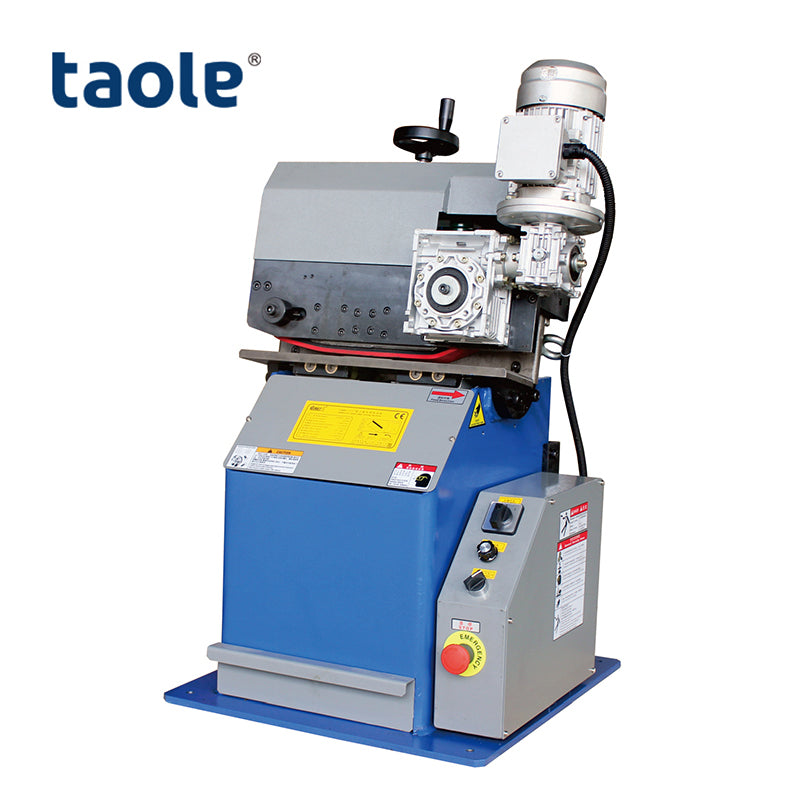

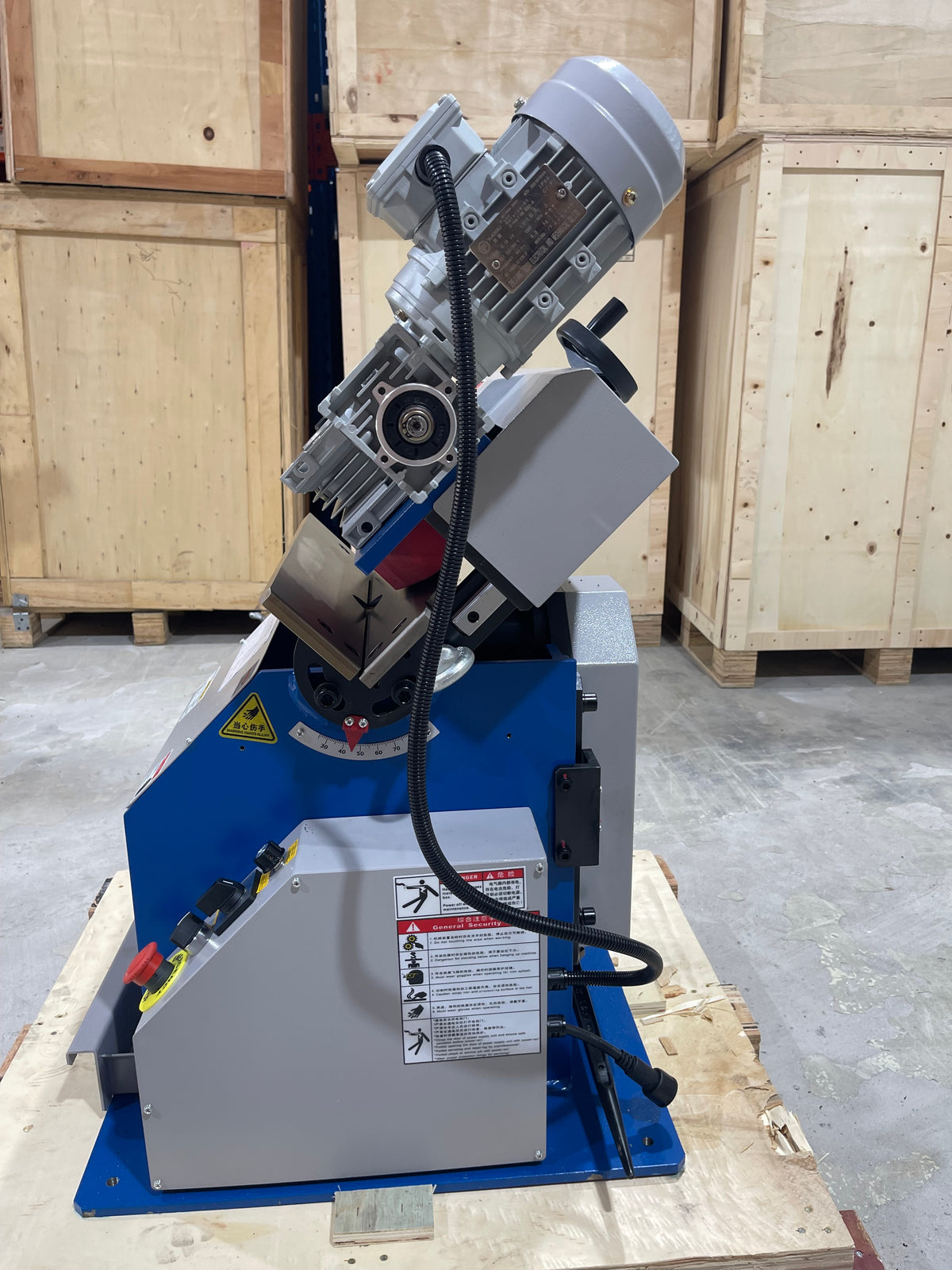

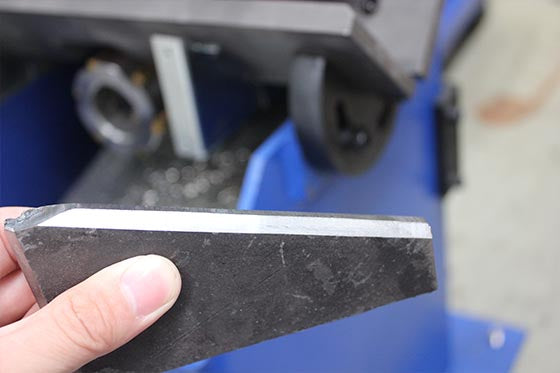

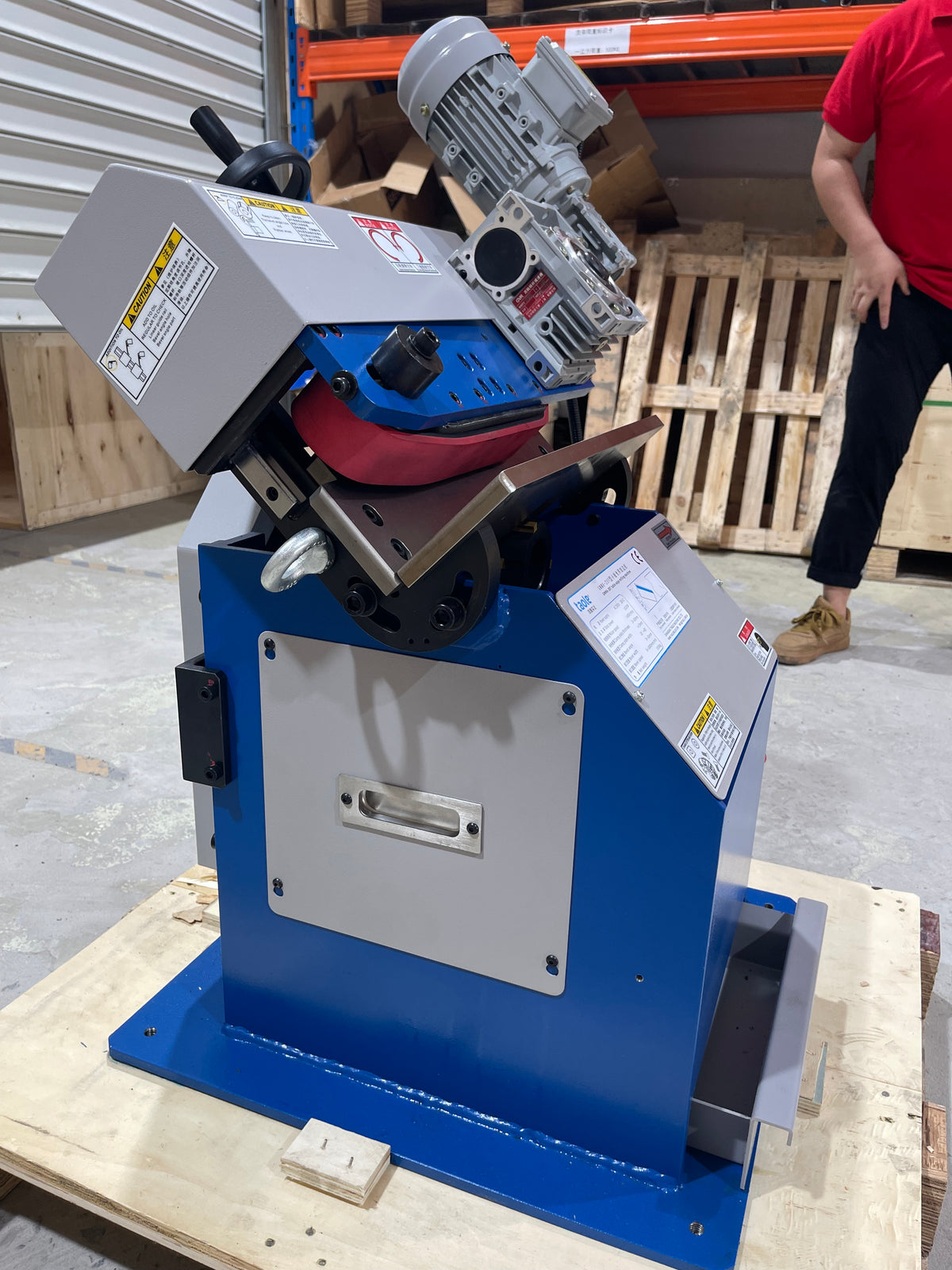

Stationary, table-type edge milling machines for bulk bevelling of small plates. Parts are fed continuously through the machine, so they suit batch production, workshops with little space and training centres. The S20T handles 3–30 mm plate at 25–80°; the heavy S30T handles 8–80 mm at 10–75°.
Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.
| Model | TMM-S20T | TMM-S30T |
|---|---|---|
| Total power | 1620 W | 4520 W |
| Spindle speed | 2000 rpm | 500–1050 rpm |
| Feed speed | 0–1000 mm/min | 0–1500 mm/min |
| Clamp thickness | 3–30 mm | 8–80 mm |
| Clamp width | >20 mm | >80 mm |
| Process length | >150 mm | >300 mm |
| Bevel angle | 25–80° | 10–75° |
| Single-pass bevel width | 0–12 mm | 0–20 mm |
| Max. bevel width | 0–25 mm | 0–70 mm |
| Cutter | Ø80 mm, 9 inserts | Ø80 mm, 6 inserts |
| Table height | 580 mm | 850–1000 mm |
| Net / gross weight | 155 / 180 kg | 850 / 920 kg |
| Packing size | 640 × 850 × 1160 mm | 1210 × 1310 × 1750 mm |
Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

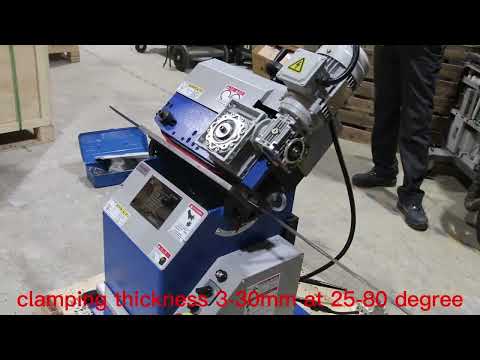

Watch the machine at work in the videos in the product gallery.
TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
