TAOLE TMM-60S Economy Plate Bevelling Machine (6–60 mm)

Out of stock
SKU: TMM-60S
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-60S SKUTMM-60S

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 255.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

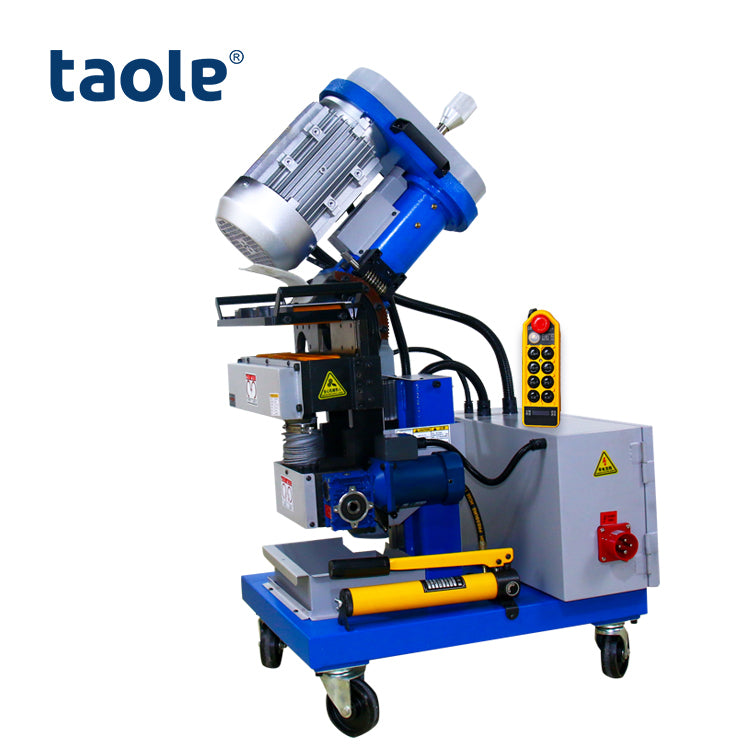

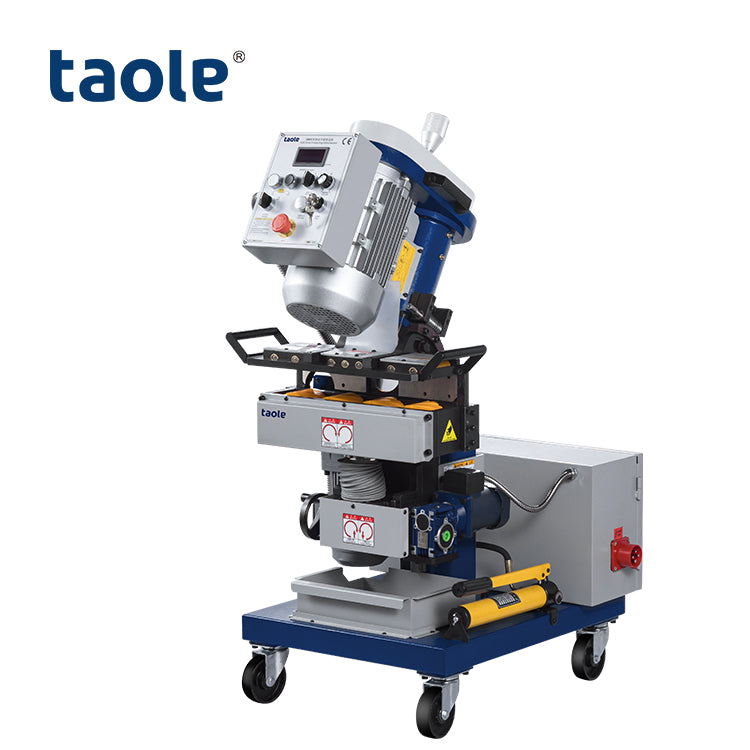

The TMM-60S is TAOLE's basic, economical plate beveller for V and Y weld preps and 0° edge milling on plates from 6 to 60 mm. It uses a standard Ø63 mm milling head with inserts, sets bevel angles from 0 to 60° and produces bevels up to 45 mm wide.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Self-propelled: the machine clamps the plate and walks along the edge on its own
  • Cold milling with a standard face-milling head and carbide inserts, so no heat-affected zone or oxide layer
  • Bevel surface Ra 3.2–6.3, ready to weld with no grinding
  • Bevel angle and depth set quickly with a scale and hand wheel
  • Automatic plate clamping and height adjustment for fast set-up
  • Castor wheels for easy moving around the shop and storage
  • Works on carbon steel, stainless steel, aluminium, alloy steel, titanium, Hardox and duplex

Technical data

Model TMM-60S TMM-60SY
Total power 3400 W 4520 W
Spindle speed 1050 rpm 1050 rpm
Feed speed 0–1500 mm/min 0–1500 mm/min
Clamp thickness 6–60 mm 6–60 mm
Plate width / length >80 / >300 mm >80 / >300 mm
Bevel angle 0–60° 0–60°
Single-pass bevel width 10–20 mm 0–20 mm
Max. bevel width 0–45 mm 0–45 mm
Cutter Ø63 mm, 6 inserts Ø63 mm, 6 inserts
Worktable height 700–760 mm 700–760 mm
Height adjustment Hydraulic Hydraulic
Control Panel Wireless remote
Net / gross weight 200 / 255 kg 200 / 255 kg
Wooden case 800 × 690 × 1140 mm 800 × 690 × 1140 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

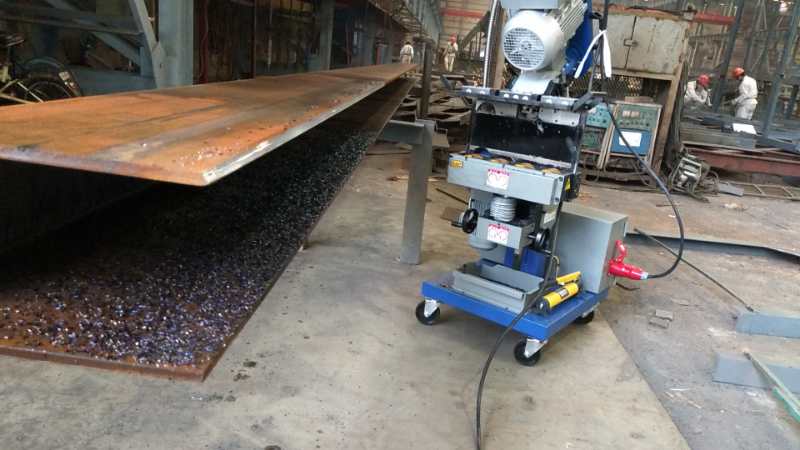

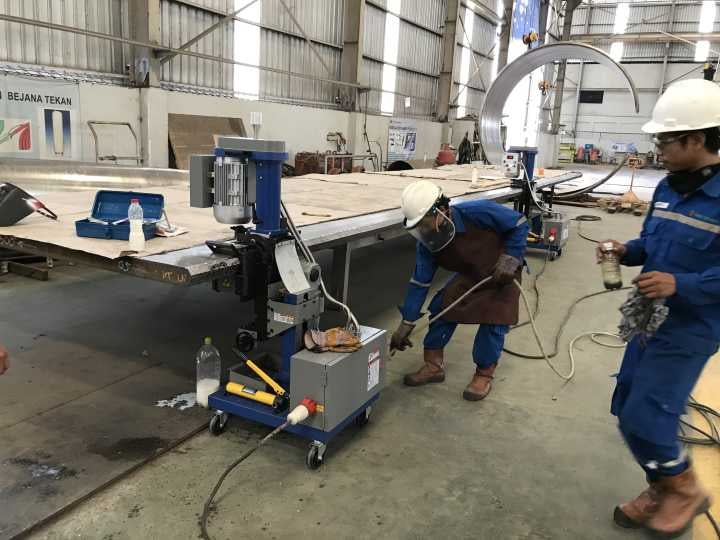

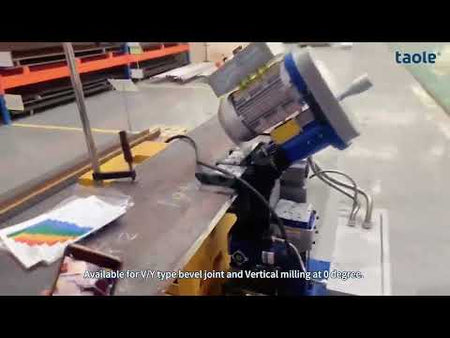

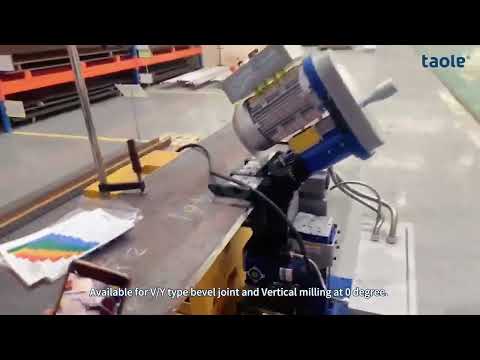

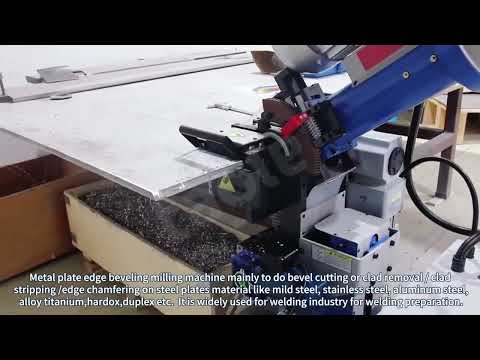

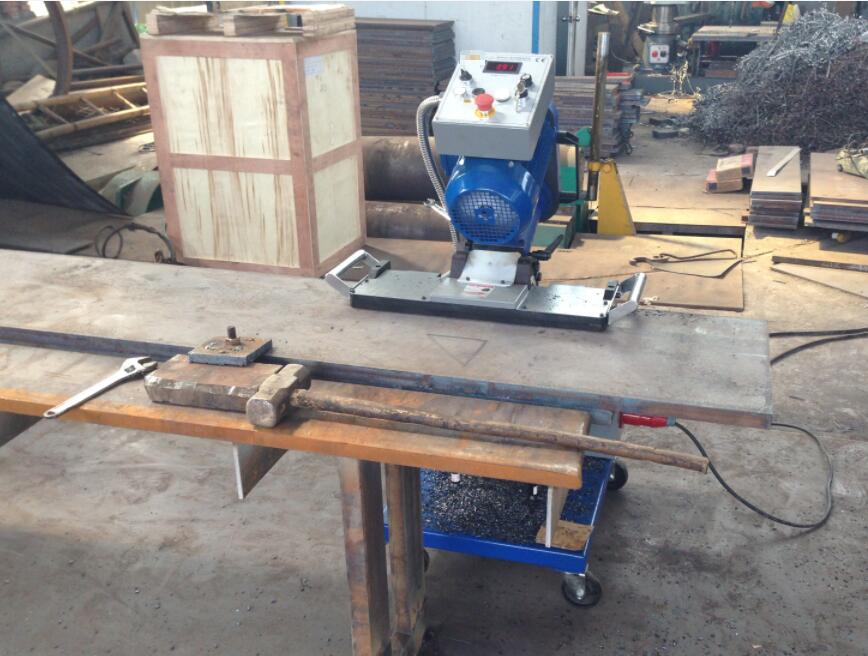

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
