TAOLE TMM-60R Turnable Plate Bevelling Machine (6–60 mm)

Out of stock
SKU: TMM-60R
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-60R SKUTMM-60R

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 300.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

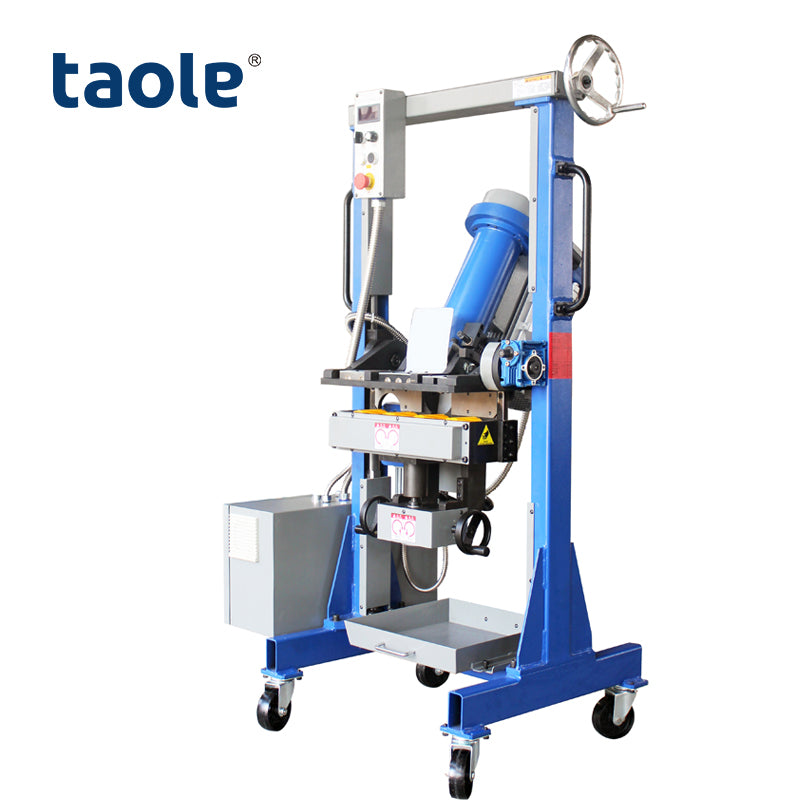

The TMM-60R is TAOLE's compact turnable plate beveller. The head turns over to cut both top and bottom bevels on plates from 6 to 60 mm, at ±10 to 60° and up to 55 mm bevel width, without turning the plate.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Turnable head for top and bottom bevels (X and K joints)
  • Self-propelled: the machine clamps the plate and walks along the edge on its own
  • Cold milling with a standard face-milling head and carbide inserts, so no heat-affected zone or oxide layer

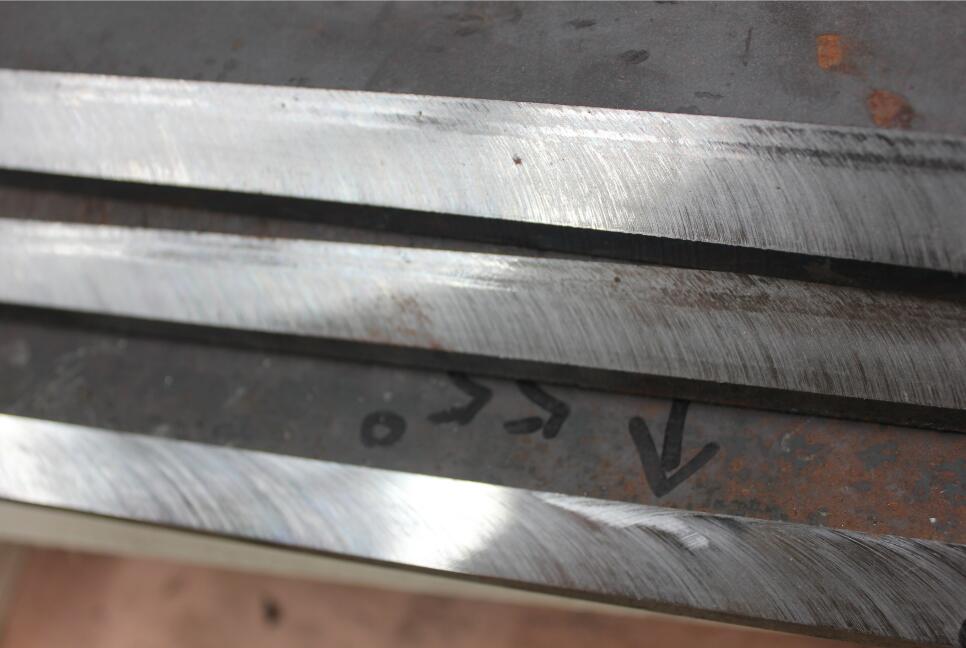

  • Bevel surface Ra 3.2–6.3, ready to weld with no grinding
  • Castor wheels for easy moving around the shop and storage
  • Works on carbon steel, stainless steel, aluminium, alloy steel, titanium, Hardox and duplex

Technical data

Model TMM-60R
Total power 3400 W
Spindle speed 1050 rpm
Feed speed 0–1500 mm/min
Clamp thickness 6–60 mm
Plate width / length >80 mm / >300 mm
Bevel angle ±10–60°
Single-pass bevel width 0–20 mm
Max. bevel width 0–55 mm
Cutter Ø63 mm, 6 inserts
Worktable height 730–760 mm
Clamping Manual
Height adjustment Hydraulic
Net / gross weight 245 / 300 kg
Wooden case 860 × 1100 × 1500 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
