TAOLE TMM-100L Heavy-Duty Plate Bevelling Machine (8–100 mm)

Out of stock
SKU: TMM-100L
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-100L SKUTMM-100L

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 480.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

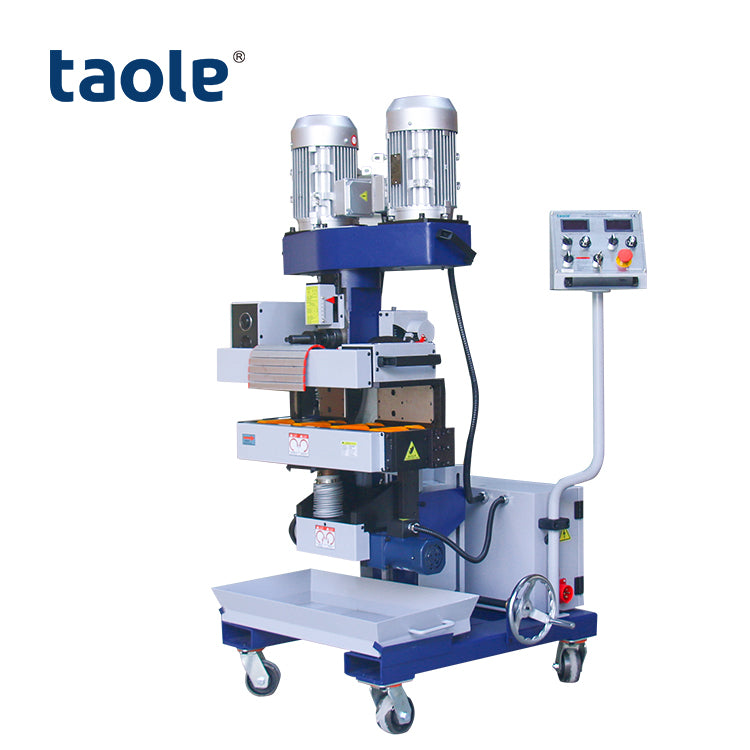

★ TAOLE best seller. The TMM-100L is TAOLE's heavy-duty automatic plate beveller for thick plate. Twin 3 kW spindle motors drive a Ø100 mm milling head that removes up to 30 mm per pass, so a 100 mm bevel takes only three to four passes. It clamps plates from 8 to 100 mm, sets any bevel angle from 0 to 90° and handles V/Y, X/K, U/J, L-edge and clad removal, with a cold-milled Ra 3.2–6.3 surface ready to weld.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Two 3000 W milling motors plus a 400 W feed drive
  • Up to 30 mm single-pass bevel width (Q235 steel); 100 mm total bevel width
  • Bevel angle 0–90°: V/Y, X/K, U/J, L-edge, 0° milling and clad removal
  • Self-propelled: the machine clamps the plate and walks along the edge on its own
  • Cold milling with a standard face-milling head and carbide inserts, so no heat-affected zone or oxide layer

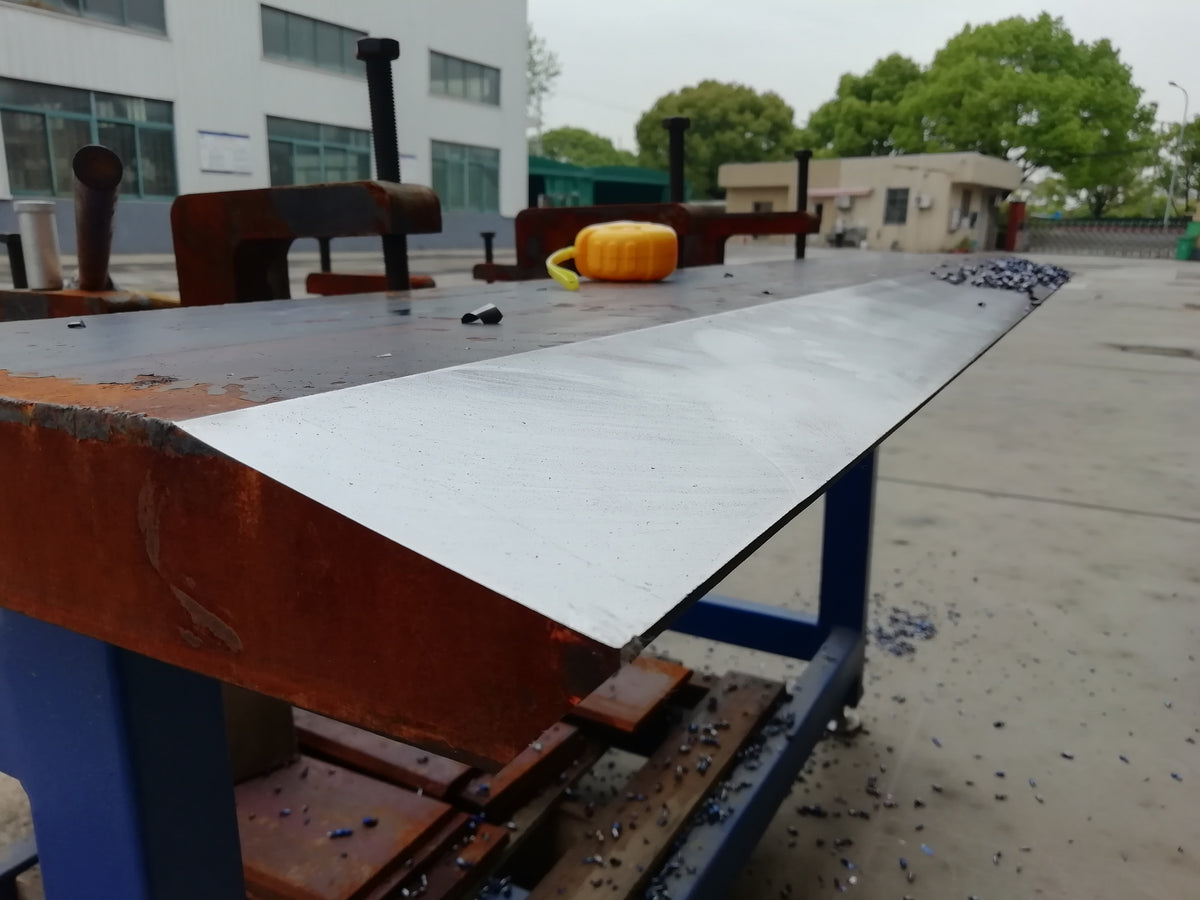

  • Bevel surface Ra 3.2–6.3, ready to weld with no grinding

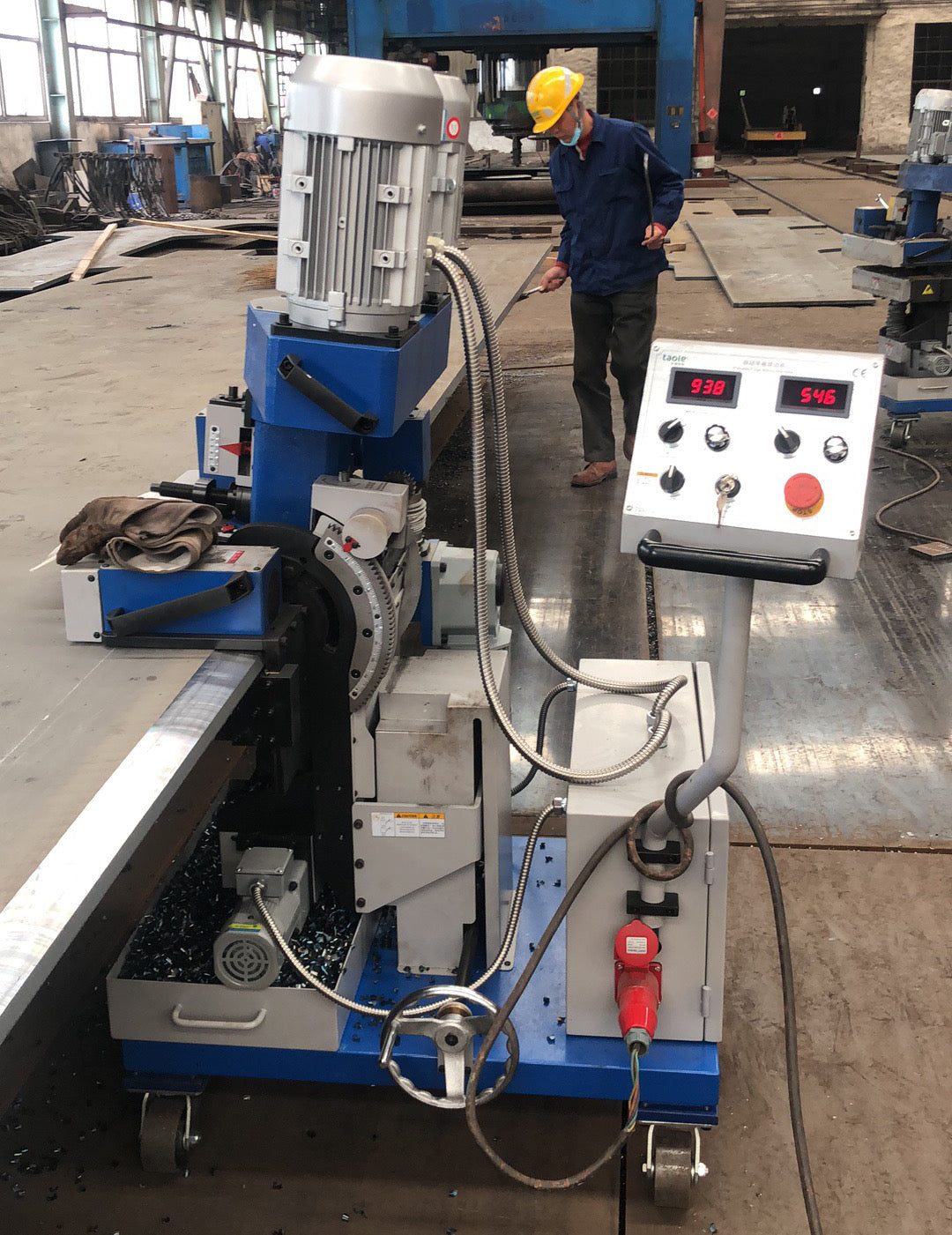

  • Control panel with spindle and feed speed displays, key switch and emergency stop
  • Large chip tray and castor wheels
  • Remote-control version (TMM-100LY) available

Technical data

Model TMM-100L
Power supply 380 V 50 Hz 3-ph (other voltages on request)
Total power 6520 W
Milling power 2 × 3000 W
Feed power 400 W
Spindle speed 500–1050 rpm
Feed speed 0–1500 mm/min (adjustable)
Clamp thickness 8–100 mm (other ranges on request)
Plate width / length >200 mm / >300 mm
Bevel angle 0–90° (adjustable)
Single-pass bevel width 0–30 mm (Q235)
Max. bevel width 100 mm
U/J milling depth (d) 20 mm
U/J milling width (e) 100 mm
Feeding depth (f) 30 mm
0° milling width (B) 100 mm
Cutter Ø100 mm milling head, 7 inserts (PDER-G)
Support / worktable height 770–870 mm
Machine footprint approx. 690 mm wide × 1235 mm high
Net / gross weight 420 kg / 480 kg
Wooden case 950 × 1180 × 1430 mm

In the box

  • TMM-100L plate bevelling machine with Ø100 mm cutter head fitted
  • 2 sets of inserts and insert screws (one fitted)
  • Hex keys, V12 hex key for the cutter head, 19 mm spanner and ratchet spanners
  • T15 insert key and tool kit
  • Industrial plug, 4 castor wheels with fixing screws
  • Operation manual, fumigation-free export wooden case

The TMM-100LY is the remote-control version with the same 100 mm capacity.

Thicker plate? Bevelling plates up to 150 mm is possible with TAOLE. Tell us your plate thickness and bevel in the quote form.

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

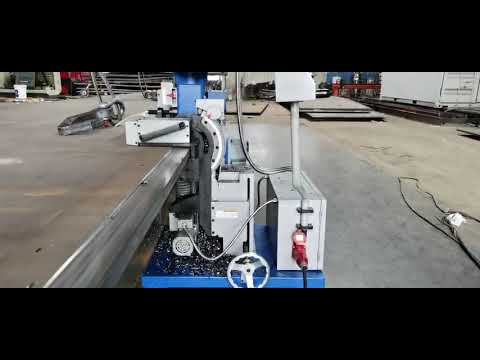

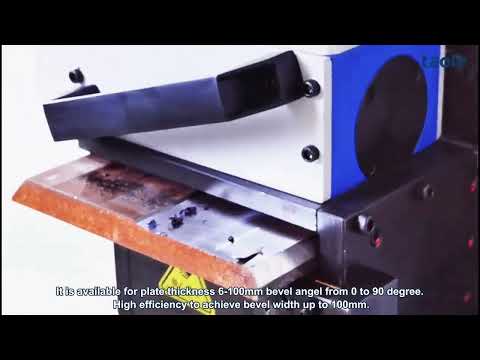

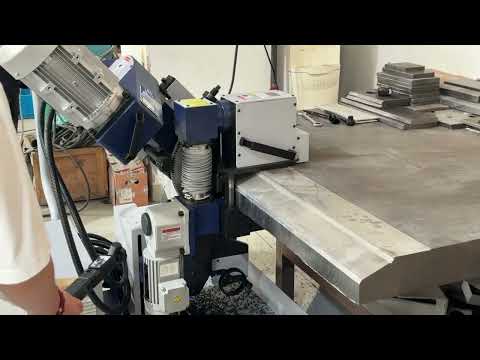

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
