TAOLE TMM-100K Double-Sided Plate Bevelling Machine (6–100 mm)

Out of stock
SKU: TMM-100K
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-100K SKUTMM-100K

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 460.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

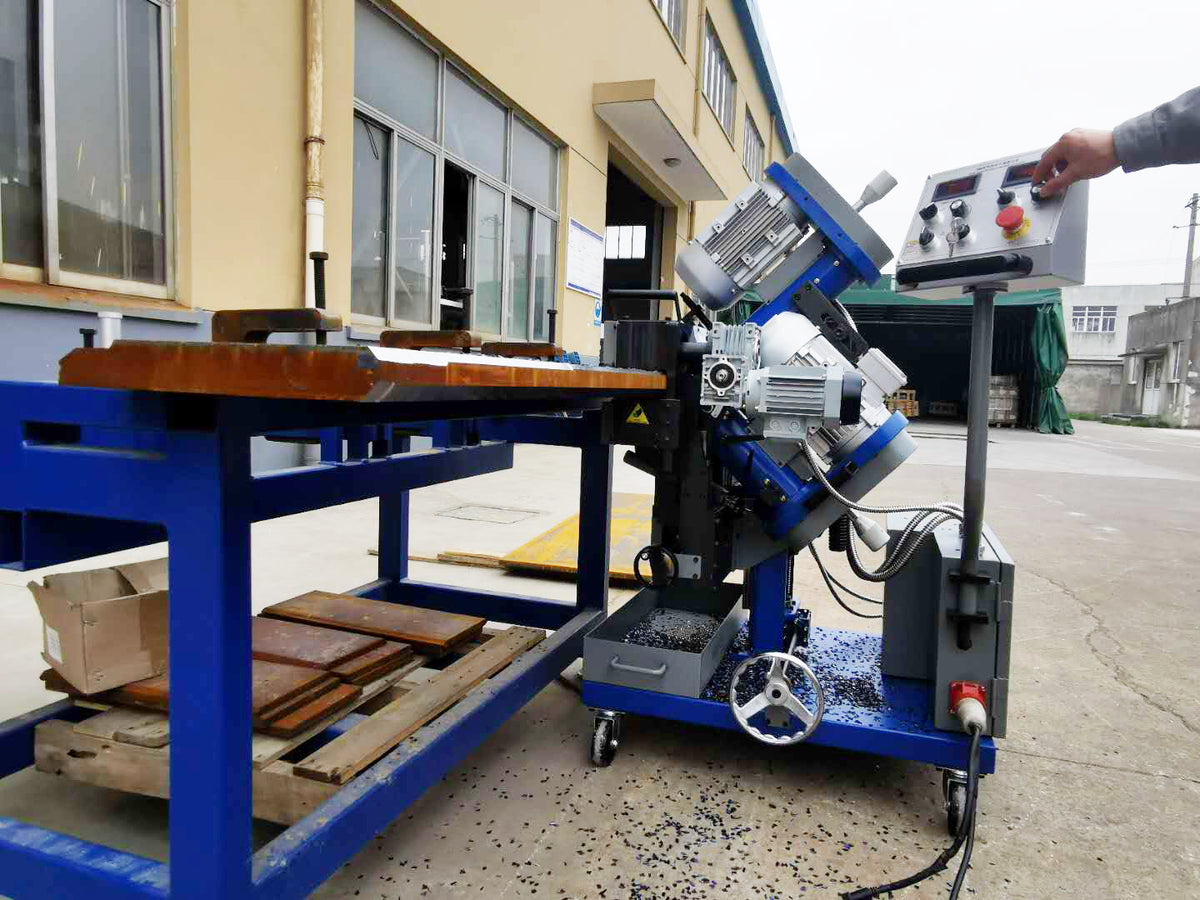

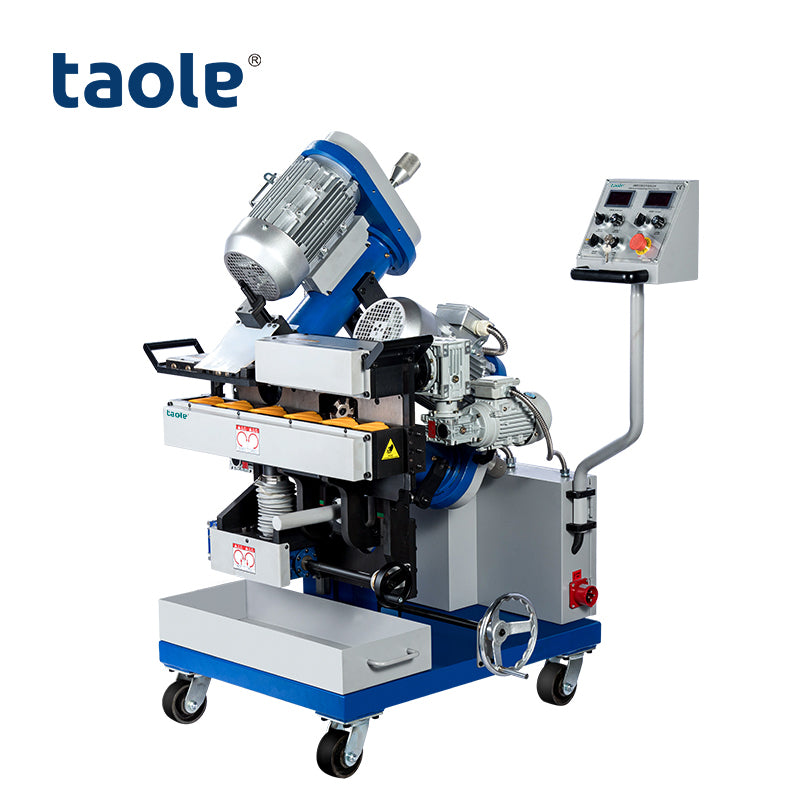

The TMM-100K has two milling heads that bevel the top and bottom edges in the same pass, like two machines working at once. It is the fast way to make X and K joints on plates from 6 to 100 mm.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Two Ø63 mm heads: top 0–90° and bottom 0 to −45° at the same time
  • Self-propelled: the machine clamps the plate and walks along the edge on its own
  • Cold milling with a standard face-milling head and carbide inserts, so no heat-affected zone or oxide layer

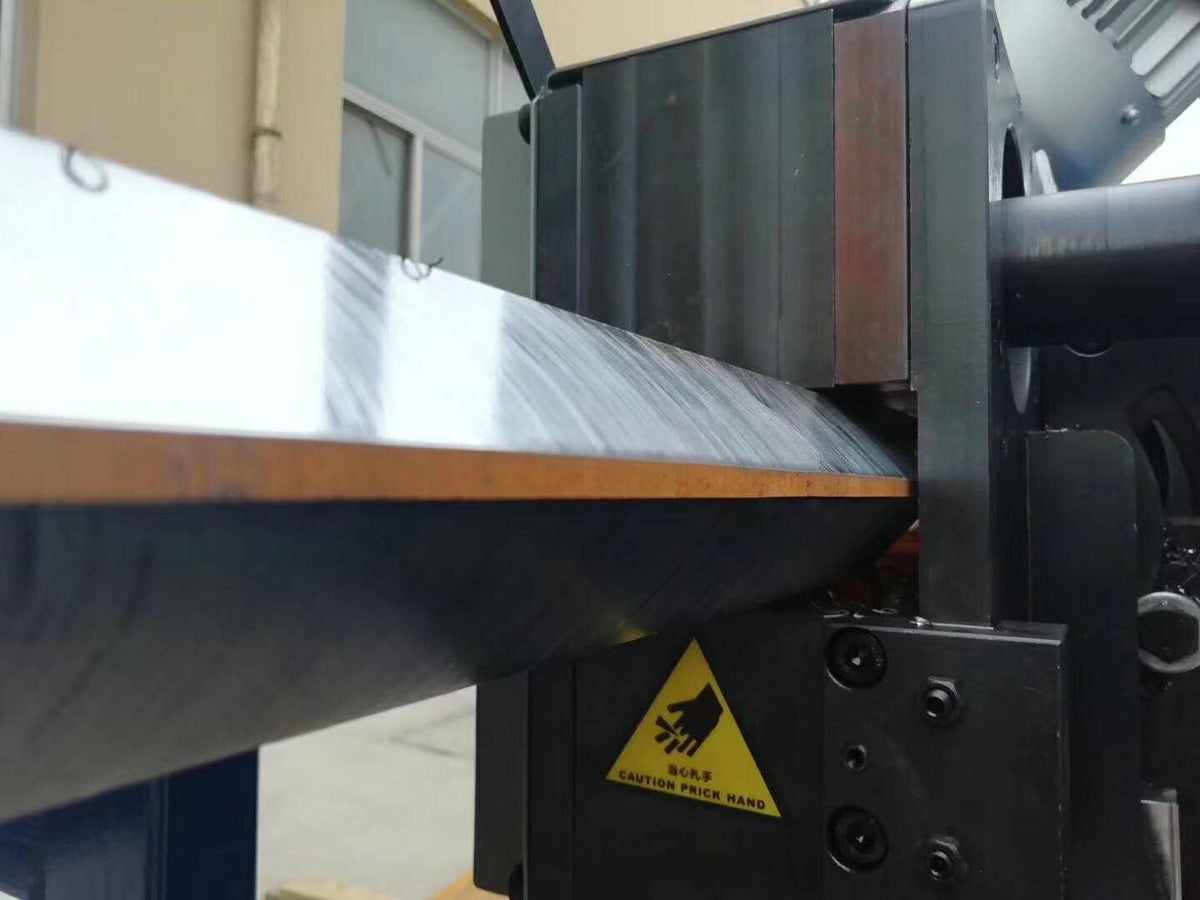

  • Bevel surface Ra 3.2–6.3, ready to weld with no grinding
  • Automatic plate clamping and height adjustment for fast set-up
  • Castor wheels for easy moving around the shop and storage

Technical data

Model TMM-100K
Total power 6480 W
Spindle speed 500–1050 rpm
Feed speed 0–1500 mm/min
Clamp thickness 6–100 mm
Plate width / length ≥100 mm / ≥400 mm
Bevel angle Top 0–90°, bottom 0 to −45°
Single-pass bevel width 0–20 mm
Bevel width Top 0–60 mm, bottom 0–45 mm
Cutters 2 × Ø63 mm, 2 × 6 inserts
Worktable height 810–870 mm
Net / gross weight 395 / 460 kg
Wooden case 950 × 1180 × 1430 mm

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

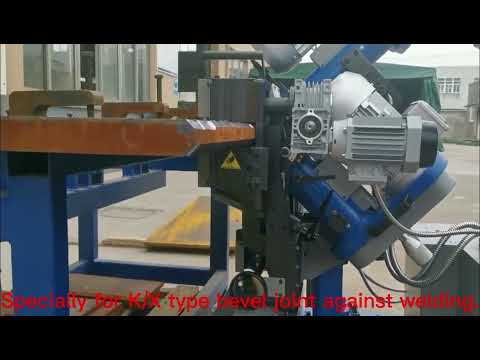

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
