Home » TAOLE TMM-100D Double-Head Plate Bevelling Machine

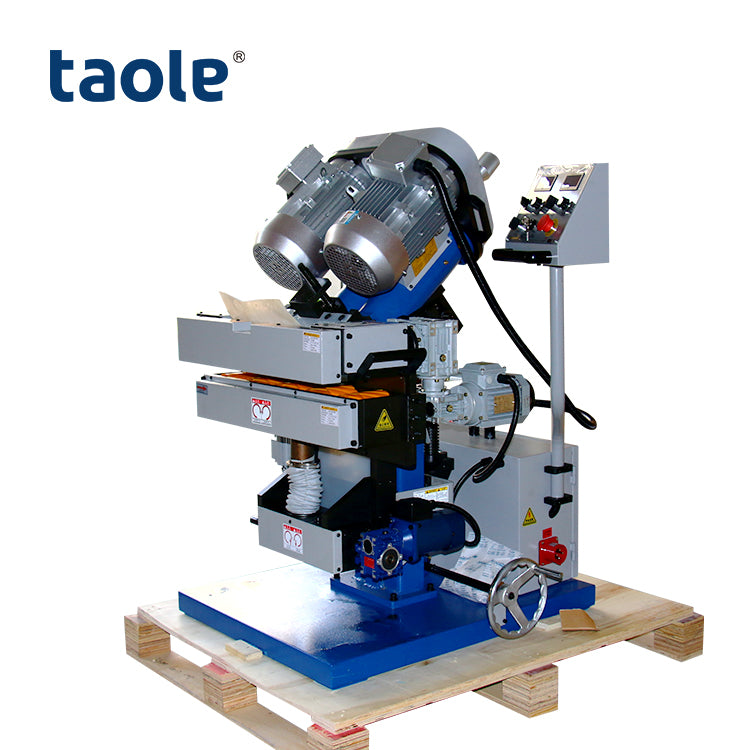

TAOLE TMM-100D Double-Head Plate Bevelling Machine
TAOLE TMM-100D Double-Head Plate Bevelling Machine video
TAOLE TMM-100D Double-Head Plate Bevelling Machine
TAOLE TMM-100D Double-Head Plate Bevelling Machine video
TAOLE

TAOLE TMM-100D Double-Head Plate Bevelling Machine

Out of stock
SKU: TMM-100D
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTMM-100D SKUTMM-100D

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

The TMM-100D is a high-output plate beveller with two milling heads for heavy plate weld preparation. It cold-mills V/Y, X/K, U/J and L bevels and clad removal at 0.4–1.2 m/min with an Ra 3.2–6.3 finish.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Two milling heads for higher output on heavy plate
  • Self-propelled: the machine clamps the plate and walks along the edge on its own
  • Cold milling with a standard face-milling head and carbide inserts, so no heat-affected zone or oxide layer
  • Bevel surface Ra 3.2–6.3, ready to weld with no grinding
  • Bevel angle and depth set quickly with a scale and hand wheel
  • Automatic plate clamping and height adjustment for fast set-up
  • Castor wheels for easy moving around the shop and storage
  • Works on carbon steel, stainless steel, aluminium, alloy steel, titanium, Hardox and duplex

Technical data

Full technical data for the TMM-100D is supplied with your quotation. Tell us your plate thickness range, bevel type and angle.

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

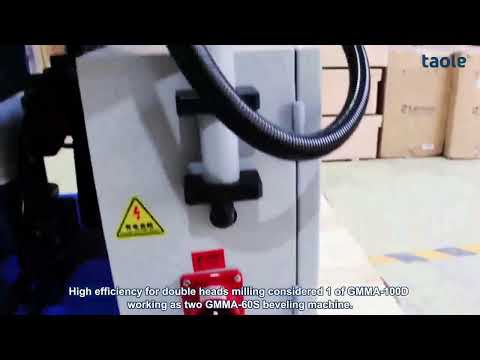

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
