TAOLE TIP Pneumatic ID-Mounted Pipe Bevelling Machine (Ø18–850 mm bore)

Out of stock
SKU: TIP-30
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTIP-30 (Ø18–30 mm) SKUTIP-30

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

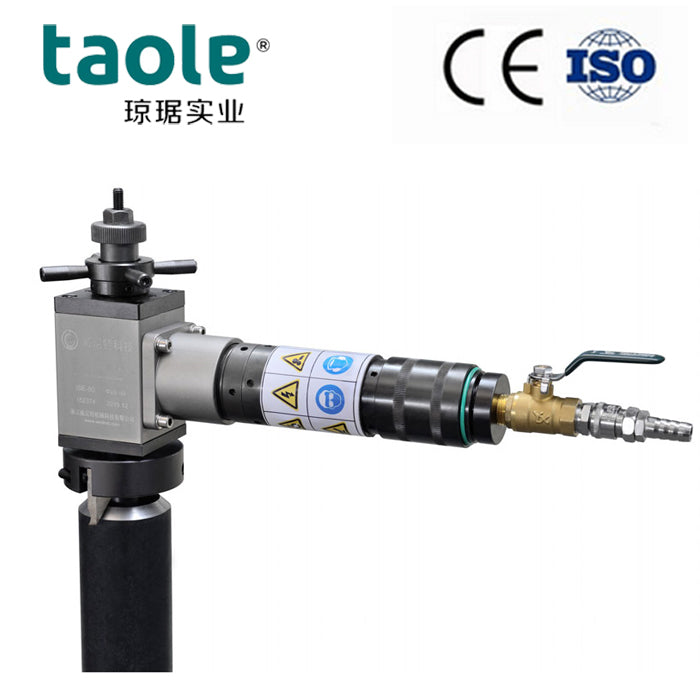

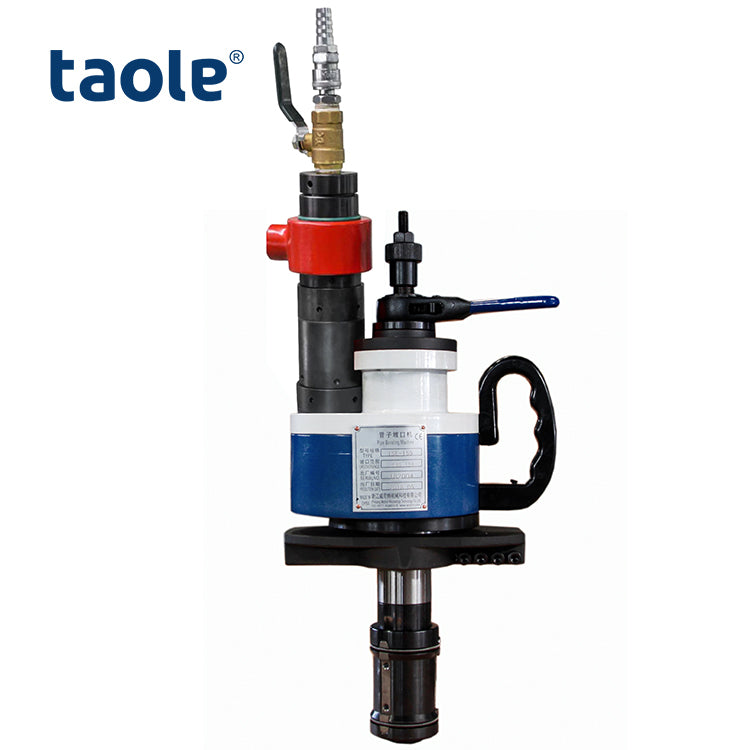

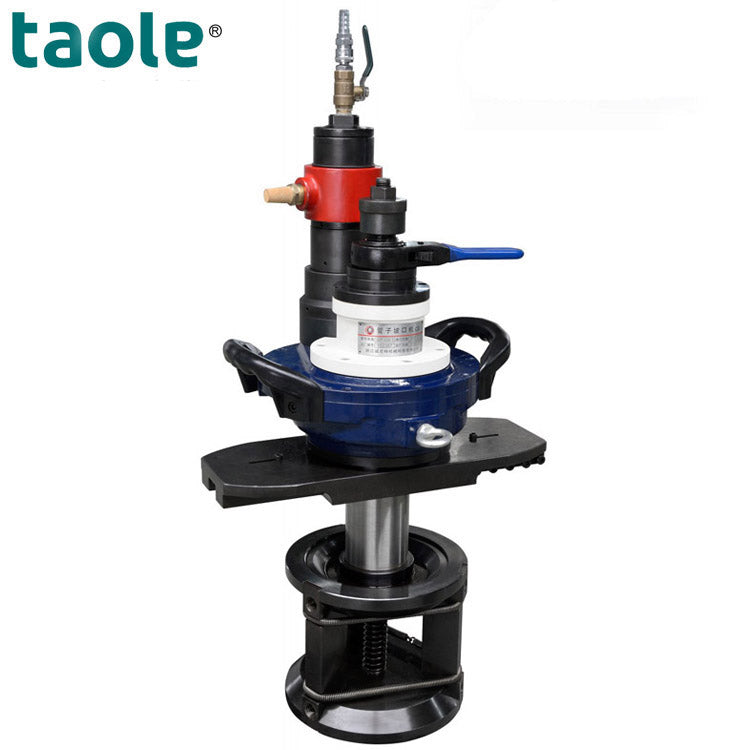

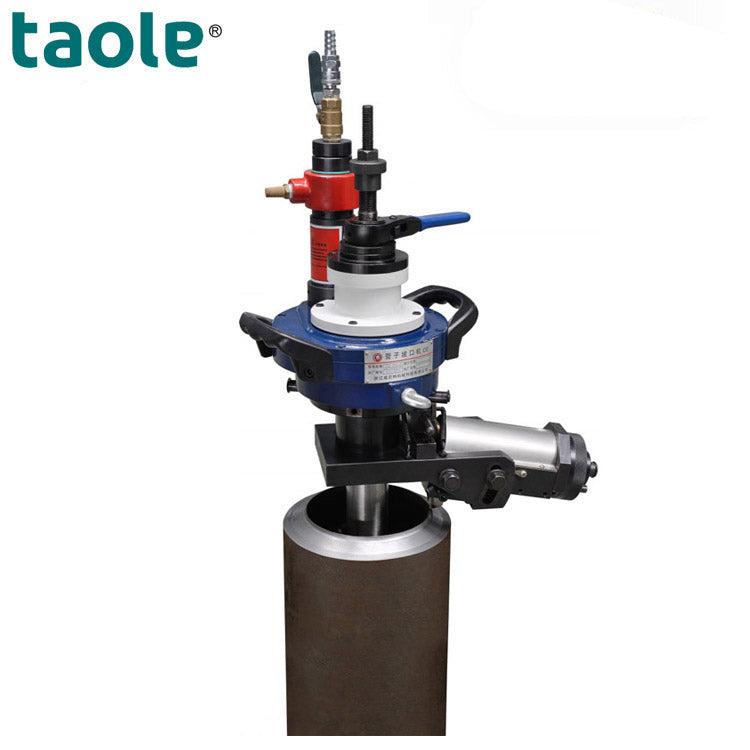

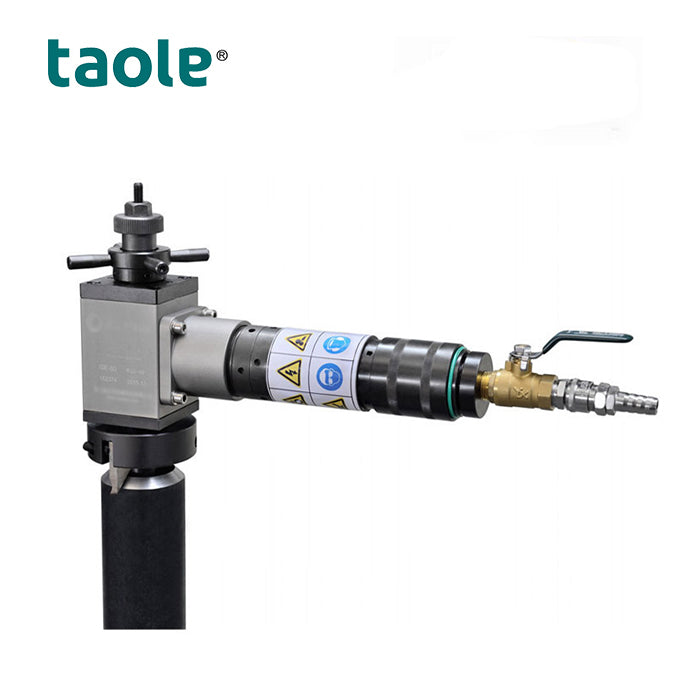

Air-driven ID-mounted pipe end prep machines (also known as the ISP series) for sites where electric tools are not allowed. They face and bevel pipe ends, nozzles and flanges on bores from 18 to 850 mm, with quick-set light-duty (-1) and heavy-duty (-2) versions.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

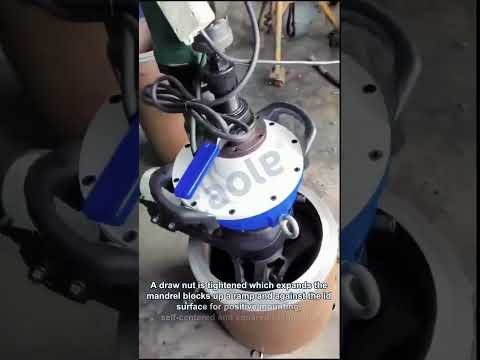

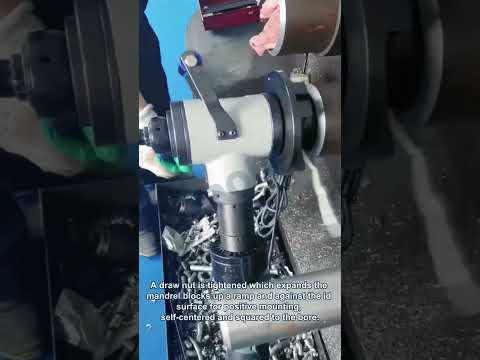

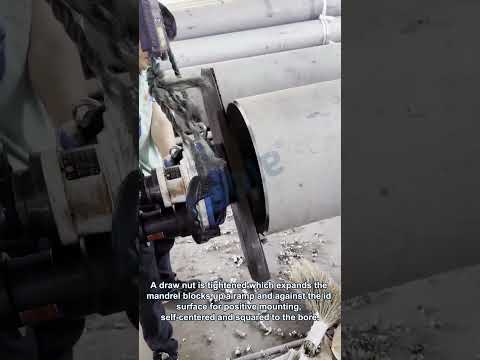

  • Mounts in the pipe bore: a draw nut expands the mandrel blocks so the machine is self-centred and square to the bore
  • T-shaped design for minimal radial working space
  • Faces, bevels and counterbores pipe ends, vessel nozzles and flanges
  • Light and portable for site work
  • Carbon steel, stainless steel and alloy steel pipe
  • -1 models: light duty, walls to 20 mm; -2 models: heavy duty, walls to 75 mm
  • Pneumatic drive: safe in oil, gas and petrochemical areas

Technical data

Model Pipe range (mm) Pipe range (inch) Wall thickness (mm) Rotation speed Air pressure / consumption (L/min)
TIP-30 18–30 ½–¾″ ≤15 60 rpm 0.6 MPa / 900
TIP-80 28–89 1–3″ ≤15 50 rpm 0.6 MPa / 900
TIP-120 40–120 1¼–4″ ≤15 38 rpm 0.6 MPa / 900
TIP-159 65–159 2½–5″ ≤20 35 rpm 0.6 MPa / 1000
TIP-252-1 80–273 3–10″ ≤20 16 rpm 0.6 MPa / 1000
TIP-252-2 80–273 3–10″ ≤75 16 rpm 0.6 MPa / 1000
TIP-352-1 150–356 6–14″ ≤20 14 rpm 0.7 MPa / 1200
TIP-352-2 150–356 6–14″ ≤75 14 rpm 0.7 MPa / 1200
TIP-426-1 273–426 10–16″ ≤20 12 rpm 0.7 MPa / 1500
TIP-426-2 273–426 10–16″ ≤75 12 rpm 0.7 MPa / 1500
TIP-630-1 300–630 12–24″ ≤20 10 rpm 0.7 MPa / 1500
TIP-630-2 300–630 12–24″ ≤75 10 rpm 0.7 MPa / 1500
TIP-850-1 490–850 24–34″ ≤20 9 rpm 0.8 MPa / 1500
TIP-850-2 490–850 24–34″ ≤75 9 rpm 0.8 MPa / 1500

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

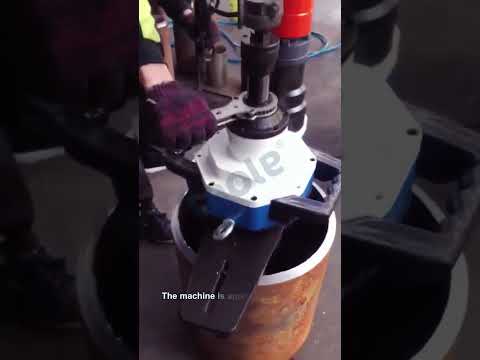

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
