TAOLE TDM Slag Removal & Plate Deburring Machine (650–1200 mm wide)

Out of stock
SKU: TDM-65S
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTDM-65S single side SKUTDM-65S

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 1400.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

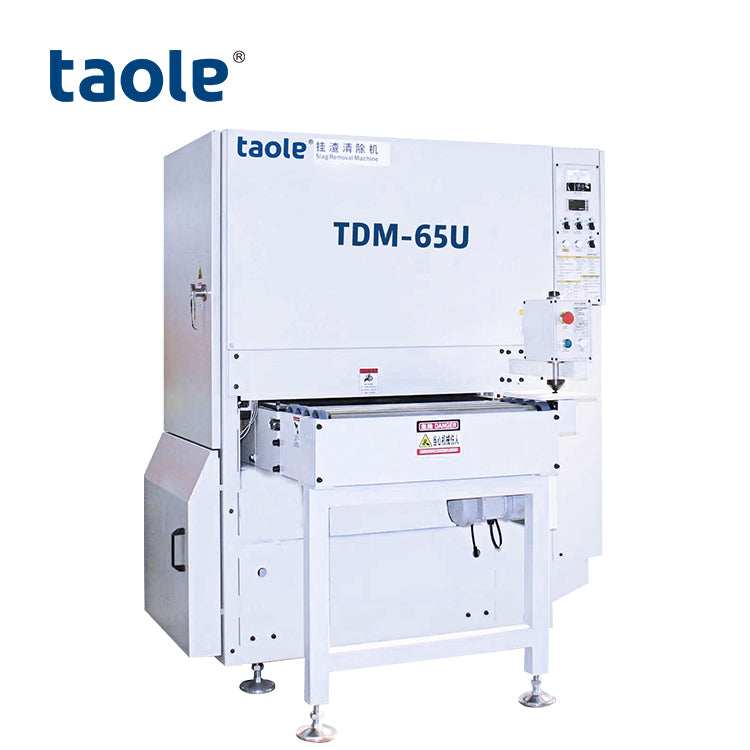

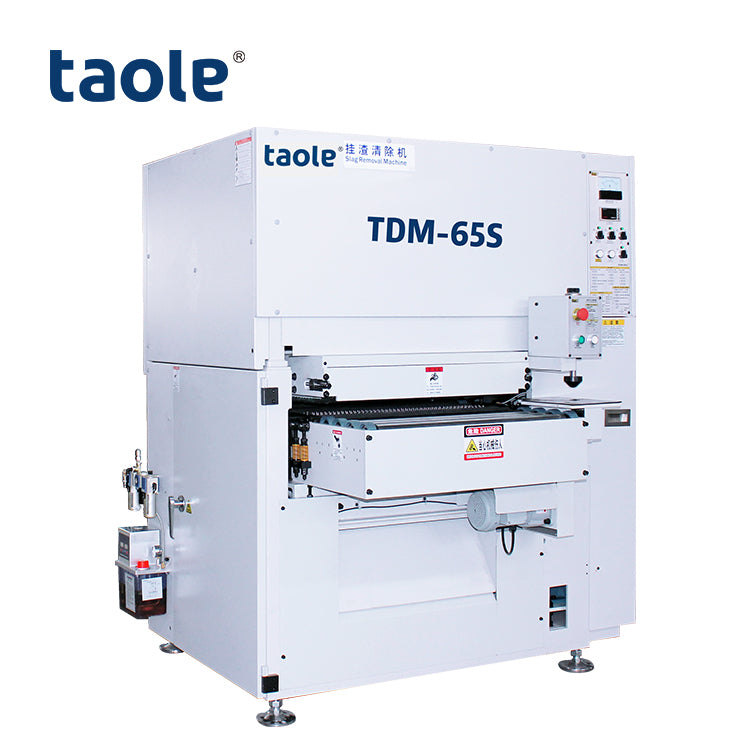

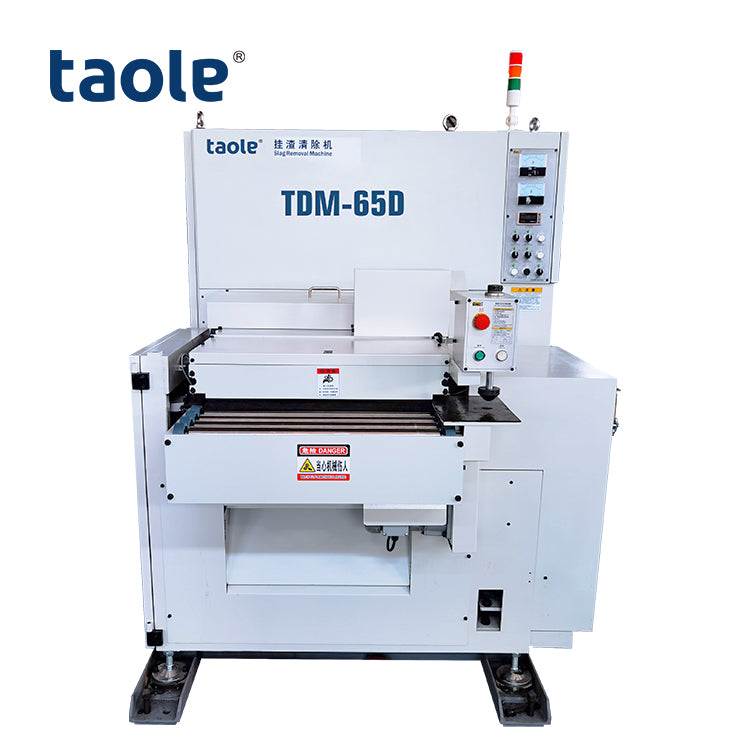

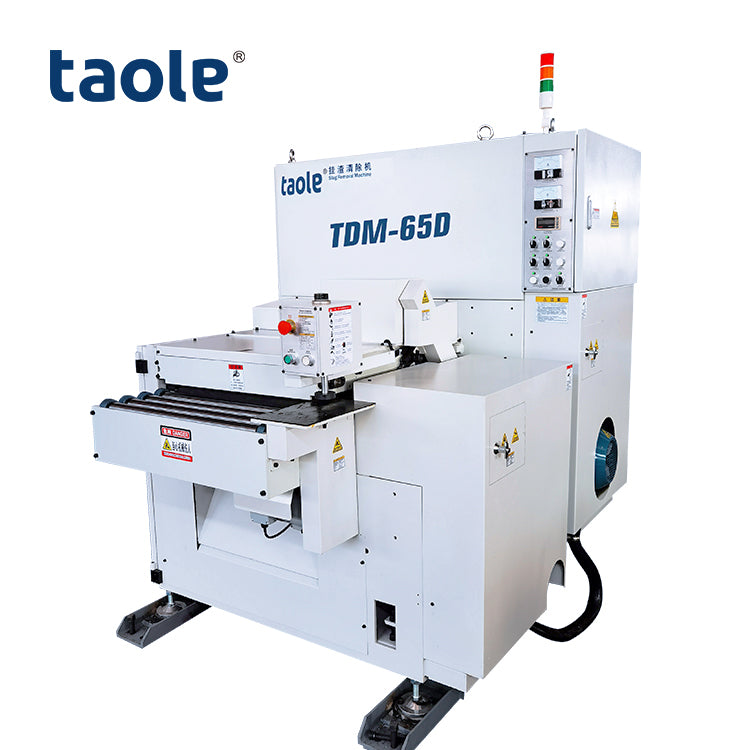

Heavy slag and burr removal for flame, plasma and laser-cut plate. Parts ride through on a conveyor while an abrasive belt cleans the bottom face (TDM-65S) or both faces in one pass (TDM-65U, TDM-65D), including round holes and curved profiles. One machine can save four to six people's work.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

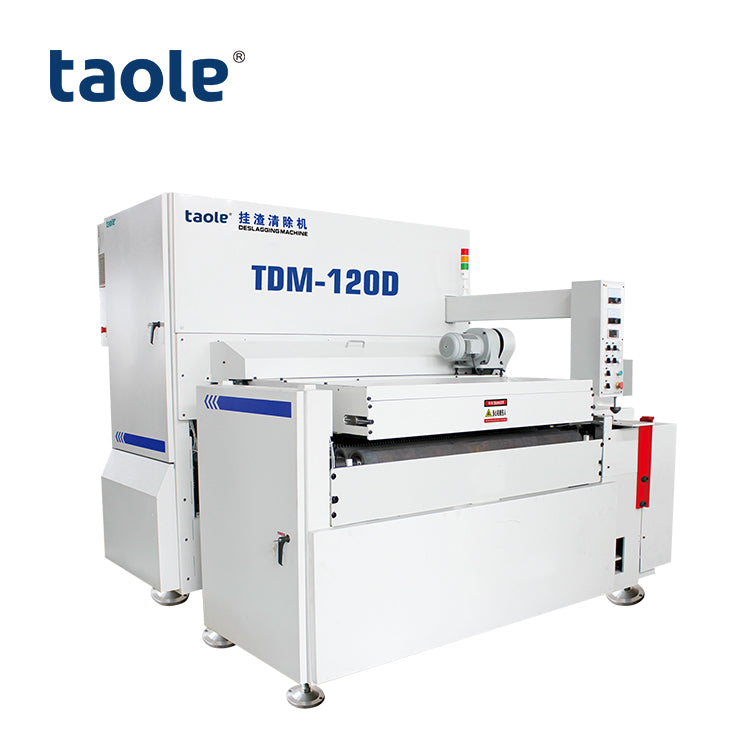

  • Plate 6–60 mm thick, 650 mm wide (TDM-120D up to 1200 mm)
  • 2–4 m/min processing speed
  • Dust extraction connection (Ø150 mm, 25 m³/min)
  • Long-life abrasive belts with Japanese polishing technology
  • Handles holes and curved, profile-cut parts

Technical data

Model TDM-65S TDM-65U / 65D TDM-120D
Max. plate width 650 mm 650 mm 1200 mm
Plate thickness 6–60 mm 9–60 mm 6–60 mm
Min. plate length 170 mm >170 mm on request
Faces processed Bottom face Top and bottom in one pass Single or double
Speed 1–3 m/min 2–4 m/min 2–4 m/min
Table height 900 mm 900 mm on request
Power 5.2 kW, 3-ph 220/380/415 V 50 Hz 3750 W grinding + 750 W feed, 380 V 50 Hz 380 V 50 Hz
Abrasive belt 665 × 1900 mm – –
Compressed air 0.5 MPa 0.5 MPa –
Machine size 2890 × 1950 × 1970 mm table 675 × 1900 mm on request
Net weight 1400 kg 1700 kg on request

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

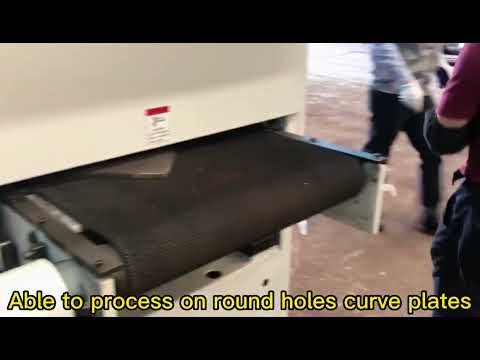

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
