This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

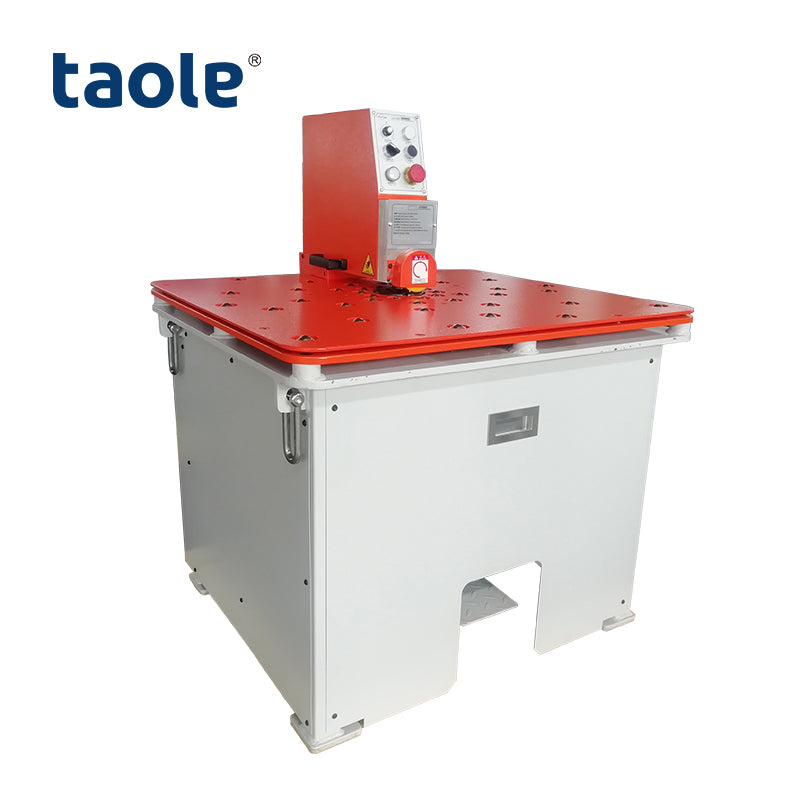

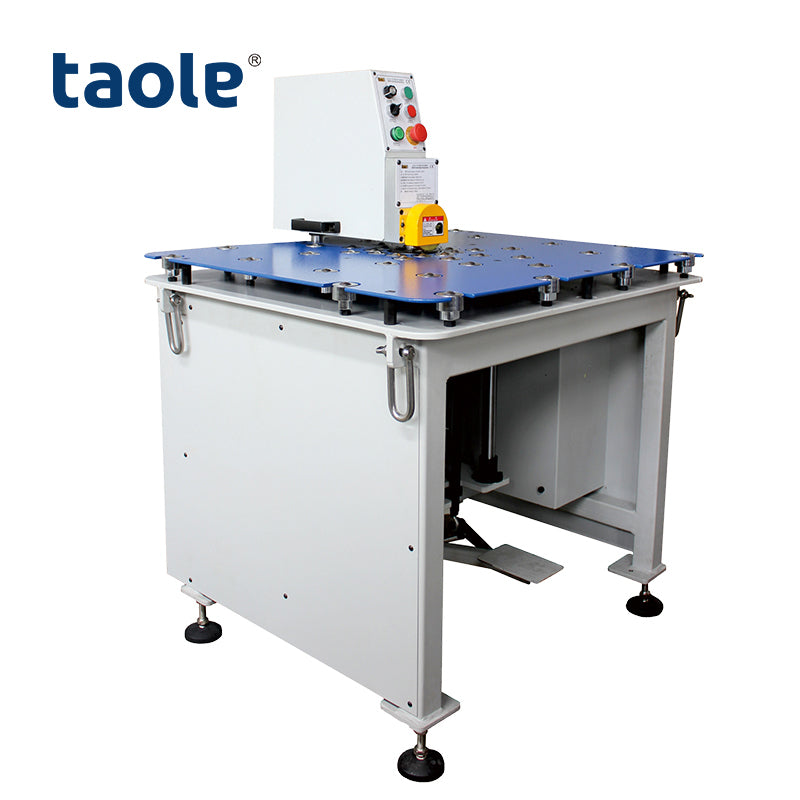

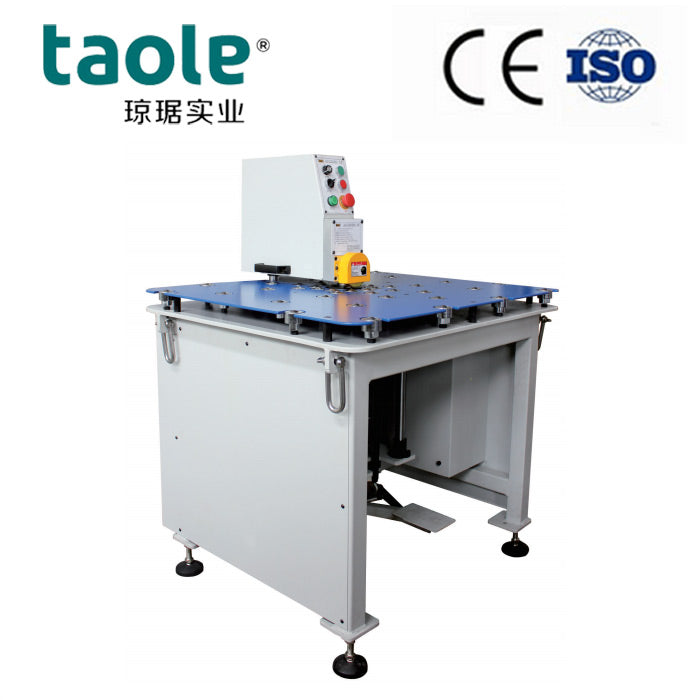

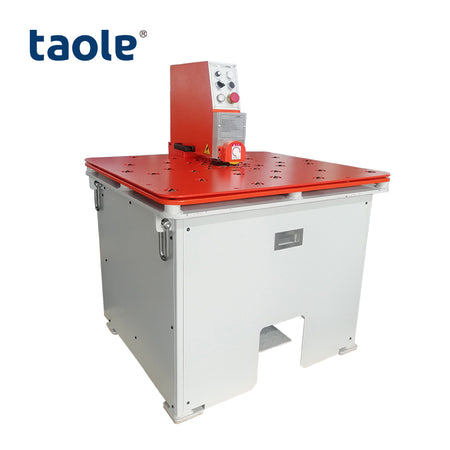

Edge rounding before painting. The TCM-SR3 rounds plate edges to R2 or R3 (or C2/C3 chamfers) so coatings stay on the edge, as shipyards and coating specifications (e.g. ISO 8501-3, IMO PSPC) require. Single or double-sided rounding, at up to 6 m/min.
Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.
| Model | TCM-SR3-S |
|---|---|
| Power supply | 380 V 50 Hz |
| Total power | 790 W + compressed air 0.5–0.8 MPa |
| Spindle speed | 2800 rpm |
| Feed speed | 0–6000 mm/min |
| Clamp thickness | 6–40 mm |
| Plate width / length | ≥800 mm / ≥300 mm |
| Edge | R2 / R3 |
| Cutter | Ø60 mm, 3 inserts |
| Worktable height | 775–800 mm |
| Worktable size | 800 × 900 mm |
Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

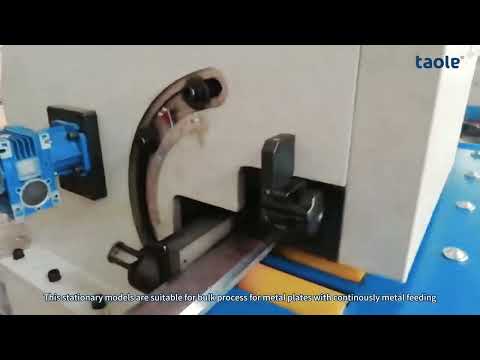

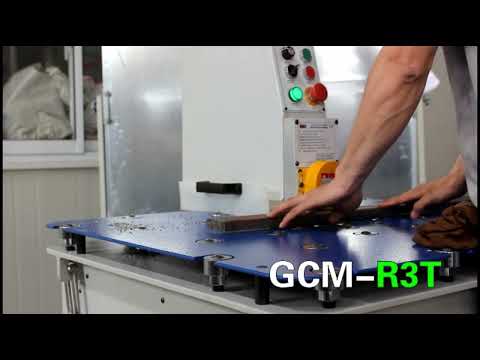

Watch the machine at work in the videos in the product gallery.
TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
