TAOLE TBM-6D Portable Plate Bevelling Machine (4–16 mm)

Out of stock
SKU: TBM-6D
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTBM-6D SKUTBM-6D

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

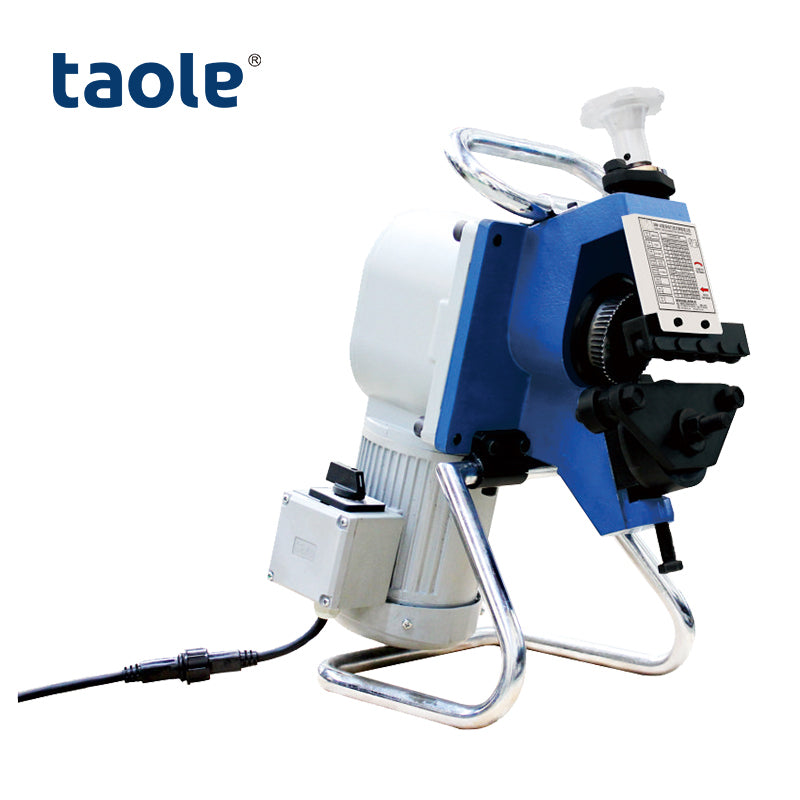

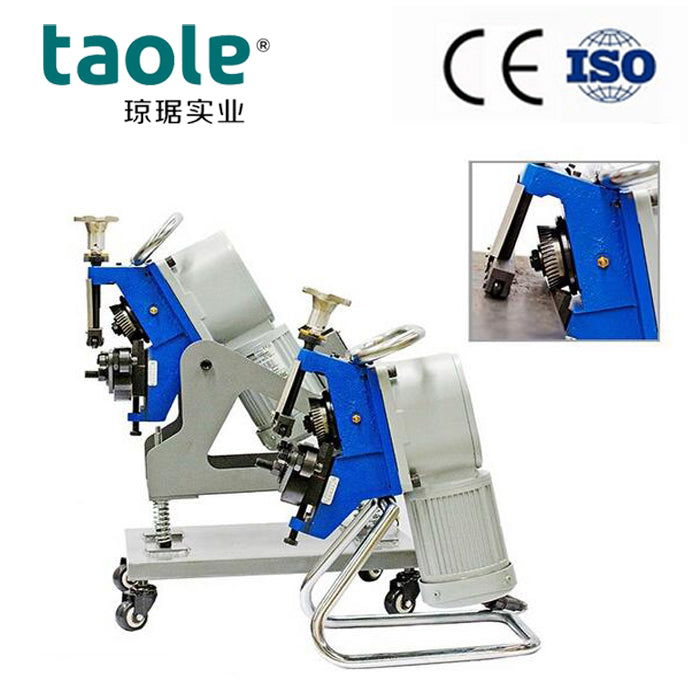

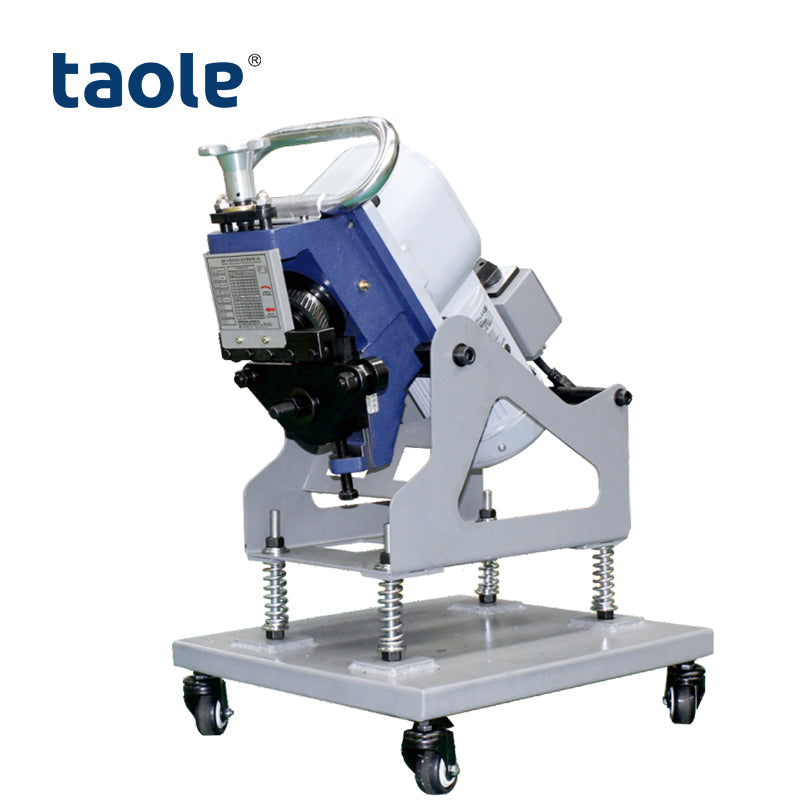

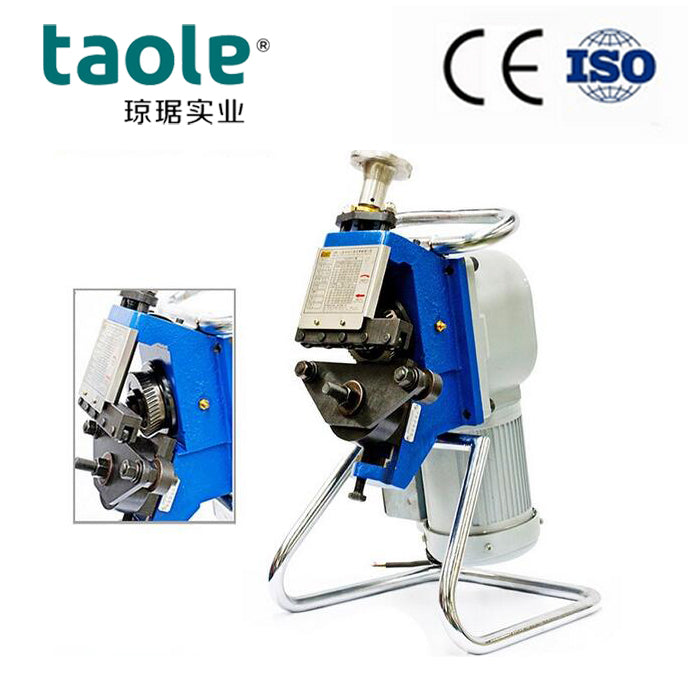

The TBM-6D is a light, portable automatic beveller (33 kg) for plate edges and pipe ends from 4 to 16 mm. It cuts 25, 30, 37.5 or 45° bevels at 1.2–2 m/min and is available on its own or with a trolley.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Fast shearing-type bevelling with a solid rotary cutter, up to 2.6 m/min on carbon steel
  • Walks along the plate edge on its own; small plates can be fed through the machine
  • Cold process: no oxidation, weld directly
  • Bevel angle 25–45° easily adjusted
  • Low noise and no flying chips
  • Energy-saving motor and reducer

Technical data

Model TBM-6D TBM-12D / 12D-R TBM-16D / 16D-R
Power supply 380 V 50 Hz 380 V 50 Hz 380 V 50 Hz
Total power 400 W 750 W (12D-R 1500 W) 1500 W
Motor speed 1450 rpm 1450 rpm 1450 rpm
Feed speed 1.2–2.0 m/min 1.5–2.6 m/min 1.2–2.0 m/min
Clamp thickness 4–16 mm 6–30 mm 9–40 mm
Clamp width >55 mm >75 mm >115 mm
Plate length >50 mm >70 mm >100 mm
Bevel angle 25 / 30 / 37.5 / 45° 25–45° 25–45°
Single-pass bevel width 0–6 mm 0–12 mm 0–16 mm
Max. bevel width 0–8 mm 0–18 mm 0–28 mm
Cutter Ø78 mm Ø93 mm Ø115 mm
Worktable height 460 mm 700 mm 700 mm
Net weight 33 kg (39 kg with trolley) 155 kg (12D-R 235 kg) 212 kg (16D-R 315 kg)

Where it is used

  • Steel structures and bridges
  • Shipbuilding and offshore
  • Pressure vessels, boilers and tanks
  • Oil, gas and petrochemical plant
  • Construction machinery and general fabrication

Standard supply is 380 V 50 Hz 3-phase; 400/415 V (UK and Europe), 220 V and other voltages are available on request, so tell us your site supply in the quote form.

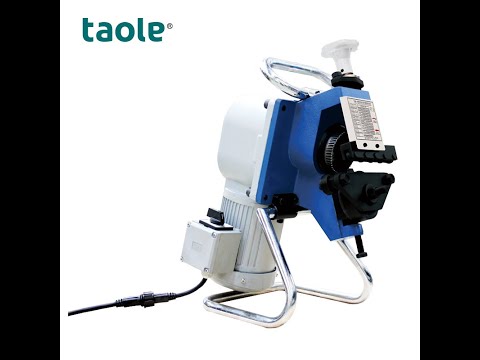

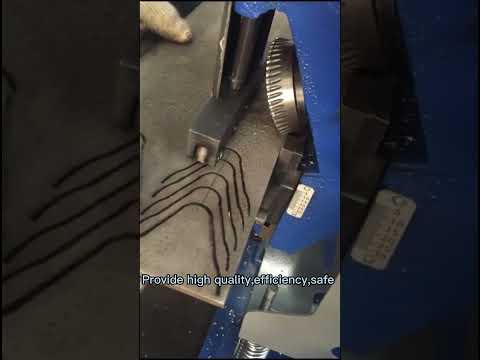

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
