TAOLE ID-Mounted Portable Flange Facing Machine (Ø50–3000 mm)

Out of stock
SKU: TFP-I610
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedI610 (Ø50–610 mm) / Pneumatic SKUTFP-I610

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.
Heavy item: about 105.0 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

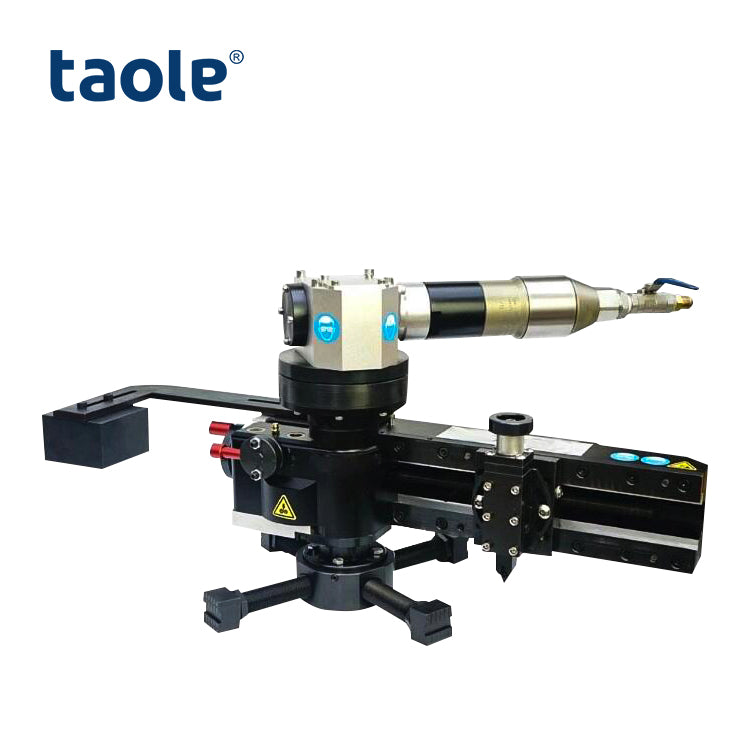

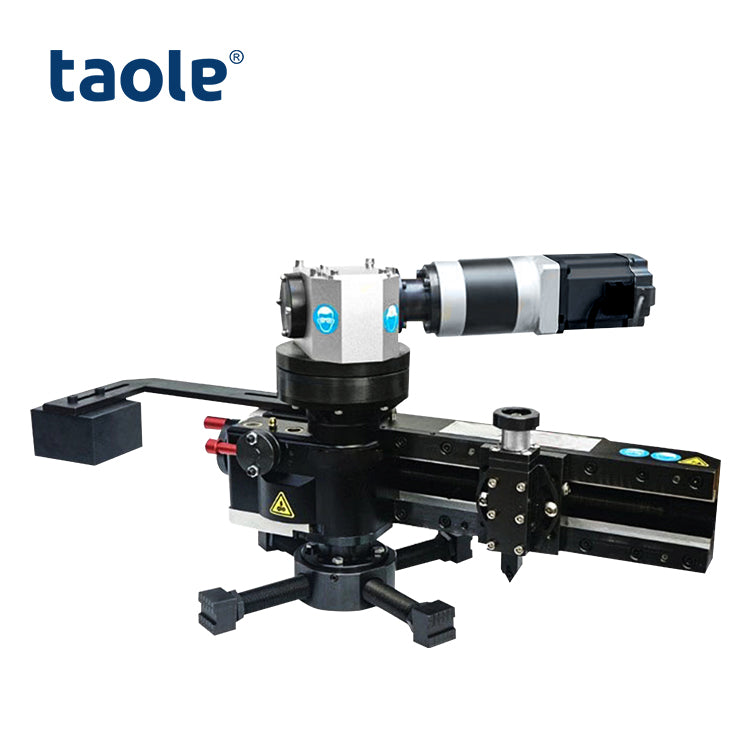

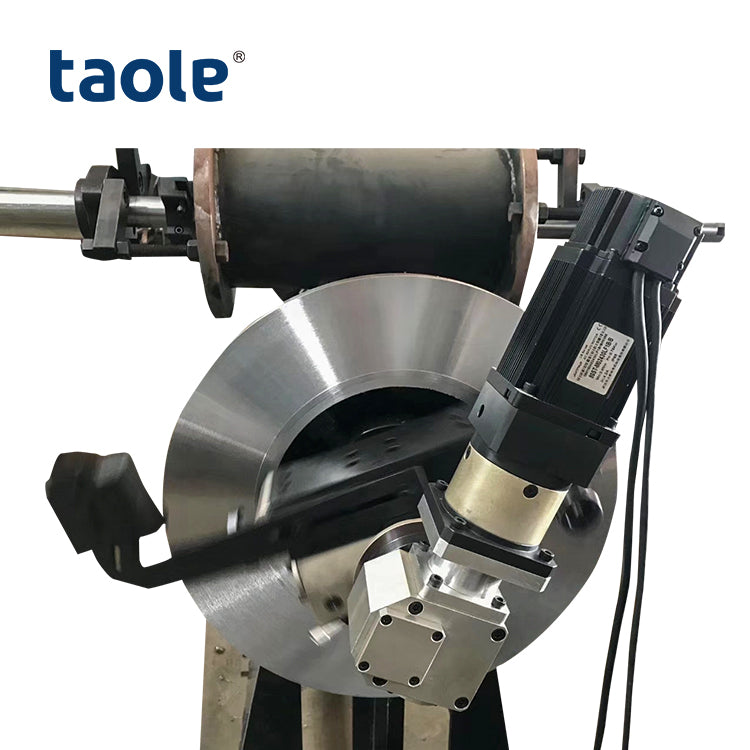

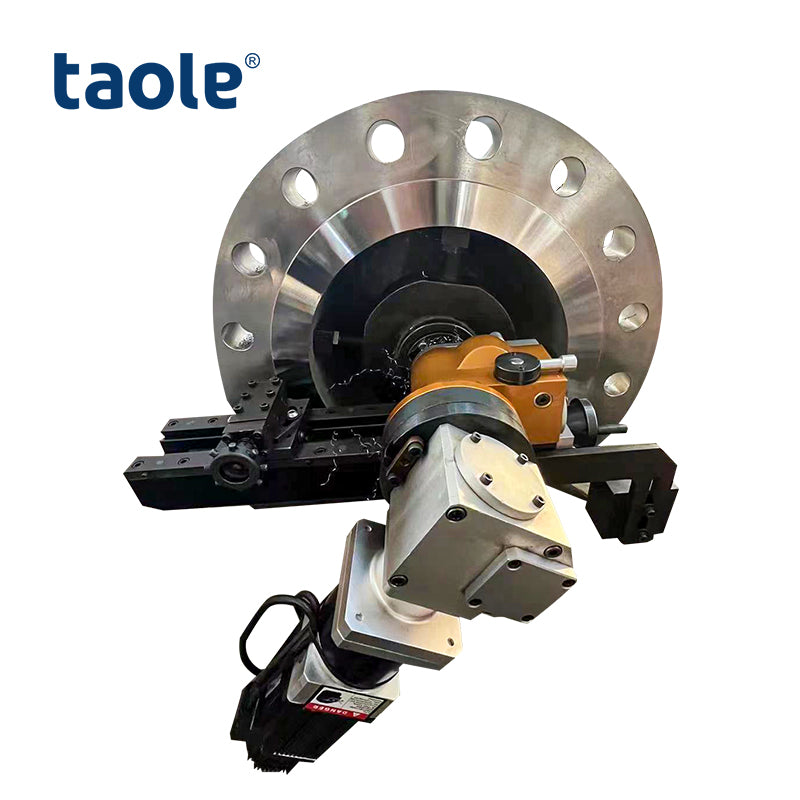

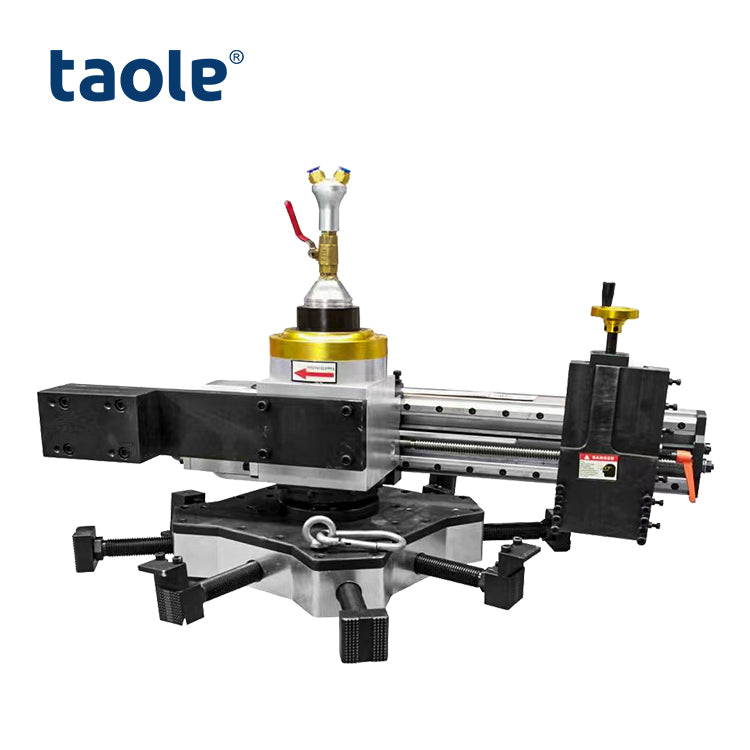

Portable flange facers that mount inside the bore to re-face flanges in place: raised face, spiral serrated finish, RTJ and seal grooves, weld preps and counterbores on pipes, valves and pumps. Five sizes cover facing diameters from 50 to 3000 mm, with pneumatic (TFP), servo-electric (TFS) or hydraulic (TFH) drive.

Supplied on quotation. Choose the size and drive above and send the quote form. We reply with the machine price, delivery to your door (UK or worldwide) and lead time.

Key features

  • Internal four-jaw mounting, small working radius
  • Tool holder swivels ±30° and rotates 360° for facing, grooving and bevelling
  • Precision ball screw and linear rails for smooth, repeatable finishes
  • Pneumatic, servo-electric or hydraulic drive

Technical data

Model Facing range OD (mm) Mounting range ID (mm) Tool feed stroke (mm) Speed (rpm) Net / gross weight
I610 50–610 50–508 50 0–42 62 / 105 kg
I1000 153–1000 145–813 102 0–33 180 / 275 kg
I1650 500–1650 500–1500 102 0–32 420 / 450 kg
I2000 762–2000 604–1830 102 0–22 500 / 560 kg
I3000 1150–3000 1120–2800 102 3–12 620 / 720 kg

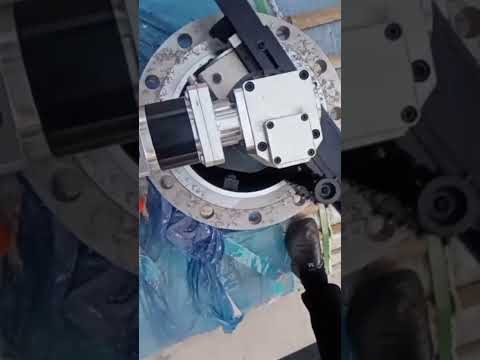

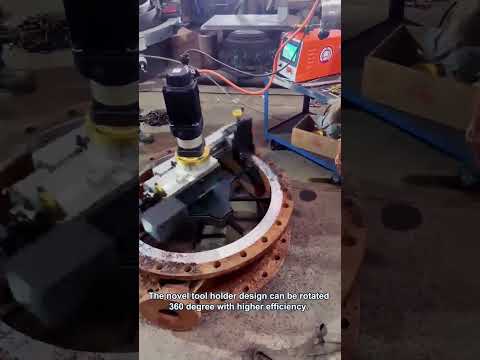

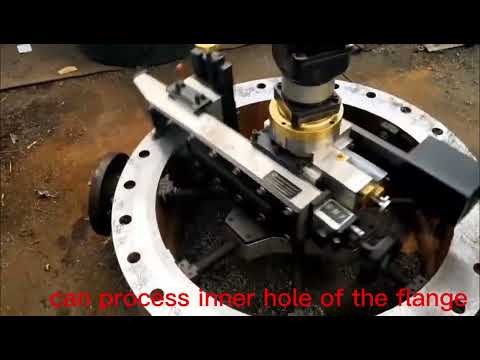

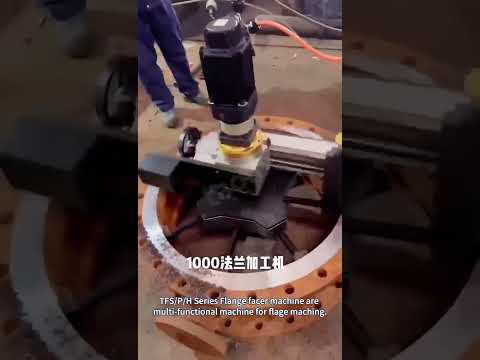

Watch the machine at work in the videos in the product gallery.

TAOLE weld-preparation machines are supplied in the UK and worldwide by LATHELAND. The final specification is confirmed on your quotation.
