Home » SENFENG TXP Laser and Flame Hybrid Bevel Cutting Machine, 20 kW
SENFENG TXP laser and flame hybrid cutting machine
SENFENG TXP laser and flame hybrid cutting machine
SENFENG

SENFENG TXP Laser and Flame Hybrid Bevel Cutting Machine, 20 kW

Out of stock
SKU: SF12030TXP
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

Model12030TXP SKUSF12030TXP

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG TXP (12030TXP) combines a 20 kW fibre laser with flame (oxy-fuel) cutting to cut carbon steel plate from 40 to 200 mm automatically, with ±45° bevelling for V, X, Y and K weld preparations. In hybrid mode it uses about 4 kW of laser output, which SENFENG says saves over 35% energy.

Supplied on quotation. Send the quote form with your plate thicknesses and sizes. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Laser + flame hybrid cutting of 40–200 mm carbon steel
  • ±45° five-axis bevel cutting: V, X, Y and K bevels
  • Pierces 200 mm plate in about 15 seconds without preheating
  • Switches between laser-only and hybrid modes
  • Automatic gas ignition and plate tilt compensation

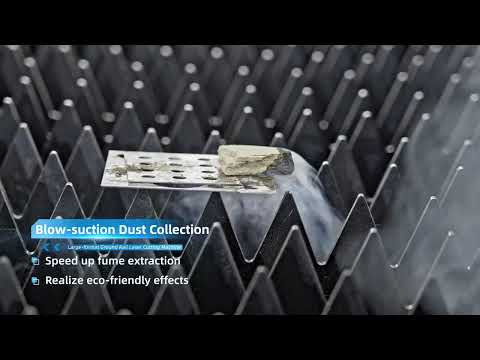

  • Graphite anti-burn bed plates

Technical data

Model 12030TXP
Laser power 20 kW
Working area 12000 × 3000 mm straight / 11400 × 2000 mm bevel
Plate thickness 1–200 mm
Positioning accuracy / repeatability ±0.1 mm per 10 m / ±0.05 mm
Max. no-load speed / acceleration 100 m/min / 0.8 G
Max. table load 28,260 kg
Overall size (L×W×H) 15612 × 4746 × 1950 mm

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
