SENFENG Torsion Bar CNC Press Brake, 40–250 t

Out of stock
SKU: SF-TB-BDE4016
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelBDE4016 SKUSF-TB-BDE4016

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

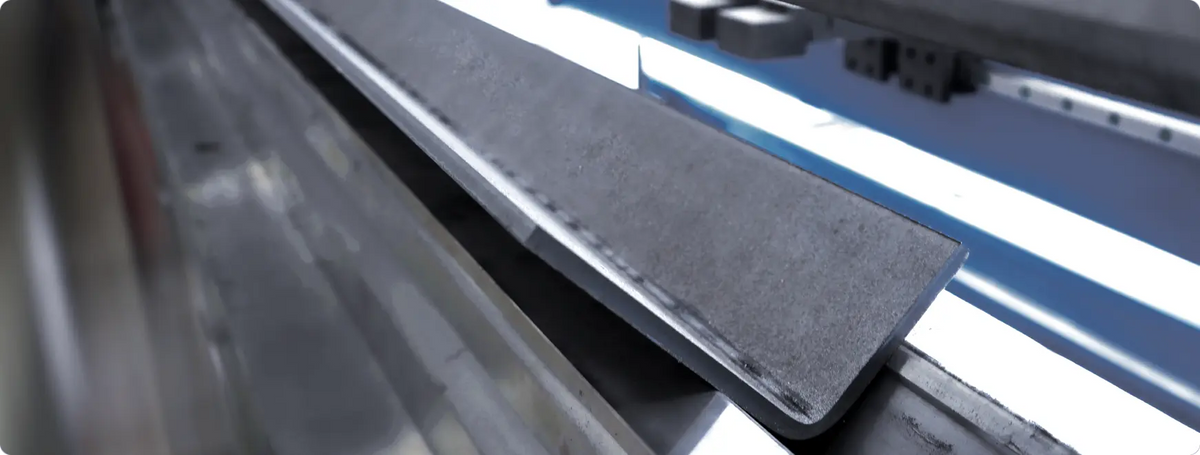

SENFENG torsion bar press brake keeps both ends of the ram level with a full-length torsion shaft rather than servo valves, giving a simple, robust and low-maintenance machine for batch bending of medium plate. Seven models from 400 to 2500 kN and 1600 to 4100 mm.

Supplied on quotation. Choose the model above and tell us the materials, thicknesses and bend lengths you work with in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Mechanical torsion-bar ram synchronisation
  • No servo valves; simpler hydraulics, less sensitive to oil cleanliness
  • Monolithic frame, annealed and gantry-milled

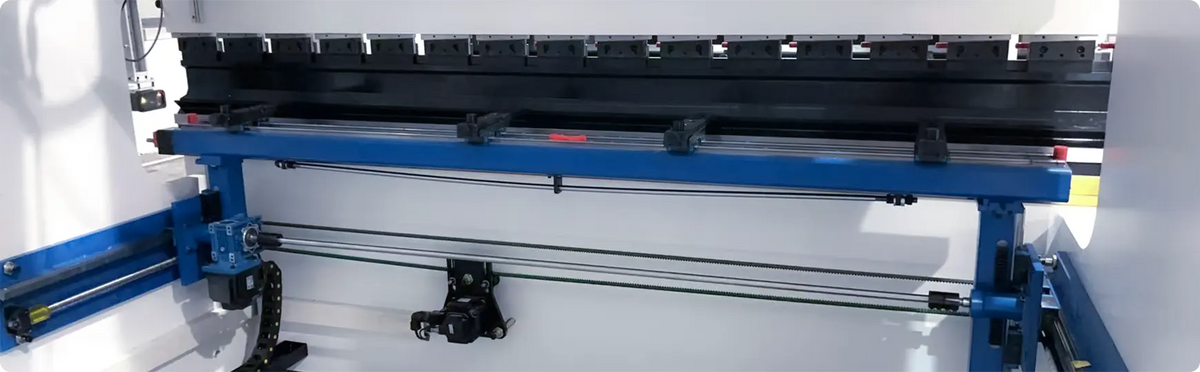

  • Worm-gear backgauge with quick-change fingers

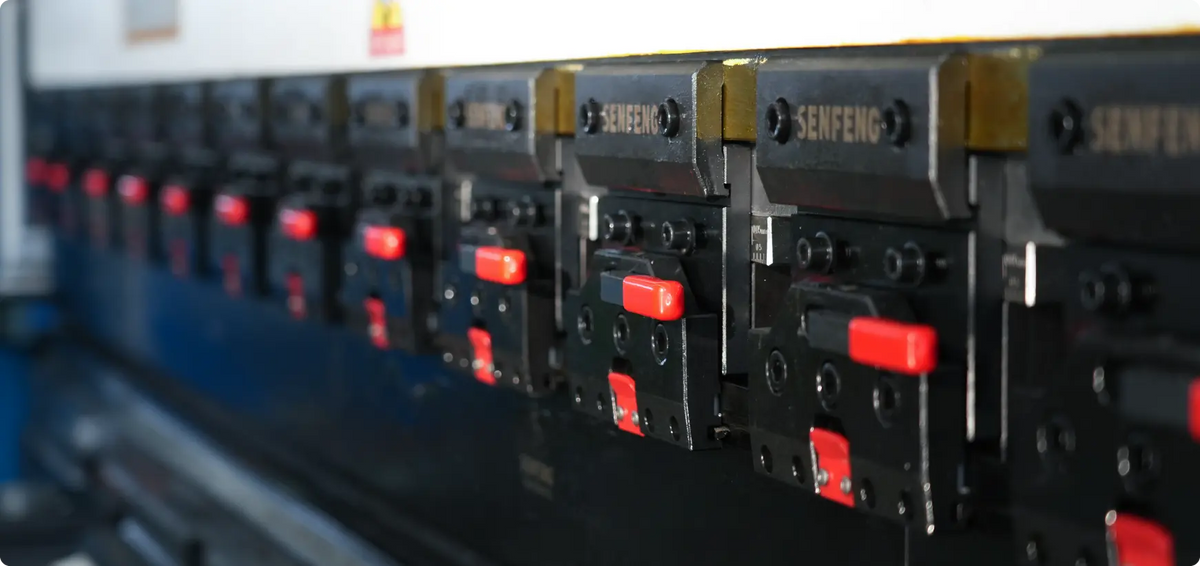

  • Quick-clamp upper tooling

Technical data

Model BDE4016 BDE7025 BDE10041 BDE13032 BDE17041 BDE20032 BDE25041
Bending force (kN) 400 700 1000 1300 1700 2000 2500
Bending length (mm) 1600 2500 4100 3200 4100 3200 4100
Distance between columns (mm) 1200 2000 3100 2500 3100 2500 3100
Throat depth (mm) 250 300 400 400 400 400 400
Open height (mm) 430 430 460 460 485 485 485
Approach speed (mm/s) 120 120 120 120 100 100 100
Bending speed (mm/s) 0–10 0–10 0–10 0–10 0–10 0–8 0–8
Return speed (mm/s) 100
Overall size L×W×H (mm) 2100×1350×2150 3000×1450×2420 4600×1580×2550 3700×1580×2550 4600×1680×2700 3700×1770×2720 4600×1830×3015
Weight (kg) 3000 4800 7500 6700 8800 8200 9800

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
