Home » SENFENG TOP Flexible Metal Processing Line, Coil to Sorted Parts
SENFENG TOP flexible metal processing line
SENFENG TOP flexible metal processing line
SENFENG

SENFENG TOP Flexible Metal Processing Line, Coil to Sorted Parts

Out of stock
SKU: SF1503CH-TOP
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF1503CH-TOP SKUSF1503CH-TOP

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

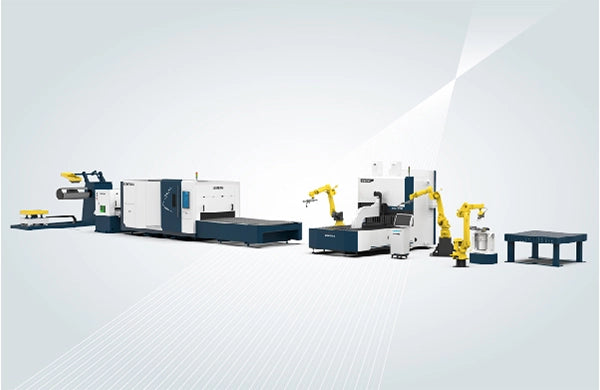

SENFENG TOP Series is a flexible production line that combines coil decoiling, levelling, feeding and laser cutting with automatic sorting and stacking; bending and welding stations can be added. It handles coil up to 3 mm thick, 1500 mm wide and 10 t, and is configured to each customer with short lead times.

Supplied on quotation. Each line is engineered to your coil, parts and output. Choose the line above and send the quote form with your requirements; we reply with the price, freight to your door (UK or worldwide) and lead time.

Key features

  • Automated from decoiling to stacking
  • Real-time intelligent levelling for different coil materials
  • Automatic feeding reduces labour
  • Camera monitoring of the whole process from the control station
  • Optional film lamination, inkjet marking and safety guarding

Technical data

Model SF1503CH-TOP
Max. coil size L×W×T (mm) 3000×1500×3
Coil inner / outer Ø (mm) 508 / 1400
Max. coil weight (t) 10
Levelling accuracy (mm/m²) ±2
Positioning / repeatability (mm) ±0.05 / ±0.02
Max. feed speed (m/min) 10
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
