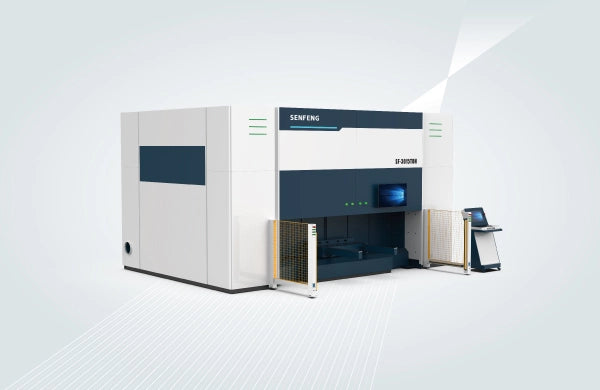

SENFENG TDH five-axis 3D laser cutting machine
SENFENG TDH five-axis 3D laser cutting machine
SENFENG

SENFENG TDH Series Five-Axis 3D Laser Cutting Machine, 3–20 kW

Out of stock
SKU: SF3015TDH
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015TDH SKUSF3015TDH

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG TDH Series is a fully enclosed five-axis fibre laser for cutting, trimming and drilling 3D parts such as hot-formed car body panels, chassis guards and titanium medical components. A dual-station rotary table lets one part be loaded while the other is cut. Laser sources from 3 to 20 kW.

Supplied on quotation. Choose the model above and tell us the laser power and parts you need to cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Five-axis head: C axis endless rotation, A axis ±135° tilt, constant focus control
  • Collision protection for the head optics
  • Dual-station rotary worktable turning ±180° for continuous production
  • Gantry bed with aluminium alloy crossbeam on a marble base
  • Fully enclosed against laser light and fumes

Technical data

Model SF3015TDH
Laser power (kW) 3–20
Max. flat processing range (mm) 3000×1500
X/Y positioning accuracy (mm) ±0.1
X/Y repeatability (mm) ±0.05
Max. no-load speed (m/min) 100
Max. acceleration (G) 1
A-axis rotation ±135°
C-axis rotation N×361° (endless)
Machine cooling Air-cooled
Overall size L×W×H (mm) 6000×2800×2755
Power supply 3-phase 380 V, 50/60 Hz (other voltages to order)

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
