SENFENG TCK Series Slant-Bed CNC Lathe

Out of stock
SKU: SF-TCK50
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF-TCK50 SKUSF-TCK50

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

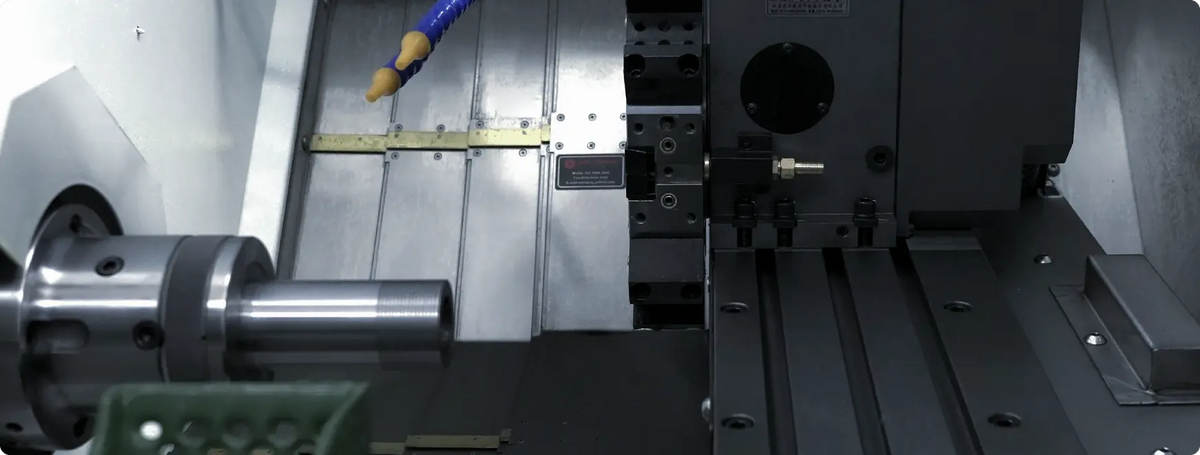

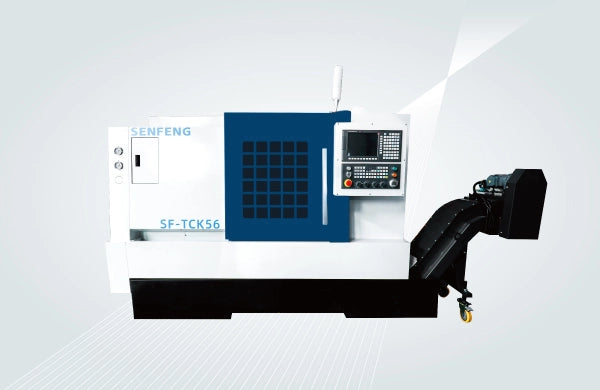

SENFENG TCK Series horizontal slant-bed CNC lathes turn shafts, discs and other round parts quickly and accurately. The slant bed lets chips fall away by gravity, and a servo turret changes tools in the shortest direction. Seven models cover swings from Ø500 to Ø850 mm and turning lengths up to 1500 mm.

Supplied on quotation. Choose the model above and send the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

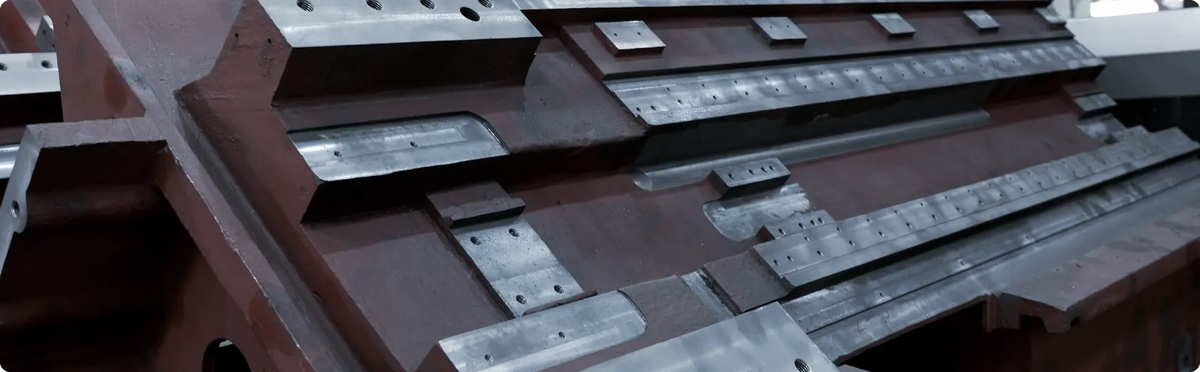

  • Slant-bed design for easy chip removal; chain-plate, scraper or magnetic chip conveyor available

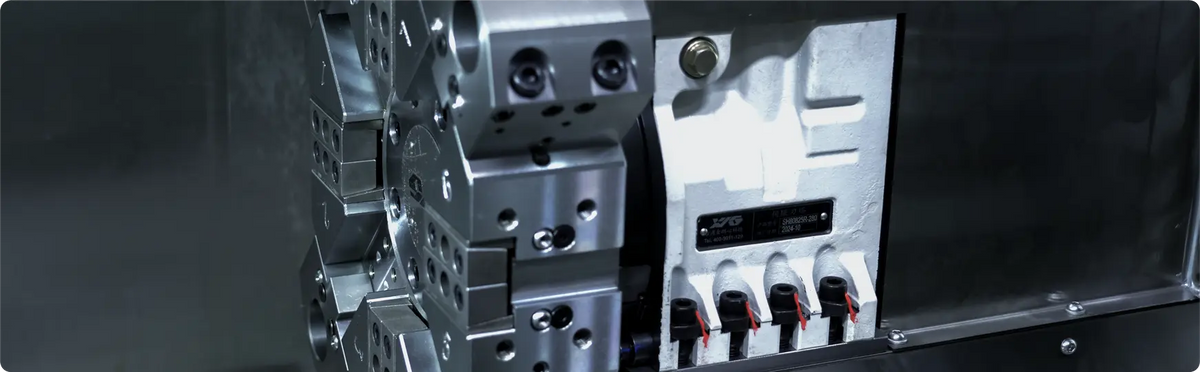

  • 8 or 12-station horizontal servo turret, nearest-path tool selection
  • Integral spindle unit, A2-6 to A2-11 spindle nose, up to 4500 rpm
  • Hydraulic chuck 8″ to 12″ depending on model
  • Alarm messages on screen and emergency stop protection

Technical data

Model SF-TCK50 SF-TCK56 SF-TCK6050 SF-TCK600S SF-TCK6350B SF-TCK70 SF-TCK80
Swing over bed (mm) Ø500 Ø560 Ø560 Ø600 Ø630 Ø720 Ø850
Swing over cross slide (mm) Ø300 Ø330 Ø380 Ø380 Ø370 Ø420 Ø550
Max. cutting length (mm) 500 500 550 500 500 1000 1500
Max. turning dia., disc (mm) Ø360 Ø350 Ø500 Ø550 Ø480 Ø500 Ø750
Spindle nose A2-6 A2-6 A2-6 A2-8 A2-8 A2-11 A2-11
Spindle bore (mm) Ø65 Ø65 Ø65 Ø80 Ø96 Ø80 Ø120
Max. bar capacity (mm) Ø50 Ø50 Ø50 Ø70 Ø85 Ø70 Ø105
Spindle speed (rpm) 50–4000 50–4000 50–4000 50–3000 50–4500 up to 1600 30–1300
Main motor (kW) 11/15 11/15 11/15 15/18.5 15/18.5 18.5/22 15/18.5
Rated torque (N·m) 177 177 157 255 210 354 573
Chuck 8″ 8″ 8″ 10″ 10″ 12″ 12″
X / Z travel (mm) 200 / 550 200 / 530 275 / 680 300 / 550 270 / 690 270 / 1020 385 / 1600
X / Z rapid (m/min) 30 / 30 30 / 30 15 / 15 12 / 12 15 / 15 15 / 15 10 / 12
Turret stations 8 8 12 12 12 12 12
Tool shank (mm) 25×25 25×25 25×25 32×32 32×32 32×32 32×32
Boring bar (mm) Ø40 Ø40 Ø40 Ø50 Ø50 Ø50 Ø50
Tailstock taper MT5 MT5 MT5 – MT5 MT5 MT5
Tailstock travel (mm) 450 450 500 – 500 900 1500

A turn-mill version with Y axis (SFTCK56Y) is available on request. Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
