Home » SENFENG T Series Two-Chuck Tube Laser Cutter, 1.5–6 kW

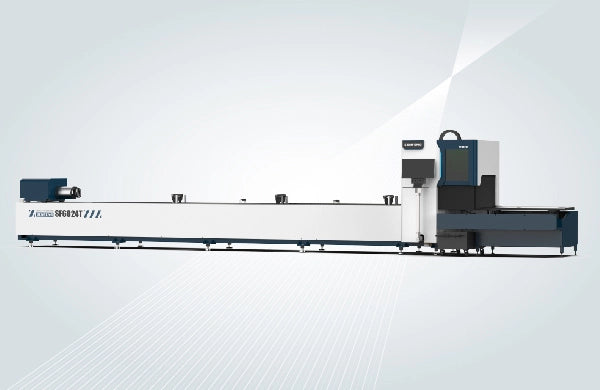

SENFENG T Series two-chuck tube laser cutter
SENFENG T Series two-chuck tube laser cutter
SENFENG

SENFENG T Series Two-Chuck Tube Laser Cutter, 1.5–6 kW

Out of stock
SKU: SF6012T
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF6012T SKUSF6012T

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG T Series two-chuck tube lasers cut round, square, rectangular and profile tube for rail, automotive, construction and agricultural machinery. Laser sources from 1.5 to 6 kW, tubes Ø15–360 mm and lengths up to 12 m.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Two chucks as standard for ultra-short tailing
  • Servo-controlled follow-up support
  • Vari-pitch support for round, square and rectangular tube
  • Dust-proof high-precision clamping
  • Optional weld seam detection and visual scanning
  • Optional automatic loading and unloading

Technical data

Model SF6012T SF6016T SF6024T SF6035T SF9024T SF9035T SF12035T
Laser power (kW) 1.5–3 1.5–3 1.5–6 1.5–6 1.5–6 1.5–6 1.5–6
Tube length (mm) 1000–6500 1000–6500 2000–6500 2000–6200 2000–9000 2000–9000 2000–12000
Tube size (mm) Ø15–120 / □15–120 Ø15–170 / □15–170 Ø20–230 / □20–230 Ø20–360 / □20–360 Ø20–230 / □20–230 Ø20–360 / □20–360 Ø50–350 / □50–350
Max. tube weight (kg) 120 160 260 500 260 500 500
X/Y positioning accuracy (mm) ±0.05
X/Y repeatability (mm) ±0.03
Max. no-load speed (m/min) 150 110 100 60 100 60 60
Max. chuck speed (rpm) 180 140 100 60 100 60 60
Overall size L×W×H (mm) 9100×1800×2100 9100×1800×2100 9530×1950×2200 9500×2050×2550 12530×1950×2200 12330×2050×2550 15330×2050×2550
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
