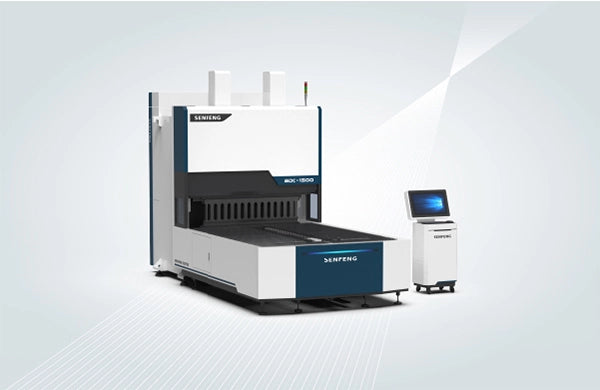

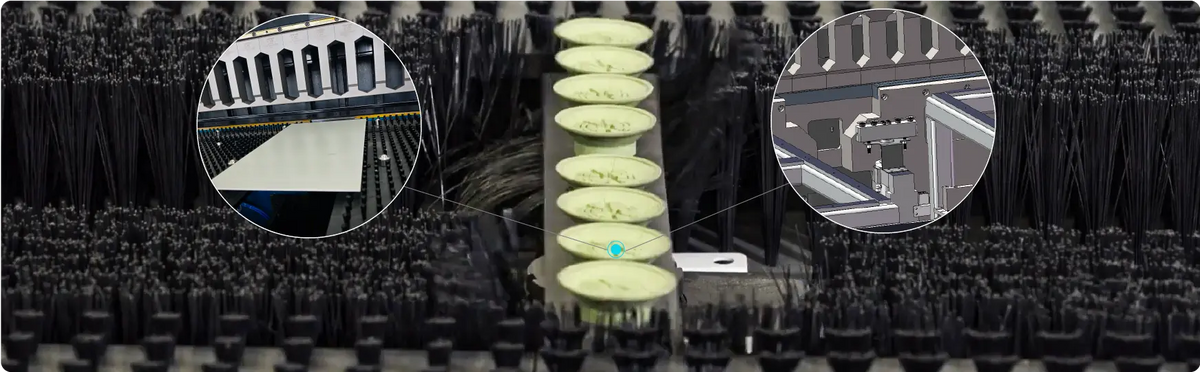

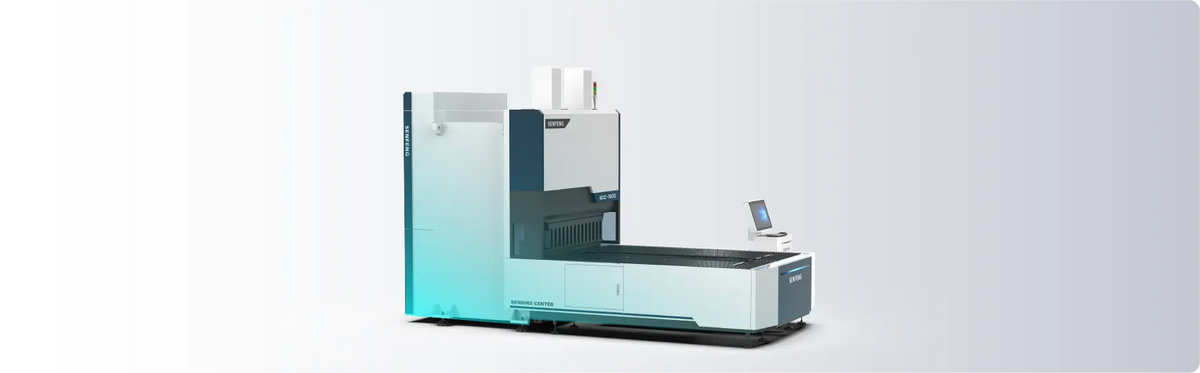

SENFENG suction CNC panel bender handles the sheet with vacuum cups and bends it under 10-axis coordinated control, giving mark-free results on thin, high-finish parts. Bending lengths of 1200 or 1500 mm, 170 mm bending height and 0.2 s per bend, with a port ready for robot loading.
Supplied on quotation. Choose the model above and tell us your sheet sizes, materials and thicknesses in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | BDC1200 | BDC1500 |
|---|---|---|
| Max. bending length (mm) | 1200 | 1500 |
| Fastest bend (s) | 0.2 | |
| Bending height (mm) | 170 | |
| Max. thickness (mm) | Stainless 0.8 / mild steel 1.0 / aluminium 1.3 | |
| Min. thickness (mm) | 0.35 | |
| Max. sheet size (mm) | 1200×1200 | 1500×1250 |
| Axes | 10 | |
| Total motor power (kW) | 30 | 39 |
| Overall size L×W×H (mm) | 3700×1800×2450 | 4000×2000×2550 |
| Weight (t) | 9 | 12 |
| Power supply | 380 V, 3-phase | |
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
