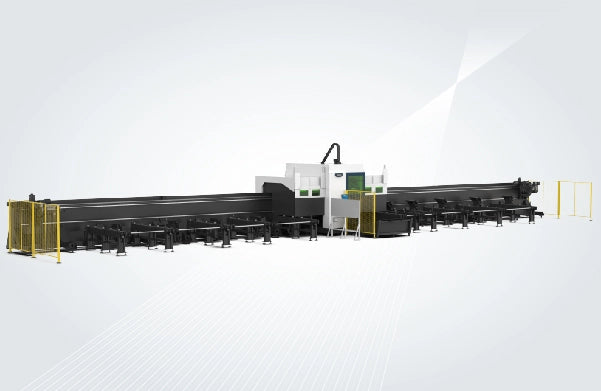

SENFENG ST Series heavy-duty tube laser cutter
SENFENG ST Series heavy-duty tube laser cutter
SENFENG

SENFENG ST Series Heavy-Duty Three-Chuck Tube Laser Cutter, 6–20 kW

Out of stock
SKU: SF9035ST
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF9035ST SKUSF9035ST

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG ST Series is a heavy-duty three-chuck tube laser for large, long and heavy tube in construction machinery, engineering and shipbuilding. 6–20 kW laser, tubes Ø50–640 mm and up to 3000 kg, with automatic loading and unloading.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Three-chuck design for heavy, large-diameter tube
  • Side-mounted bed for stability and vibration damping
  • Automatic loading and unloading for continuous running
  • Zero-tailing cutting
  • Profile software for H, U and L sections
  • Optional bevel cutting, weld seam detection and visual scanning

Technical data

Model SF9035ST SF9050ST SF9056ST SF12035ST SF12050ST SF12056ST SF12065ST
Laser power (kW) 6–20
Tube length (mm) 6000–9000 6000–9000 6000–9000 6000–12000 6000–12000 6000–12000 6000–12000
Tube size (mm) Ø50–360 / □50–360 Ø50–500 / □50–500 Ø50–560 / □50–400 Ø50–360 / □50–360 Ø50–500 / □50–500 Ø50–560 / □50–400 Ø50–640 / □50–640
Max. tube weight (kg) 1000 2000 1800 1000 2000 1800 3000
Positioning accuracy (mm) ±0.1/1000
Repeatability (mm) ±0.1
Max. no-load speed (m/min) 60 40 30 60 40 30 30
Max. chuck speed (rpm) 60 40 30 60 40 30 30
Overall size L×W×H (mm) 18500×6500×4500 19000×7200×4200 19000×7200×4200 21500×6500×4500 22000×7200×4200 22000×7200×4200 22000×7200×4200
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
