SENFENG SF1530NP Fully Enclosed Compact Fibre Laser Cutter

Out of stock
SKU: SF1530NP
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF1530NP SKUSF1530NP

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

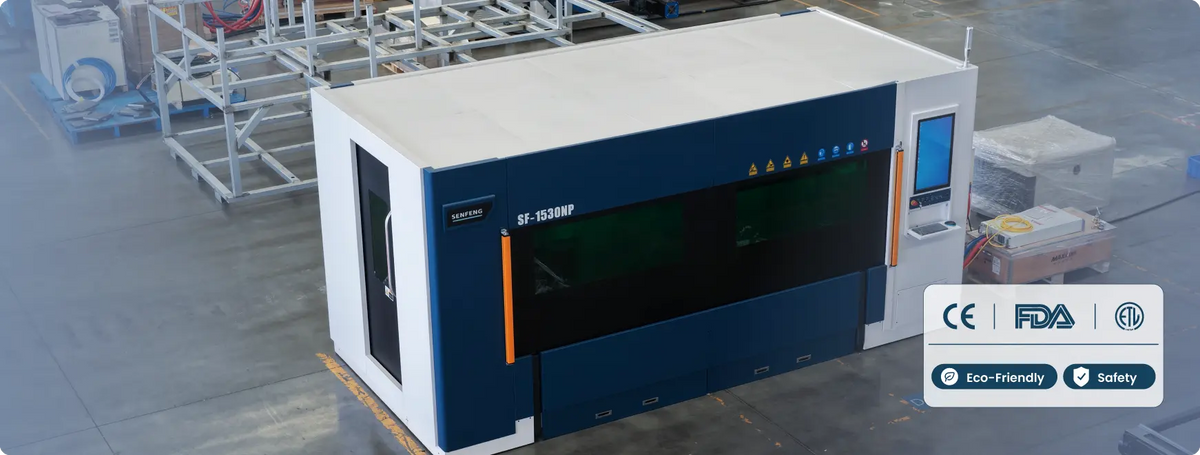

SENFENG SF1530NP is a fully enclosed, compact fibre laser sheet cutter for a full 3000×1500 mm sheet, with 1.5–6 kW laser sources. The closed cabin, electric lifting door and anti-burn table keep the operator safe and the fumes contained.

Supplied on quotation. Tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

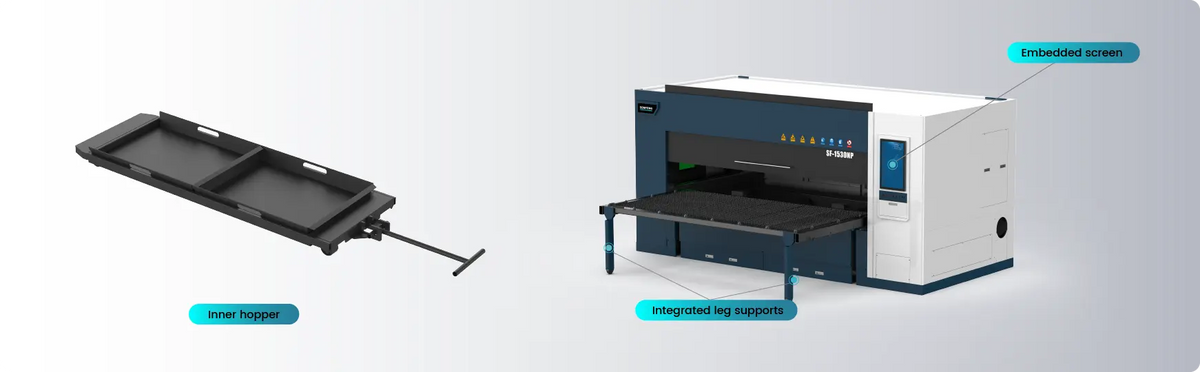

  • Fully enclosed cabin with electric lifting door and anti-burn table
  • Jump function cuts idle travel time by at least 70%
  • Flash piercing and smooth piercing for thick and thin plate
  • Micro-joints that break off by hand for a clean edge
  • Automatic edge detection finds the sheet position and angle

Technical data

Laser power 1.5–6 kW
Working area 3030 × 1510 mm
Positioning accuracy / repeatability ±0.05 mm / ±0.02 mm
Max. no-load speed 100 m/min
Max. acceleration 1 G
Max. table load 1100 kg
Overall size (L×W×H) 4921 × 2225 × 2317 mm
Power supply 3-phase 380 V, 50/60 Hz (other voltages to order)

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
