SENFENG S2 Series Tube Laser Cutter with Auto Loading, 3–6 kW

Out of stock
SKU: SF6009S2
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF6009S2 SKUSF6009S2

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

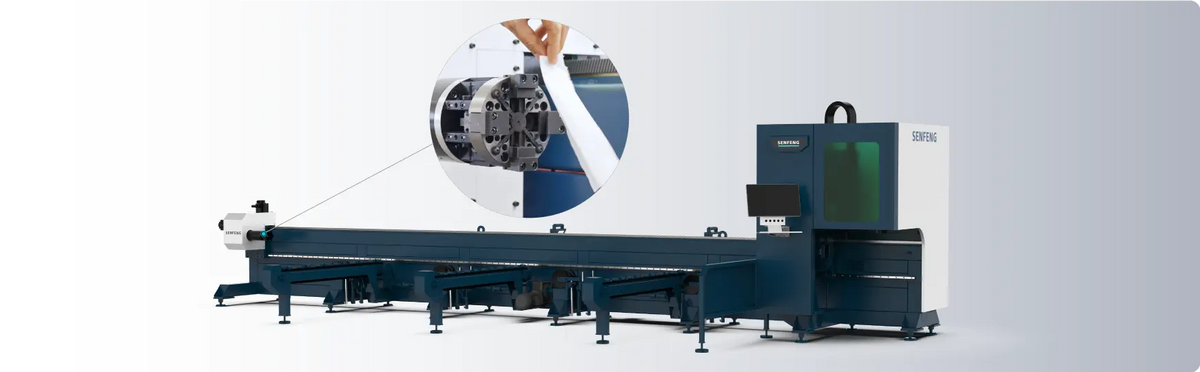

SENFENG S2 Series is a side-mounted tube laser with automatic loading for small and medium tube in batch production. Laser sources from 3 to 6 kW, tubes Ø15–280 mm and lengths up to 12 m, with tailing as short as 50–80 mm.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

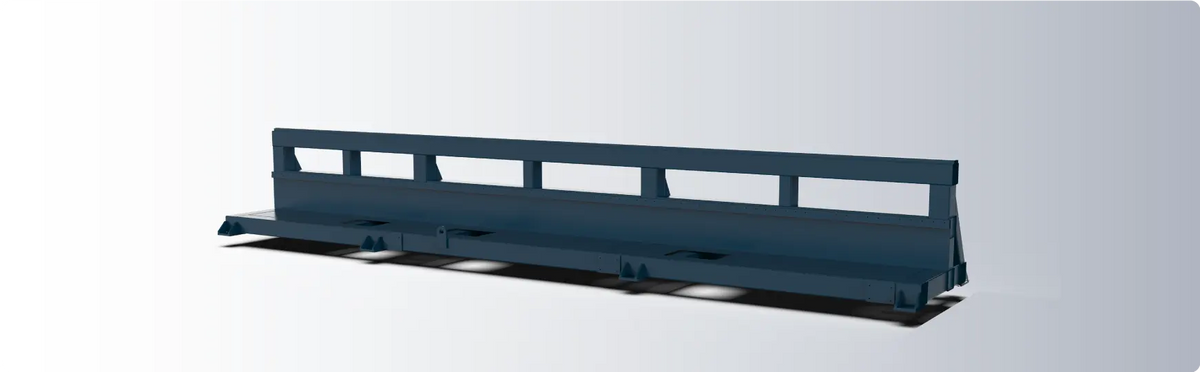

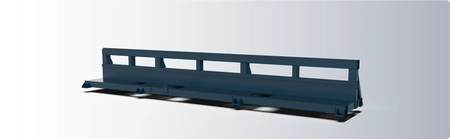

  • Side-mounted bed for faster loading

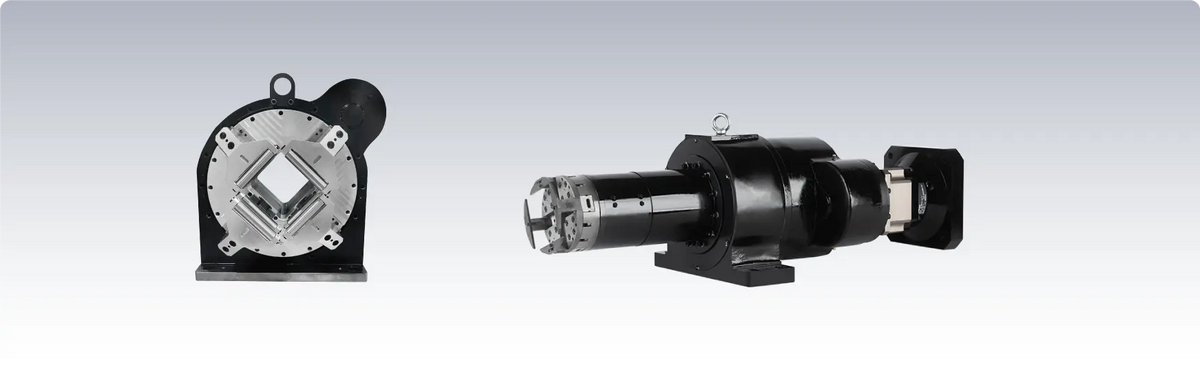

  • High-precision chucks for stable, accurate cutting
  • Air-blow on the rear chuck reduces jaw sticking
  • Automatic loading cuts labour
  • Ultra-short tailing, about 50–80 mm
  • Optional vari-pitch or servo follow-up supports

Technical data

Model SF6009S2 SF6012S2 SF6016S2 SF6024S2 SF6028S2 SF9024S2 SF9028S2 SF12028S2
Laser power (kW) 3 3–6 3–6 3–6 3–6 3–6 3–6 3–6
Tube size (mm) Ø15–90 / □15–90 Ø15–120 / □15–120 Ø15–170 / □15–170 Ø20–240 / □20–240 Ø20–280 / □20–280 Ø20–240 / □20–240 Ø20–280 / □20–280 Ø20–280 / □20–280
Max. tube length (mm) 6500 6500 6500 6500 6500 9000 9000 12000
Max. chuck load (kg) 80 120 150 260 500 300 500 400
X/Y positioning accuracy (mm) ±0.05
X/Y repeatability (mm) ±0.03
Max. no-load speed (m/min) 100 100 100 120 100 120 100 100
Max. chuck speed (rpm) 240 200 180 100 100 100 100 90
Max. acceleration (G) 1.5 1.5 2.0 0.8 0.7 0.8 0.7 0.7
Power supply 3-phase 380 V, 50 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
