Home » SENFENG S Series Portable Air-Cooled Laser Welder, 0.8–1.5 kW
SENFENG S Series portable laser welder
SENFENG S Series portable laser welder
SENFENG

SENFENG S Series Portable Air-Cooled Laser Welder, 0.8–1.5 kW

Out of stock
SKU: SF3S
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3S SKUSF3S

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

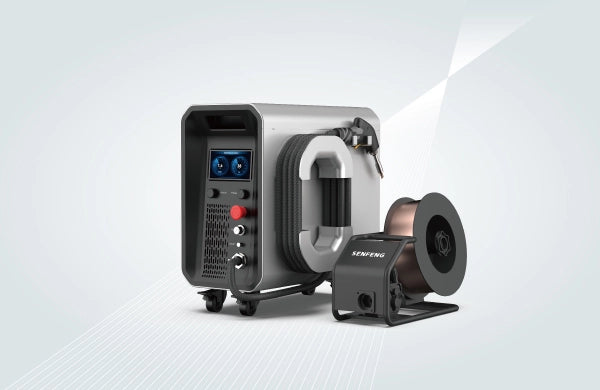

SENFENG S Series is a compact, air-cooled handheld laser welder on casters for on-site and workshop jobs. It welds, cleans, cleans weld seams and cuts, runs on single-phase 220 V and weighs 45–55 kg. Three models from 0.8 to 1.5 kW weld sheet up to 5 mm.

Supplied on quotation. Choose the model above and tell us the materials and thicknesses you weld in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Air-cooled: no chiller or coolant to maintain
  • 4-in-1: welding, cleaning, weld seam cleaning and cutting
  • Compact and mobile on casters
  • Twin knobs for power and spot width, usable with gloves
  • I/O plug for robot integration
  • Low heat input on stainless, carbon steel and aluminium

Technical data

Model SF3S SF4S SF5S
Laser power (kW) 0.8 1.2 1.5
Wavelength (nm) 1080 ±10
Welding thickness (mm) ≤3 ≤4 ≤5
Filler wire Ø (mm) 0.8–1.6
Welding gun weight (kg) ≤0.7
Gun cable length (m) 5 7 7
Net weight (kg) 45 50 55
Overall size L×W×H (mm) 670×335×590
Power supply Single-phase 220 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
