Home » SENFENG R Intelligent Air Cutting Large-Format Fibre Laser, 12 kW
SENFENG R intelligent air cutting large-format laser

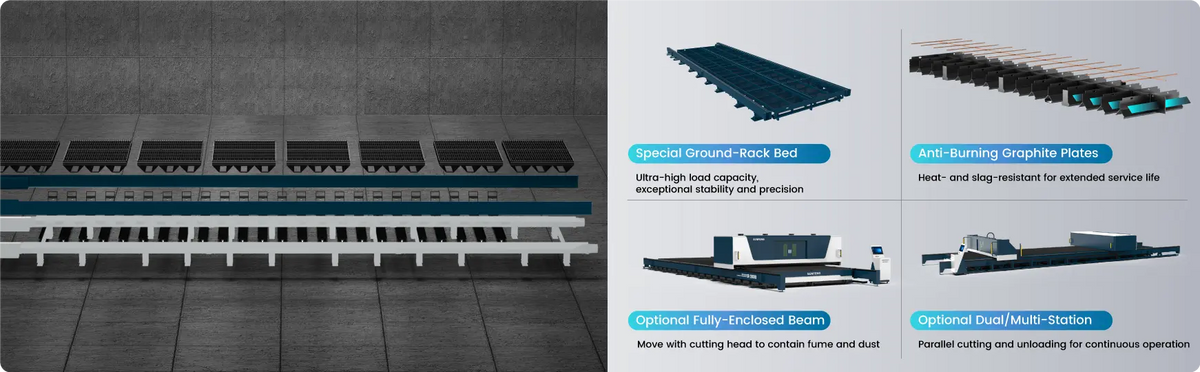

SENFENG R air cutting detail
SENFENG R large-format bed
SENFENG R intelligent air cutting large-format laser
SENFENG R air cutting detail
SENFENG R large-format bed
SENFENG

SENFENG R Intelligent Air Cutting Large-Format Fibre Laser, 12 kW

Out of stock
SKU: SF3030R-AC
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3030R AC SKUSF3030R-AC

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG R Intelligent Air Cutting brings compressed-air cutting to large, heavy plate: a modular 12 kW gantry laser with beds from 3000×3000 mm to 10000×4000 mm, offered as an alternative to oxygen cutting without the need for nitrogen.

Supplied on quotation. Choose the bed size above and send in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Intelligent air cutting for large, heavy plate
  • Modular bed for long sheets and large structural parts
  • Optional dual or multi-station layouts for cutting and unloading in parallel

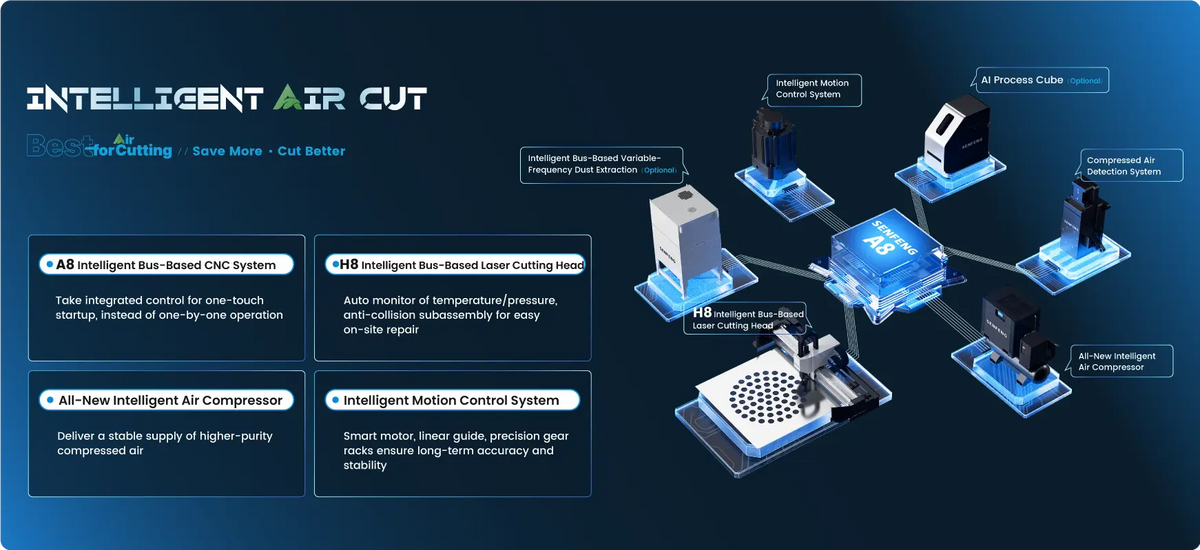

  • Bus CNC linking air compressor, proportional valve and cleanliness detector
  • Optional automatic nozzle changer, QR-code drawing import and beam alignment
  • Optional enclosed beam and part marking (UV inkjet, galvo or engraving)

Technical data

Model SF3030R AC SF6030R AC SF8030R AC SF8040R AC SF10030R AC SF10040R AC
Laser power (kW) 12
Working area (mm) 3000×3000 6000×3000 8000×3000 8000×4000 10000×3000 10000×4000
Max. table load (kg) 7065 14130 18840 25120 23550 31400
Max. no-load speed (m/min) 120
Max. acceleration (G) 1.2
Positioning accuracy (mm) ±0.1 per 10 m
Repeatability (mm) ±0.05
Overall size L×W×H (mm) 5006×4746×1950 8360×4746×1950 11181×4746×1950 11181×5746×1950 13341×4746×1950 13341×5746×1950
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
