SENFENG Press-Down Arm CNC Panel Bender, 1500–4200 mm

Out of stock
SKU: SF-BDC1500-M
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelBDC1500 / Manual loading SKUSF-BDC1500-M

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

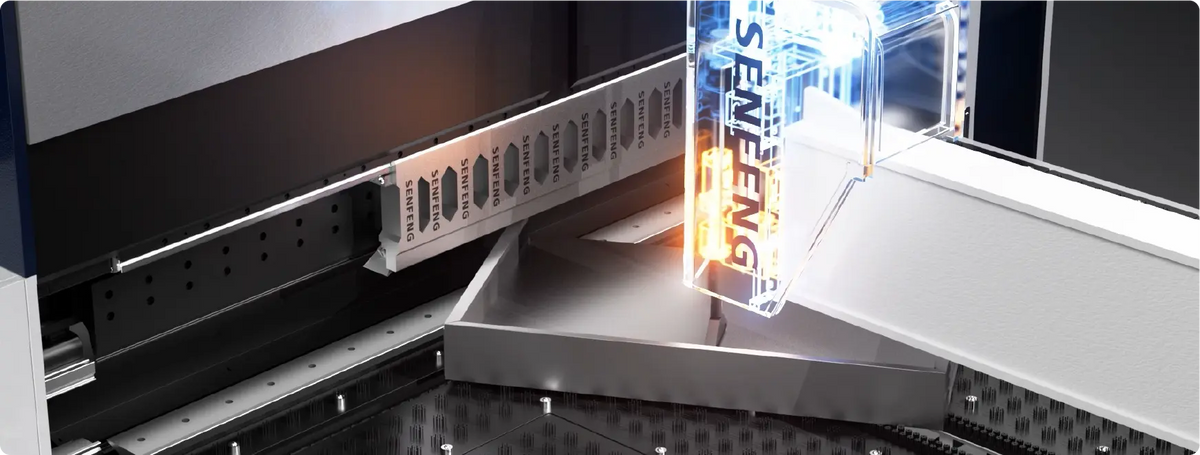

SENFENG press-down arm panel bender positions the sheet with a press-down arm and bends it under multi-axis control, so thin, large, perforated or embossed panels can be formed quickly. Universal dies make up-bends, down-bends, radii and closed shapes without frequent die changes. Five bending lengths from 1500 to 4200 mm, available for manual loading, with a gantry loader, or with a six-axis robot for unmanned running.

Supplied on quotation. Choose the bending length and loading option above and tell us your sheet sizes, materials and thicknesses in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • About 0.2 s per bend

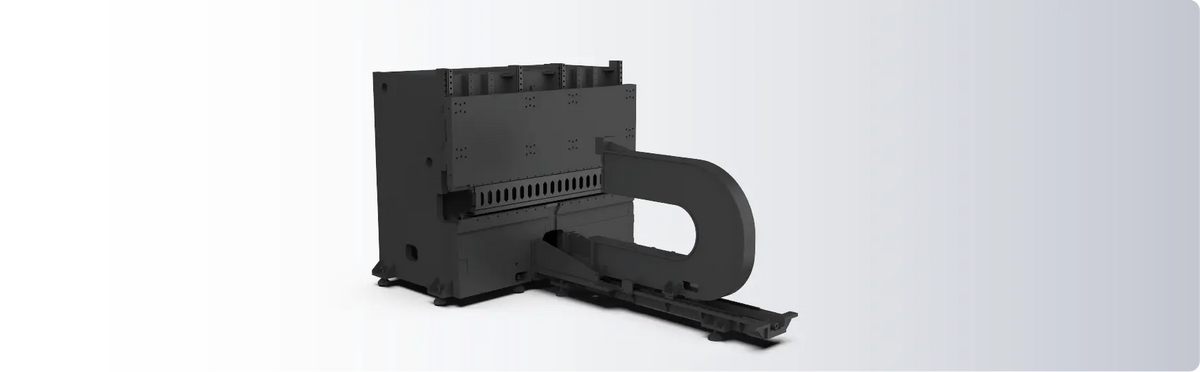

  • Press-down arm feeding for perforated or embossed sheet

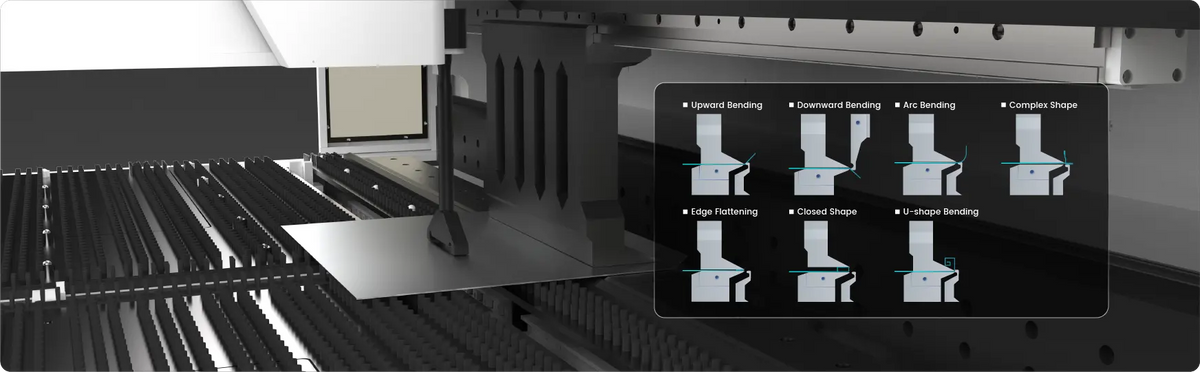

  • Universal dies for many bend shapes
  • Optional 19 or 23-axis linkage and die changer

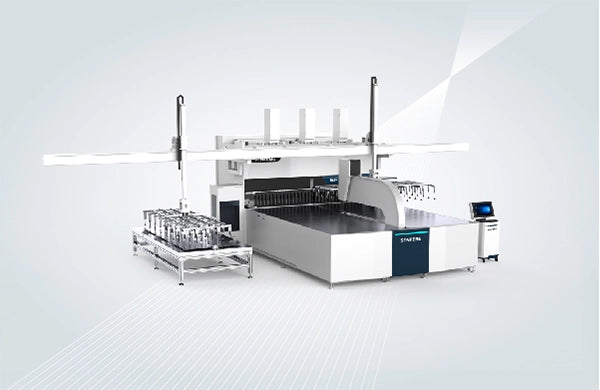

  • Gantry loader (100 kg) or six-axis robot (150 kg payload, 3200 mm reach)
  • Reinforced bed from 80 mm steel plate, modular safety fencing

Technical data

Model BDC1500 BDC2000 BDC2500 BDC3200 BDC4200
Max. bending length (mm) 1500 2000 2500 3200 4200
Fastest bend (s) 0.2
Bending height (mm) 200 / 300 (option)
Max. thickness (mm) Stainless 1.5 / mild steel 2.0 / aluminium 2.5
Min. thickness (mm) 0.35
Max. sheet size (mm) 1500×1250 2000×1250 2500×1250 3200×1500 4200×1500
Axes 13 13 13 16 16
Overall size L×W×H (mm) 4400×2000×2750 5000×2700×2950 5700×3200×3050 6600×4000×3280 7500×5000×3500
Weight (t) 13 17 20 28 35
Power supply 380 V, 3-phase

Sizes and weights are for the bender; gantry and robot cells need extra floor space. Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
