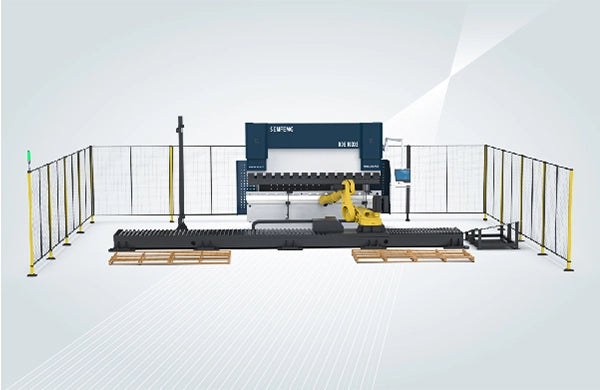

SENFENG BDE10032ES is an automated bending cell: an electro-hydraulic CNC press brake served by a six-axis robot on a floor-mounted rail. The robot loads, positions, flips and unloads parts for round-the-clock bending of medium and large sheet parts with fewer operators.
Supplied on quotation. Choose the cell above and tell us your part sizes, materials and batch volumes in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | BDE10032ES robot cell |
|---|---|
| Robot axes | 6+1 |
| Robot payload (kg) | 80 / 130 / 220 / 500 |
| Max. part size (mm) | 2500×1250 / 3000×1500 / 4000×1500 / 6000×1500 |
| Min. sheet thickness (mm) | 0.8 |
| Max. part weight (kg) | 130 |
| Max. blank stack height (mm) | 400 |
| Max. finished stack height (mm) | 900 |
Robot and part-size options are chosen to suit your parts. Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
