Home » SENFENG PLUS Series High-Speed Tube Laser Cutter, 3–6 kW

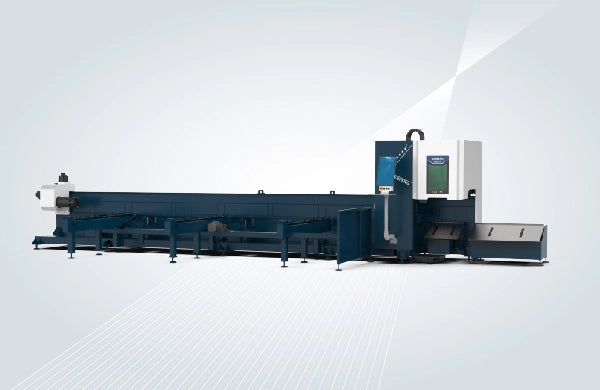

SENFENG PLUS Series tube laser cutter
SENFENG PLUS Series tube laser cutter
SENFENG

SENFENG PLUS Series High-Speed Tube Laser Cutter, 3–6 kW

Out of stock
SKU: SF6012PLUS
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF6012PLUS SKUSF6012PLUS

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG PLUS Series is a high-speed, high-precision tube laser for batch cutting of small-diameter round, square and rectangular tube. 3–6 kW laser, automatic loading and software for near-zero tail waste and flying cuts.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Automatic loading for higher throughput
  • Welded side-mounted bed for rigidity
  • Support that follows tube rotation to stop sagging
  • Servo-driven dual chucks
  • Near-zero tail waste and one-click flying-cut paths
  • Optional weld seam detection and visual scanning

Technical data

Model SF6012PLUS SF6016PLUS SF6024PLUS SF7012PLUS
Laser power (kW) 3–6
Tube length (mm) 1000–6500 1000–6500 1000–6500 1000–7000
Tube size (mm) Ø15–120 / □15–120 Ø15–170 / □15–170 Ø20–240 / □20–240 Ø15–120 / □15–120
Max. tube weight (kg) 120 150 300 120
X/Y positioning accuracy (mm) ±0.05
X/Y repeatability (mm) ±0.03
Max. no-load speed (m/min) 120 120 150 120
Max. chuck speed (rpm) 180 180 90 180
Overall size L×W×H (mm) 9100×2230×2300 9100×2230×2300 9320×3100×2500 9600×2230×2300
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
