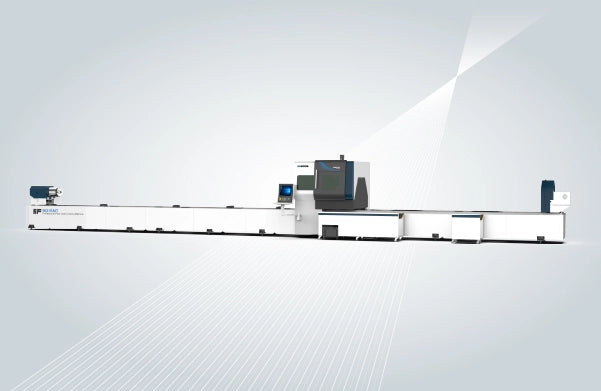

SENFENG NT Series is a three-chuck tube laser for long tube from 6 to 12 m. The three chucks hold long work steady and move to leave almost no tail. 3–12 kW laser, tubes up to Ø360 mm and 700 kg.
Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | SF6024NT | SF6035NT | SF9024NT | SF9035NT | SF12035NT |
|---|---|---|---|---|---|
| Laser power (kW) | 3–12 | 3–6 | 3–6 | 3–6 | 3–6 |
| Tube length (mm) | 3000–6500 | 3000–6200 | 3000–9000 | 9000 | 3000–12000 |
| Tube size (mm) | Ø20–230 / □20–230 | Ø20–360 / □20–360 | Ø20–230 / □20–230 | Ø20–360 / □20–360 | Ø50–360 / □50–360 |
| Max. tube weight (kg) | 260 | 700 | 260 | 700 | 700 |
| X/Y positioning accuracy (mm) | ±0.05 | ||||
| X/Y repeatability (mm) | ±0.03 | ||||
| Max. no-load speed (m/min) | 75 | 60 | 75 | 60 | 60 |
| Max. chuck speed (rpm) | 100 | 60 | 100 | 60 | 60 |
| Overall size L×W×H (mm) | 13800×2750×3150 | 13800×2750×3350 | 16850×2750×3150 | 16850×2750×3350 | 19800×2750×3350 |
| Power supply | 3-phase 380 V, 50/60 Hz | ||||
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
