Home » SENFENG NP Series Fibre Laser Sheet Cutter, up to 12 kW
SENFENG NP Series fibre laser sheet cutter
SENFENG NP Series fibre laser sheet cutter
SENFENG

SENFENG NP Series Fibre Laser Sheet Cutter, up to 12 kW

Out of stock
SKU: SF3015NP
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015NP SKUSF3015NP

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

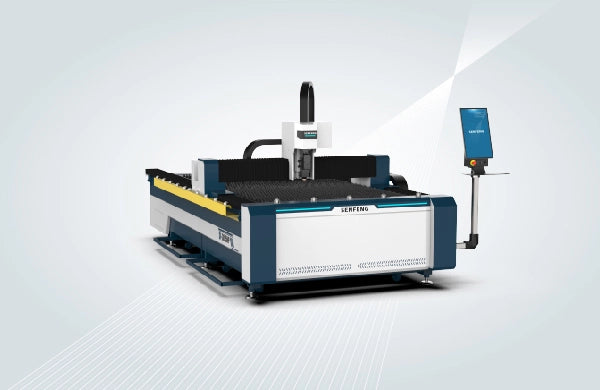

SENFENG NP Series is an open-style, single-platform fibre laser sheet cutter with sources up to 12 kW, 120 m/min no-load speed and 1.2 G acceleration. Intelligent air cutting (cutting with compressed air instead of nitrogen or oxygen) is available as an option to lower running costs.

Supplied on quotation. Choose the table size above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Flash piercing for faster piercing of thick plate
  • Smooth piercing adapts to plate thickness in real time
  • Micro-joints that break off by hand for a clean edge
  • Automatic edge detection finds the sheet position and angle
  • Jump function cuts idle travel time by at least 70%
  • Ball-transfer table makes manual or semi-automatic loading easier

Technical data

Model SF3015NP SF4020NP SF6015NP SF6020NP
Laser power (kW) 3–12 12 12 12
Working area (mm) 3050×1530 4050×2030 6050×1530 6050×2030
Max. table load (kg) 1100 1900 2800 2800
Max. no-load speed (m/min) 120
Max. acceleration (G) 1.2
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 4482×2760×1960 5482×3260×1960 8100×2760×1800 8100×3260×1800
Power supply 3-phase 380 V, 50/60 Hz (other voltages to order)

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
