SENFENG NP Intelligent Air Cutting Fibre Laser, 12 kW

Out of stock
SKU: SF3015NP-AC
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015NP AC SKUSF3015NP-AC

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

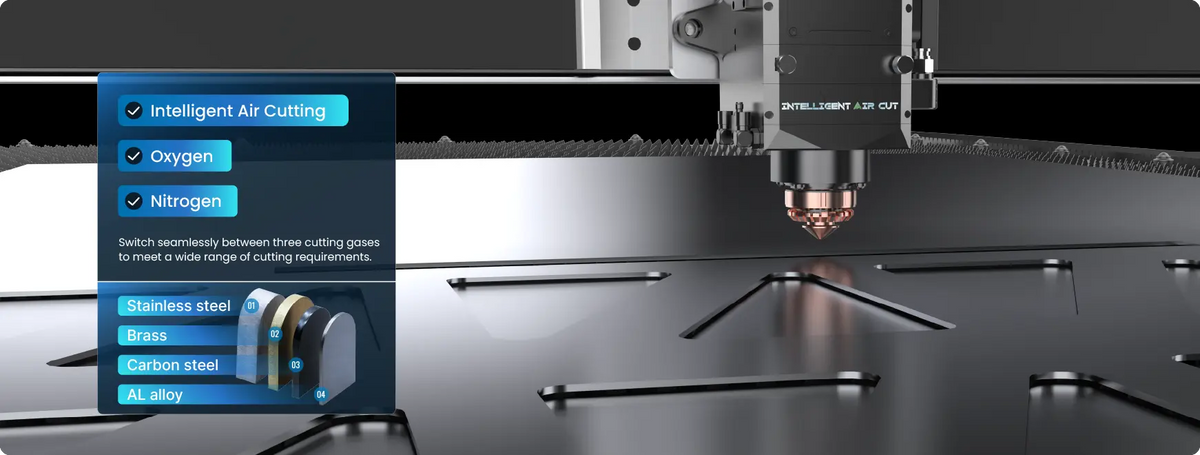

SENFENG NP Intelligent Air Cutting is a cost-effective, open-style 12 kW fibre laser that cuts medium and thin sheet with clean compressed air, giving oxide-free, burr-free edges close to nitrogen cutting at a fraction of the gas cost.

Supplied on quotation. Choose the table size above and send in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Intelligent air cutting for medium and thin sheet
  • Closed-loop air cleanliness detection and control (oil, water, dust)

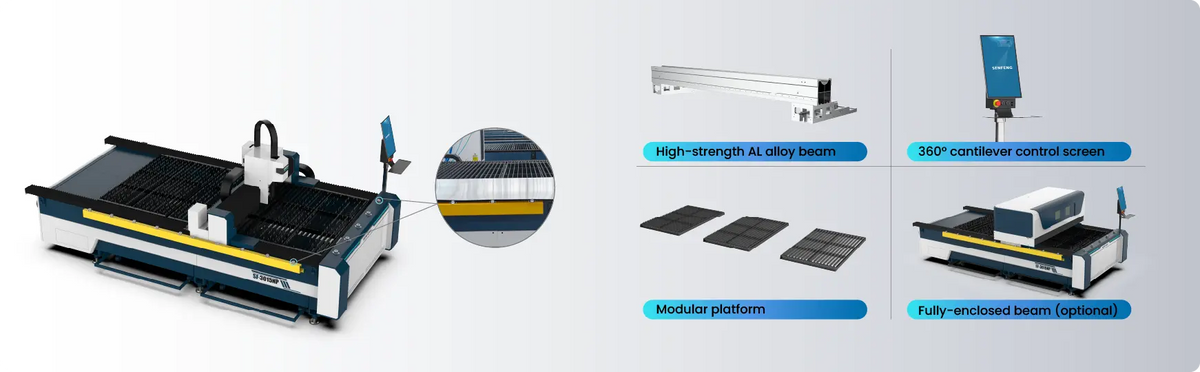

  • Compact open frame with aluminium beam and hollow bed
  • A8 bus CNC with one-click start and central monitoring
  • Optional AI Process Cube with built-in process recipes
  • Optional servo loading arm, automatic nozzle changer and vision nesting

Technical data

Model SF3015NP AC SF4015NP AC SF4020NP AC SF6015NP AC SF6020NP AC
Laser power (kW) 12
Working area (mm) 3050×1530 4050×1530 4050×2030 6050×1530 6050×2030
Max. table load (kg) 1100 1400 1900 2100 2800
Max. no-load speed (m/min) 120
Max. acceleration (G) 1.2
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 4500×2900×2100 5500×2900×2100 5500×3400×1900 8100×2900×1900 8100×3400×1900
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
