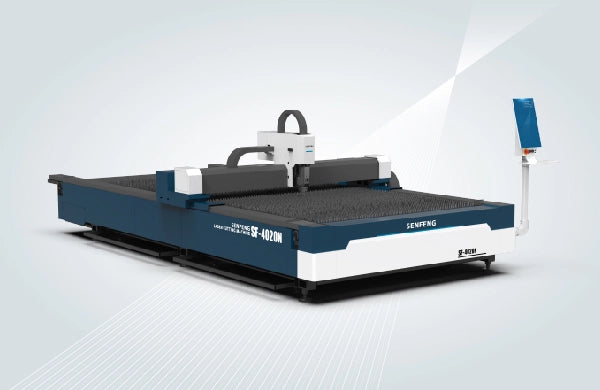

SENFENG N Series fibre laser sheet cutter
SENFENG N Series fibre laser sheet cutter
SENFENG

SENFENG N Series Fibre Laser Sheet Cutter, 1.5–6 kW

Out of stock
SKU: SF3015N
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015N SKUSF3015N

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG N Series is an open-style, cost-effective fibre laser for cutting metal sheet, with a single working table and laser sources from 1.5 to 6 kW. Five table sizes run from 3050×1530 mm to 6050×2030 mm.

Supplied on quotation. Choose the table size above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Autofocus cutting head adjusts focus to the material and thickness
  • Hollow bed and high-strength aluminium beam for fast, stable thin-sheet cutting
  • Smooth piercing adapts to plate thickness in real time
  • Micro-joints that break off by hand for a clean edge
  • Automatic edge detection finds the sheet position and angle
  • Jump function cuts idle travel time by at least 70%

Technical data

Model SF3015N SF4015N SF4020N SF6015N SF6020N
Laser power (kW) 1.5–6
Working area (mm) 3050×1530 4050×1530 4050×2030 6050×1530 6050×2030
Max. table load (kg) 1100 950 1870 2100 2000
Max. no-load speed (m/min) 100
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 4360×2760×1800 5560×2760×1800 5360×3290×1800 8030×2760×1800 8030×3290×1800
Power supply 3-phase 380 V, 50/60 Hz (other voltages to order)

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
