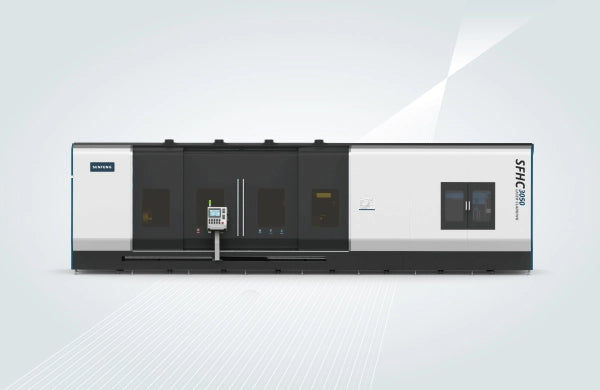

SENFENG SFHC3050 inner and outer wall laser cladding machine

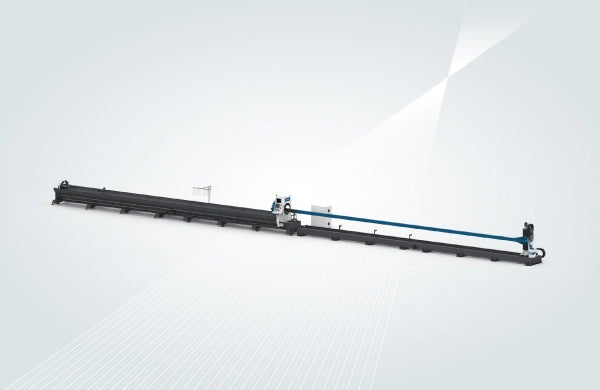

SENFENG SFHC12050 extra-long inner bore laser cladding machine
SENFENG SFHC3050 inner and outer wall laser cladding machine
SENFENG SFHC12050 extra-long inner bore laser cladding machine
SENFENG

SENFENG Inner Bore and Outer Wall Laser Cladding Machines

Out of stock
SKU: SFHC3050
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSFHC3050 SKUSFHC3050

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG SFHC machines clad the inside and outside of cylinders, pipes and deep bores. The SFHC3050 repairs inner and outer walls of large rotary parts; the SFHC12050 clads bores up to 12 m deep in one pass for petrochemical, power and construction-machinery pipes and cylinders.

Supplied on quotation. Choose the model above and tell us the parts, sizes and coating you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Forward-angled inner-bore cladding head
  • Fully enclosed chamber with two-stage fume extraction
  • Servo-driven powder feeder with remote control and low-powder alarm
  • Real-time compensation for part deformation (SFHC12050)
  • Automatic lubrication and post-cladding spray cooling

Technical data

Model SFHC3050 SFHC12050
Laser power (kW) 6 / 12 12
Bore Ø (mm) 160–500 260–473
Outer Ø (mm) 140–630 –
Max. swing Ø (mm) 1200 –
Max. bore depth (m) – 12
Max. load (t) – 3

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
