Email us for a quote.
Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

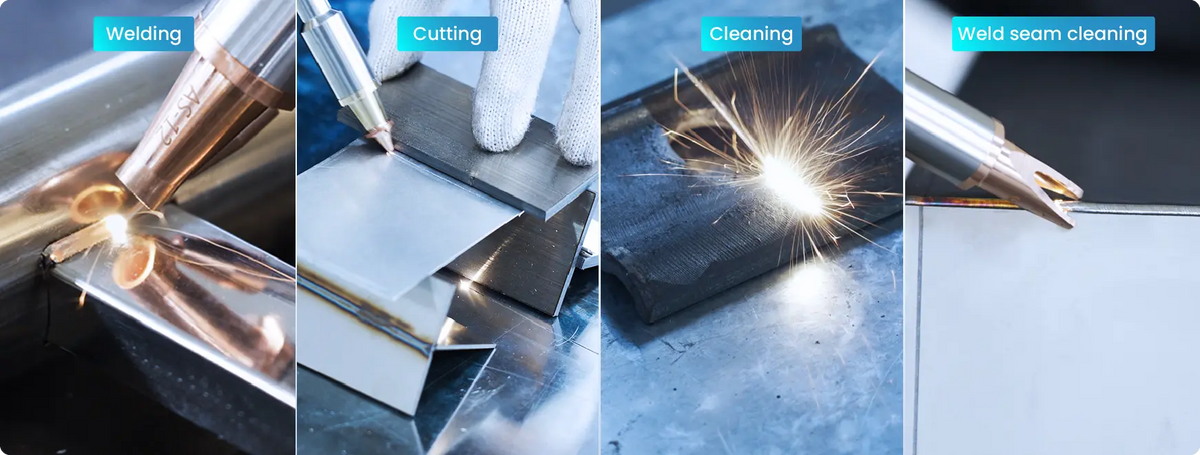

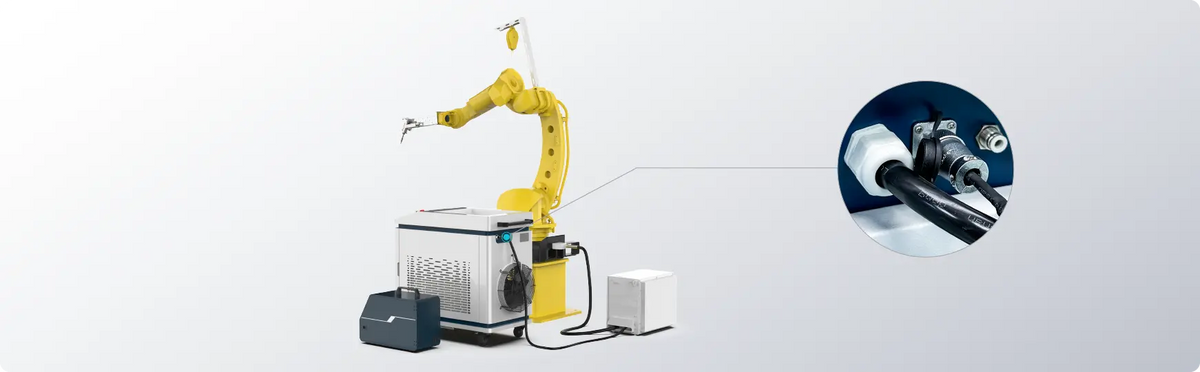

SENFENG HWM Series is a water-cooled handheld fibre laser welder for consistent production welding, with welding, cutting, cleaning and weld seam cleaning in one unit. 1.5–3 kW, welds up to 7 mm, and I/O ports for connection to a welding robot.
Supplied on quotation. Choose the model above and tell us the materials and thicknesses you weld in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | SF1500HWM | SF2000HWM | SF3000HWM |
|---|---|---|---|
| Laser power (kW) | 1.5 | 2 | 3 |
| Wavelength (nm) | 1080 ±10 | ||
| Welding thickness (mm) | ≤4 | ≤5 | ≤7 |
| Filler wire Ø (mm) | 0.8–1.6 | 0.8–1.6 | 0.8–2 |

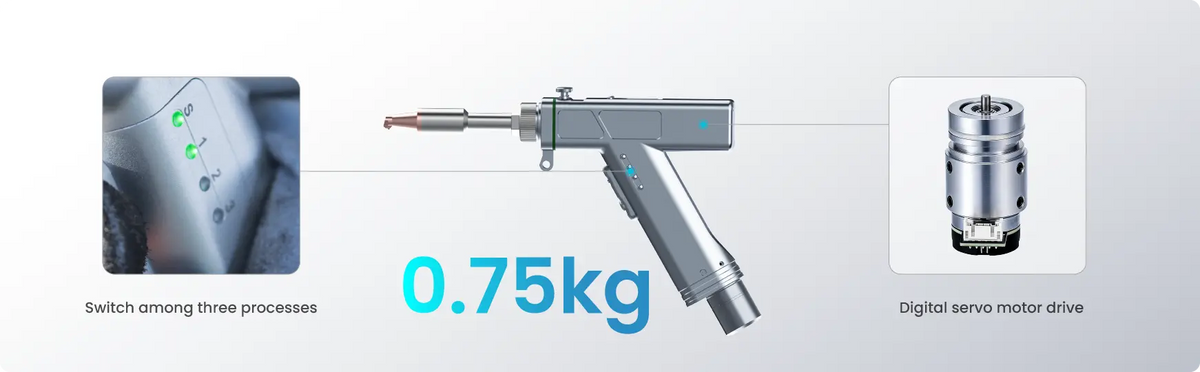

| Welding gun weight (kg) | ≤0.75 | ||
| Gun cable length (m) | 10 | ||
| Net weight (kg) | 220 | 220 | 265 |
| Power supply | 3-phase 380 V, 50/60 Hz | ||
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
