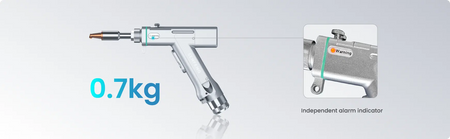

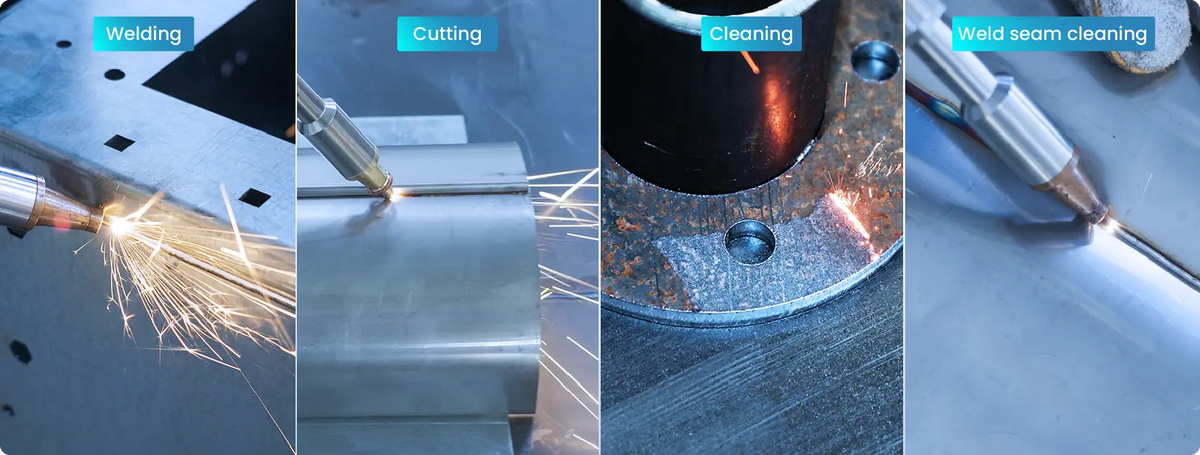

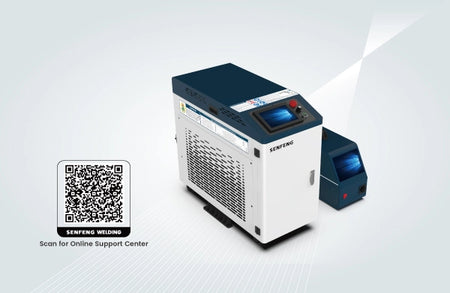

SENFENG HW Series is a water-cooled handheld fibre laser welder that also cuts, cleans and cleans weld seams. A light 0.7 kg gun on a 10 m cable, a 49-recipe process library and single or dual wire feed make it a cost-effective choice for small and medium fabricators. 1.5–3 kW, welds up to 7 mm.
Supplied on quotation. Choose the model above and tell us the materials and thicknesses you weld in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | SF1500HW | SF2000HW | SF3000HW |
|---|---|---|---|
| Laser power (kW) | 1.5 | 2 | 3 |
| Wavelength (nm) | 1080 ±5 | ||
| Welding thickness (mm) | ≤4 | ≤5 | ≤7 |
| Filler wire Ø (mm) | 0.8–1.6 | 0.8–1.6 | 0.8–2 |
| Cooling | Water | ||
| Welding gun weight (kg) | ≤0.7 | ||
| Gun cable length (m) | 10 | ||
| Overall size L×W×H (mm) | 968×660×826 | 968×660×826 | 980×720×867 |
| Power supply | Single-phase 220 V | Single-phase 220 V | 3-phase 380 V |
The 2 kW power supply is as listed for the 1.5 kW model; please confirm on your quotation. Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
