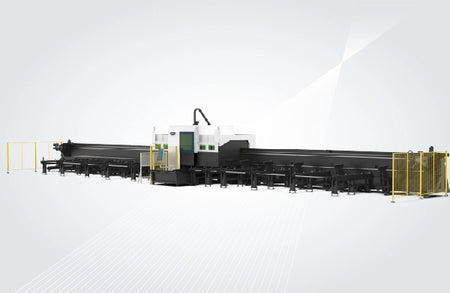

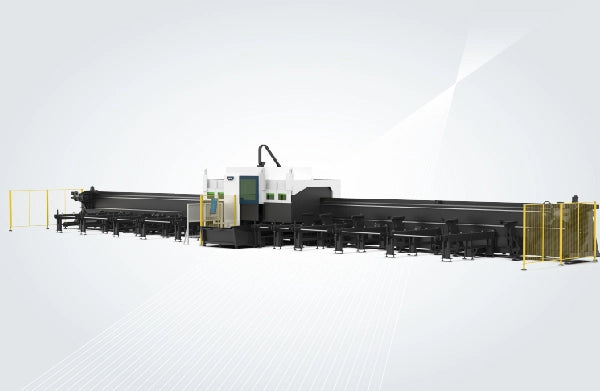

SENFENG HT Series four-chuck tube laser cutter
SENFENG HT Series four-chuck tube laser cutter
SENFENG HT Series four-chuck tube laser cutter
SENFENG HT Series four-chuck tube laser cutter
SENFENG

SENFENG HT Series Four-Chuck Tube Laser Cutter, 6–20 kW

Out of stock
SKU: SF12035HT
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF12035HT SKUSF12035HT

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG HT Series is a four-chuck tube laser for large-diameter, heavy and long tube. Four chucks support the tube along its length for accurate cutting with zero tail. 6–20 kW laser, tubes Ø50–640 mm, 12 or 15 m long and up to 3000 kg.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

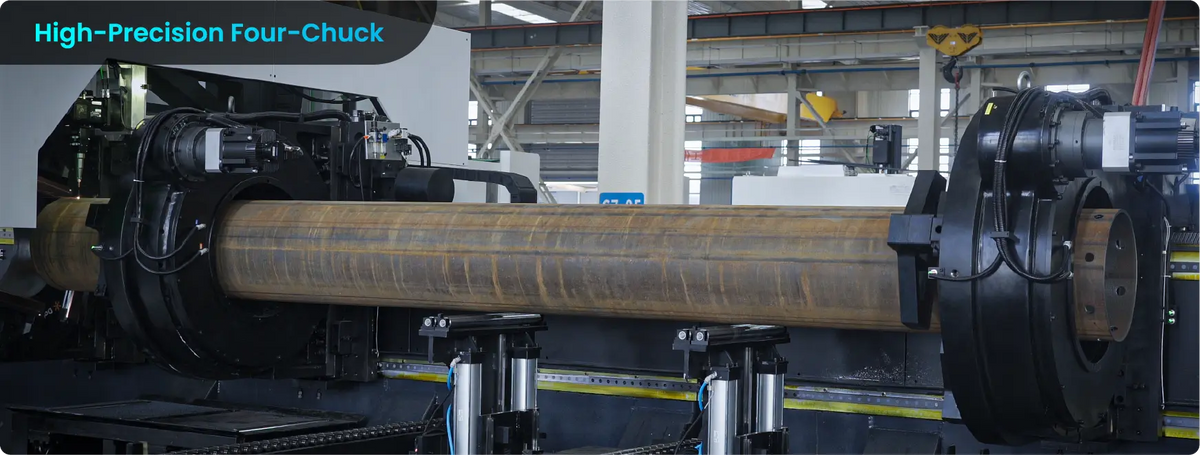

  • Four-chuck clamping for long, heavy tube
  • Zero-tail cutting
  • Automatic loading and unloading
  • Space-efficient side-mounted bed
  • Optional bevel cutting for weld preparation
  • Optional weld seam detection and visual position correction

Technical data

Model SF12035HT SF12050HT SF12056HT SF12065HT SF15056HT
Laser power (kW) 6–20
Max. tube length (mm) 12000 12000 12000 12000 15000
Tube size (mm) Ø50–360 / □50–360 Ø50–500 / □50–500 Ø50–560 / □50–400 Ø50–640 / □50–640 Ø50–560 / □50–400
Max. tube weight (kg) 1200 2000 1800 3000 1800
Positioning accuracy (mm) ±0.1/1000
Repeatability (mm) ±0.1
Max. no-load speed (m/min) 60 40 30 30 30
Max. chuck speed (rpm) 60 40 30 30 30
Overall size L×W×H (mm) 28500×6500×4500 29000×7200×4200 29000×7200×4200 29000×7200×4200 36000×7200×4200
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
