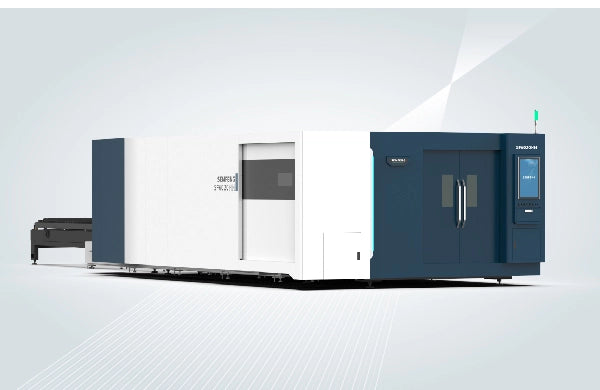

SENFENG HM Series sheet and tube fibre laser cutter
SENFENG HM Series sheet and tube fibre laser cutter
SENFENG

SENFENG HM Series Full-Cover Sheet and Tube Fibre Laser Cutter, 6–30 kW

Out of stock
SKU: SF3015HM
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015HM SKUSF3015HM

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG HM Series cuts both sheet and tube on one fully enclosed machine, saving over half the cost and floor space of two separate lasers. It has 6–30 kW sources, exchange tables for sheet, and a rotary chuck for tubes Ø20–220 mm up to 6 m long.

Supplied on quotation. Choose the table size above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Sheet and tube cutting in one enclosed machine
  • Dual exchange tables: load one while the other cuts
  • Heavy-duty thermally isolated bed, sheet up to 60 mm carbon steel
  • Dual-channel zoned dust extraction
  • Camera monitoring of the cutting area
  • Automatic nozzle changing and vision nesting

Technical data

Model SF3015HM SF4020HM SF6020HM SF6025HM
Laser power (kW) 6–30
Sheet working area (mm) 3050×1530 4050×2030 6050×2030 6050×2530
Tube size (mm) 20–220
Max. tube length (mm) 6000
Max. table load (kg) 3000 5000 7550 9000
Max. no-load speed (m/min) 200
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 9226×3470×2350 10770×4304×2410 14982×4304×2410 14830×4894×2410
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
