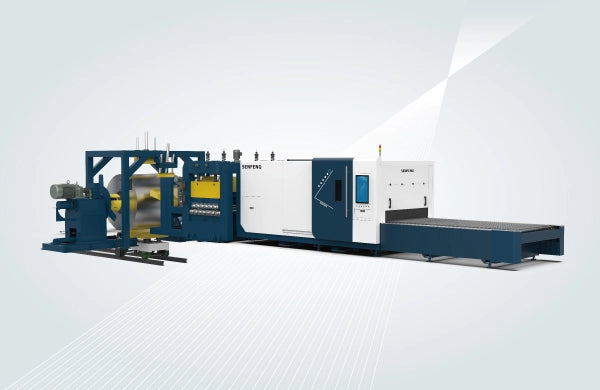

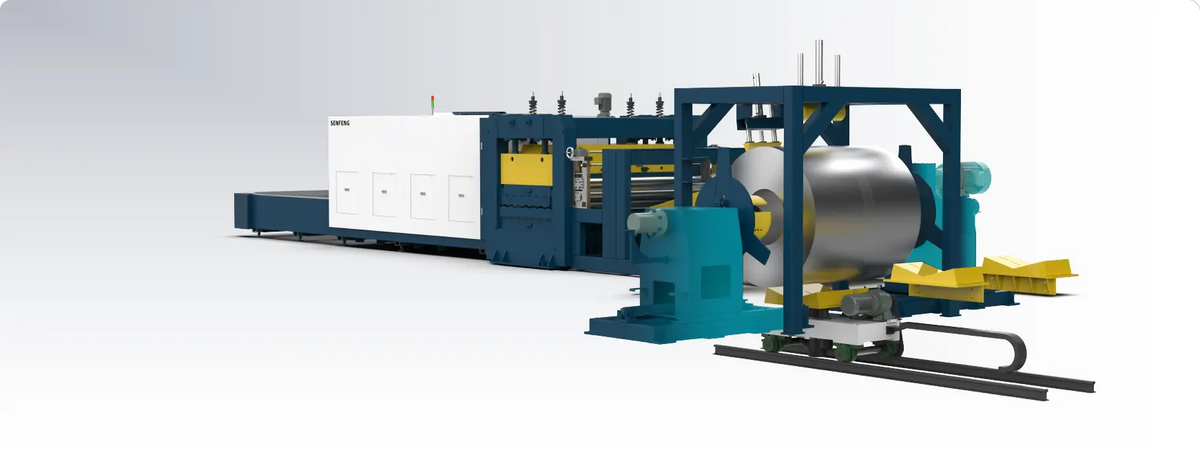

SENFENG heavy coil laser blanking line
SENFENG heavy coil laser blanking line

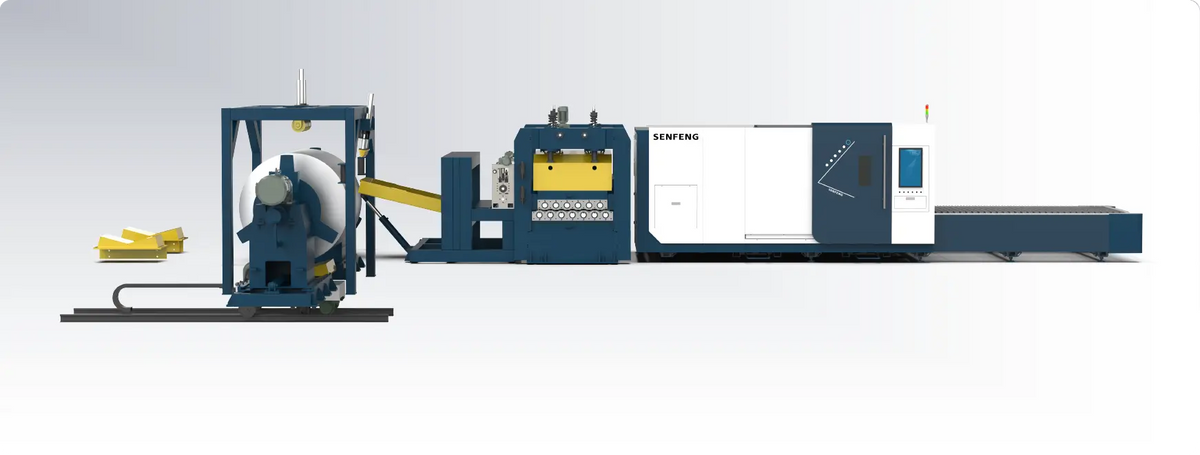

SENFENG SF1820CH coil laser blanking line

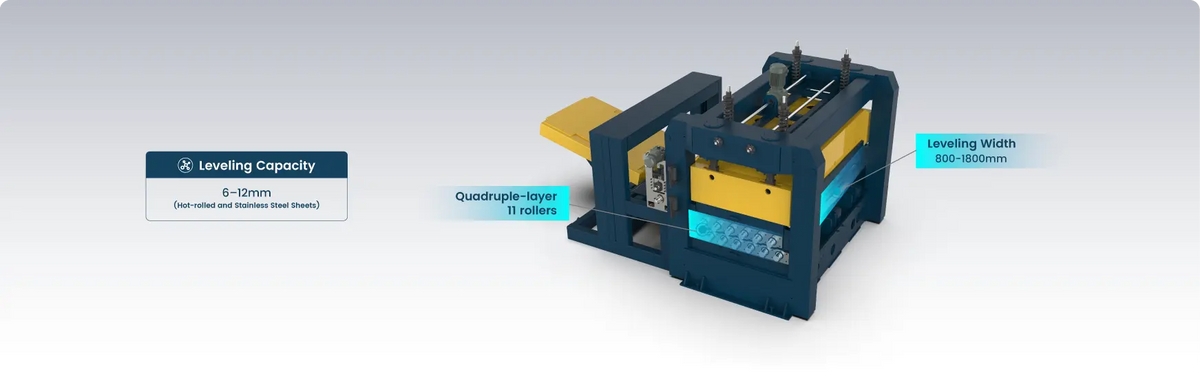

SENFENG heavy coil levelling machine
SENFENG heavy coil laser blanking line
SENFENG heavy coil laser blanking line
SENFENG SF1820CH coil laser blanking line
SENFENG heavy coil levelling machine
SENFENG

SENFENG Heavy Coil Laser Blanking Lines for 6–20 mm Steel

Out of stock
SKU: SF2012CH
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF2012CH SKUSF2012CH

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG heavy coil laser blanking lines process thick steel coil from 6 to 20 mm: a heavy-duty uncoiler and leveller feed a fully enclosed 12–80 kW fibre laser. The multi cross-beam version carries several cutting heads on separate beams, cutting together or independently for higher output.

Supplied on quotation. Choose the line above and tell us your coil widths, thicknesses, coil weights and materials in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • 12–80 kW ultra-high-power laser
  • Dual-arm heavy-coil uncoiler, up to 30 t coils
  • In-house intelligent levelling
  • Fully enclosed cutting area with dust extraction
  • Nesting from coil cuts material cost
  • Optional truss or robot unloading and multi-head cutting

Technical data

Model SF2012CH SF1820CH Multi cross-beam line
Coil thickness (mm) 8–14 6–20 to order
Laser power (kW) 12–80 12–80 to order
Levelling unit (mm) 4000×2000 8000×1800 to order
Coil inner Ø (mm) 610 / 762 610 / 762 –
Max. coil outer Ø (mm) 1000–1800 1000–1800 –
Max. coil weight (t) 20 30 –
Max. feed speed (m/min) 10 10 –
Levelling accuracy (mm/m²) ±5 ±2 –
Positioning / repeatability (mm) ±0.05 / ±0.02
Power supply 3-phase 380 V, 50/60 Hz

SENFENG does not publish standard data for the multi cross-beam line; it is configured per project. Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
