SENFENG HC Series Enclosed Fibre Laser Sheet Cutter, 1.5–12 kW

Out of stock
SKU: SF3015H
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015H SKUSF3015H

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

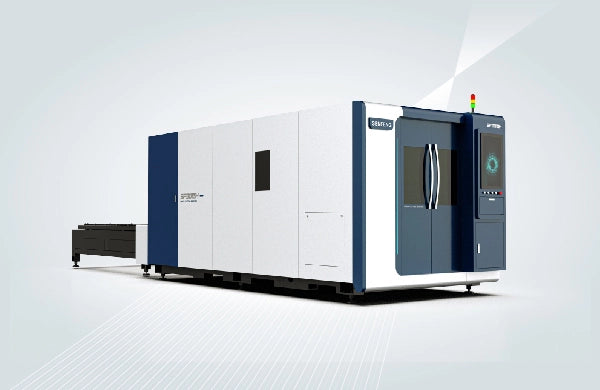

SENFENG HC Series (SF3015H family) is a fully enclosed fibre laser sheet cutter with a dual exchange table in a compact footprint. One table is loaded while the other cuts. Laser sources from 1.5 to 12 kW, 130 m/min no-load speed.

Supplied on quotation. Choose the table size above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Fully enclosed on four sides with top cover and sealed lifting door
  • Dual exchange tables in a space-saving layout
  • Zoned dust extraction that follows the cutting position
  • HD panoramic camera monitoring
  • Jump function cuts idle travel time by at least 70%
  • Flash, smooth, progressive and de-slag piercing modes plus automatic edge detection

Technical data

Model SF3015H SF4015H SF4020H SF6015H SF6020H
Laser power (kW) 1.5–12
Working area (mm) 3050×1530 4050×1530 4050×2030 6050×1530 6050×2030
Max. table load (kg) 1100 1500 1900 2200 2900
Max. no-load speed (m/min) 130
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 8520×2270×2180 10940×2270×2200 11064×3243×2260 14740×2270×2200 14900×3243×2260
Power supply 3-phase 380 V, 50/60 Hz (other voltages to order)

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
