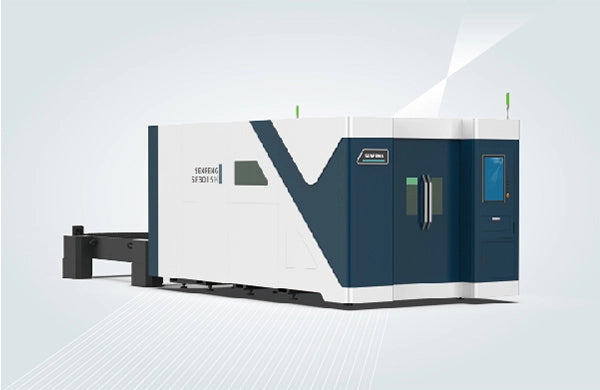

SENFENG H5 Series ultra-high-performance plate laser cutter
SENFENG H5 Series ultra-high-performance plate laser cutter
SENFENG

SENFENG H5 Series Ultra-High-Performance Plate Laser Cutter, 12–80 kW

Out of stock
SKU: SF3015H5
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015H5 SKUSF3015H5

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG H5 Series is the 5th-generation fully enclosed plate cutter, with 12–80 kW sources and cutting capacity up to 200 mm in carbon and stainless steel. Dual hydraulic lifting tables stay aligned after each exchange, so there is less waiting between jobs. An optional ±45° bevel head cuts V, X, Y and K weld preparations.

Supplied on quotation. Choose the model above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Dual hydraulic lifting exchange tables, up to 30 t lifting capacity
  • Fully enclosed cabin with lifting door and light curtain
  • Thermally isolated hollow bed and aerospace-grade aluminium beam
  • Graphite or copper anti-burn plates and firebricks protect the bed
  • Zoned dust extraction that follows the cutting head
  • Optional ±45° bevel cutting head

Technical data

Model SF3015H5 SF4020H5 SF6025H5
Laser power (kW) 12–30 40–80 12–30
Working area (mm) 3050×1530 4050×2030 6050×2530
Max. hydraulic lifting weight (kg) 20000 30000 30000
Max. no-load speed (m/min) 200
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 8580×2895×2405 10740×3395×2405 15110×3895×2405
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
