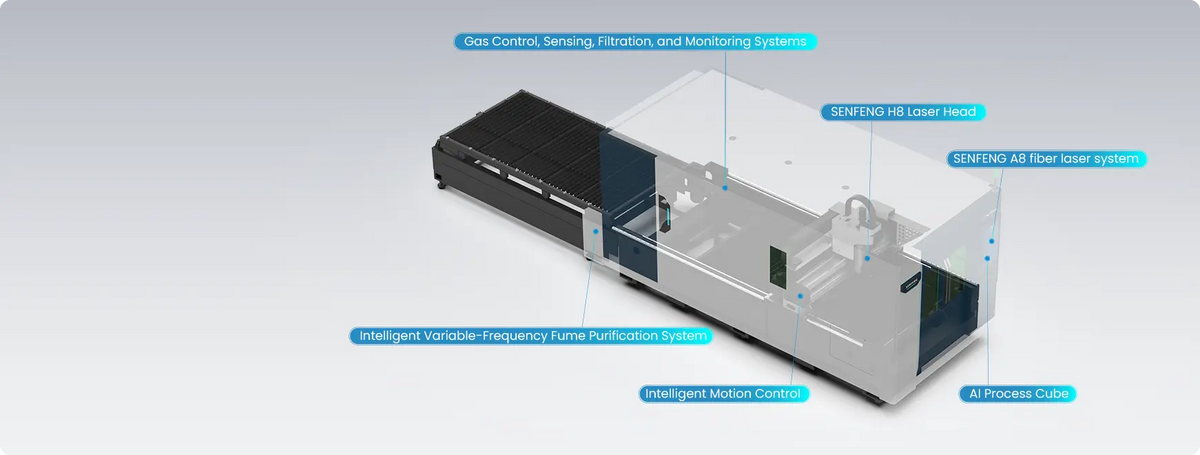

SENFENG H4 intelligent air cutting fibre laser
SENFENG intelligent air cutting system
SENFENG air cutting result
SENFENG H4 intelligent air cutting fibre laser
SENFENG intelligent air cutting system
SENFENG air cutting result
SENFENG

SENFENG H4 Intelligent Air Cutting Fibre Laser, 12 kW

Out of stock
SKU: SF3015H4-AC
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF3015H4 AC SKUSF3015H4-AC

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG H4 Intelligent Air Cutting cuts medium and thick plate up to 30 mm using clean compressed air instead of bought-in nitrogen or oxygen. Air supply, purification, monitoring and cutting parameters are controlled together, which lowers gas, energy and consumable costs. 12 kW source, 140 m/min no-load speed and 3 G acceleration.

Supplied on quotation. Choose the table size above and send in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Cuts with compressed air: no nitrogen supply or gas cylinders needed
  • Integrated air compressor, purification and cleanliness monitoring
  • A8 bus CNC controls motion, laser, gas and compressor, with built-in process library
  • Optional AI Process Cube detects burrs and scorching and adjusts parameters
  • Automatic nozzle changing and beam alignment
  • Variable-frequency dust extraction

Technical data

Model SF3015H4 AC SF4020H4 AC SF6015H4 AC SF6020H4 AC SF6025H4 AC
Laser power (kW) 12
Max. thickness (mm) 30
Working area (mm) 3080×1530 4100×2030 6100×1530 6100×2030 6100×2530
Max. table load (kg) 3000 5000 5660 7550 9000
Max. no-load speed (m/min) 140
Max. acceleration (G) 3
Positioning accuracy (mm) ±0.05
Repeatability (mm) ±0.02
Overall size L×W×H (mm) 8440×2270×2340 10795×3191×2410 14610×2270×2380 14980×3191×2410 14734×3781×2410
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
