SENFENG G PLUS Series Bevel Tube Laser Cutter, 1.5–3 kW

Out of stock
SKU: SF6012GPLUS
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF6012GPLUS SKUSF6012GPLUS

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

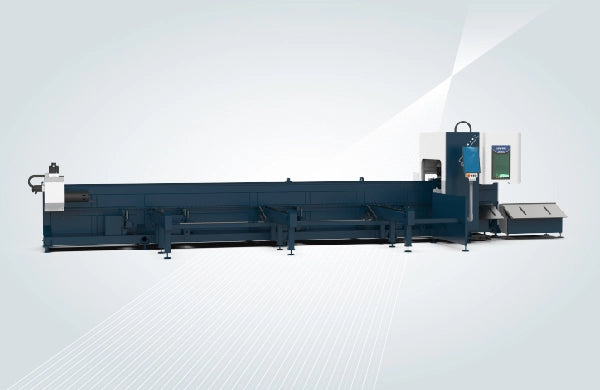

SENFENG G PLUS Series is a two-chuck tube laser with ±45° bevel cutting for small-diameter tube, so edges come off ready to weld. Automatic chain loading and unloading keep throughput high. 1.5–3 kW, tubes Ø15–120 mm up to 6.5 m.

Supplied on quotation. Choose the model above and tell us the tube sizes, lengths and materials you cut in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • ±45° bevel cutting for weld-ready edges
  • Automatic chain loading and automatic unloading
  • Servo support that follows the tube
  • Dust-resistant two-chuck clamping
  • Zero-tail design and nesting to reduce waste
  • Optional weld seam detection and visual scanning

Technical data

Model SF6012GPLUS
Laser power (kW) 1.5–3
Tube length (mm) 1000–6500
Tube size (mm) Ø15–120 / □15–120
Max. tube weight (kg) 120
X/Y positioning accuracy (mm) ±0.05
X/Y repeatability (mm) ±0.03
Max. no-load speed (m/min) 150
Max. chuck speed (rpm) 240
Overall size L×W×H (mm) 9100×2230×2300

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
