Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

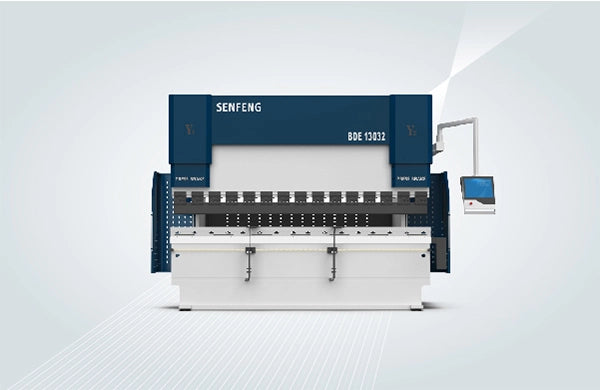

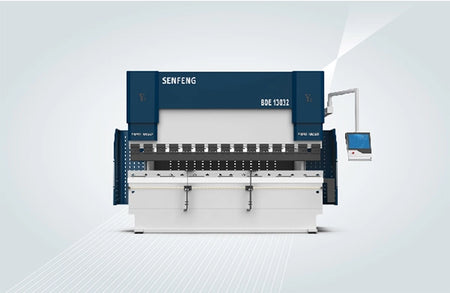

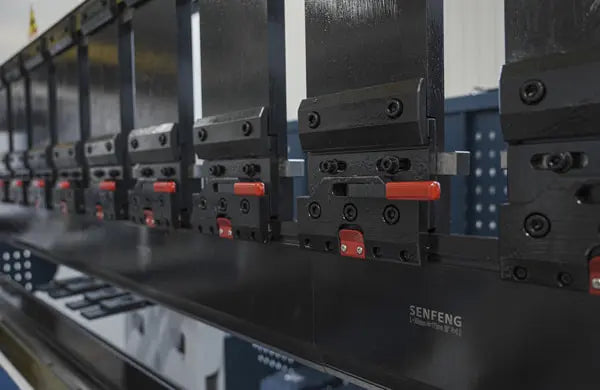

SENFENG BDE electro-hydraulic CNC press brakes combine hydraulic force with servo-controlled precision for sheet metal, steel structure and power equipment work. CNC wedge crowning compensates beam deflection, and a Delem, ESA or Cybelec control drives a ball-screw backgauge. Models shown run from 500 to 6000 kN; larger machines up to 20,000 kN and 15 m are built to order.
Supplied on quotation. Choose the model above and tell us the materials, thicknesses and bend lengths you work with in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | BDE5016 | BDE10032 | BDE10042 | BDE20060 | BDE25032 | BDE60060 |
|---|---|---|---|---|---|---|
| Bending force (kN) | 500 | 1000 | 1000 | 2000 | 2500 | 6000 |
| Bending length (mm) | 1600 | 3200 | 4200 | 6000 | 3200 | 6000 |
| Throat depth (mm) | 205 | 400 | 400 | 400 | 400 | 600 |
| Distance between columns (mm) | 1200 | 2600 | 3600 | 5000 | 2600 | 4800 |
| Open height (mm) | 460 | 480 | 480 | 480 | 500 | 670 |
| Approach speed (mm/s) | 180 | 180 | 180 | 140 | 130 | 90 |
| Bending speed (mm/s) | 0–10 | 0–10 | 0–10 | 0–8 | 0–8 | 0–7 |
| Return speed (mm/s) | 160 | 160 | 160 | 110 | 120 | 90 |
| Main motor (kW) | 5.5 | 7.5 | 7.5 | 18.5 | 18.5 | 45 |
| Overall size L×W×H (mm) | 2100×1770×2395 | 3700×1930×2630 | 4700×1930×2630 | 6500×2150×3290 | 3700×2120×2800 | 6200×2700×4750 |
| Weight (kg) | 3400 | 6600 | 8300 | 18500 | 10300 | 52000 |
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
