SENFENG CW Series Collaborative Robot Laser Welding Machine, 1.5–3 kW

Out of stock
SKU: SF-CW
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelCW Series SKUSF-CW

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

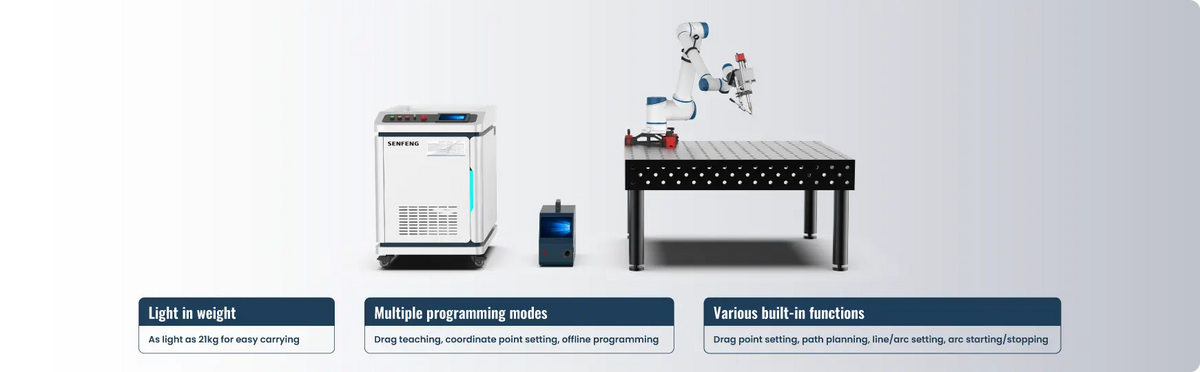

SENFENG CW Series pairs a collaborative robot arm with a laser welding head. The operator guides the arm by hand to record the weld path, so no programming skill is needed. Cobot, laser, chiller, wire feeder and controls come as one unit, with an optional mobile trolley. 1.5–3 kW, welds up to 7 mm steel.

Supplied on quotation. Choose the model above and tell us the laser power, parts and thicknesses you weld in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

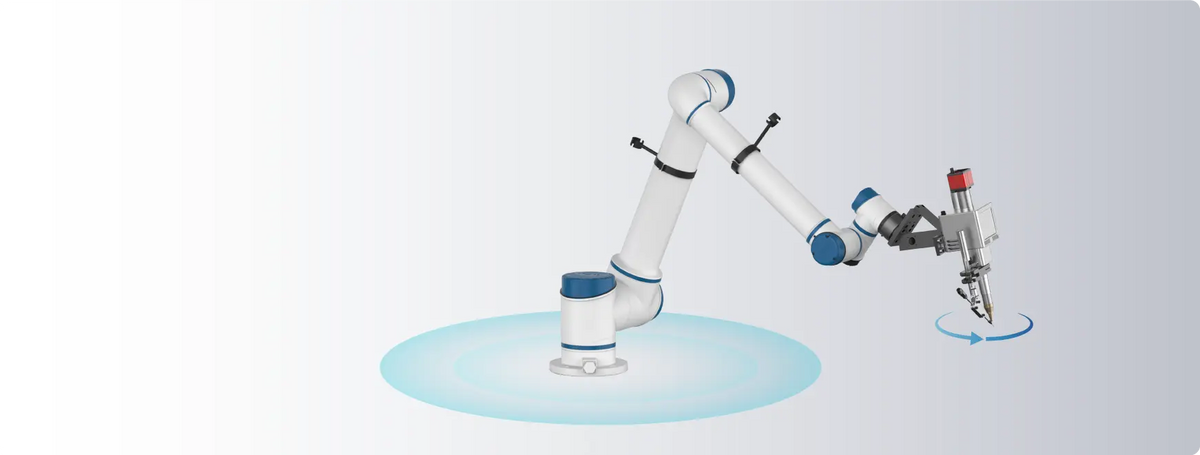

  • Drag-to-teach path recording, no complex programming
  • Cobot, laser, chiller, wire feeder and controls in one unit
  • Optional braked mobile trolley
  • Water-cooled welding head with 6 weld patterns
  • 4-wheel stepper wire feeder with quick-change connectors

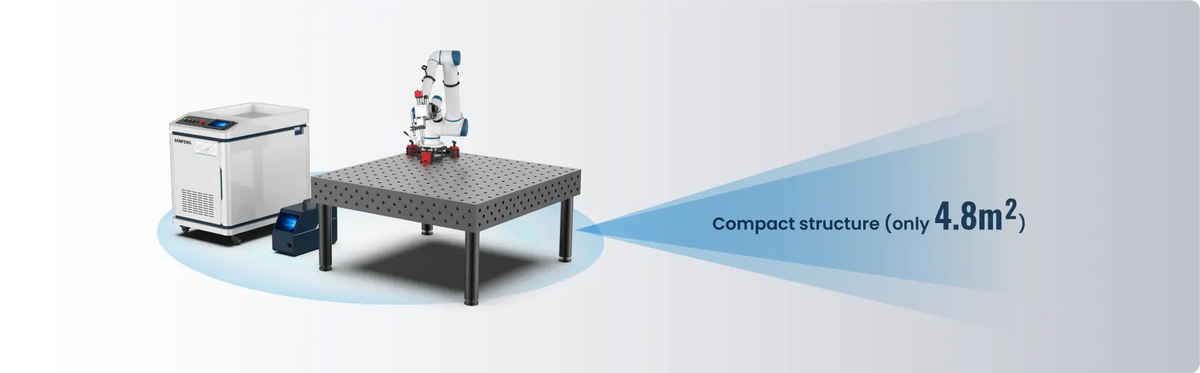

  • 3D welding table with fixture holes

Technical data

Model CW Series
Laser power (kW) 1.5–3
Max. welding thickness (mm) Steel 4–7; aluminium 4–6
Cobot payload (kg) 6–7
Cobot reach (mm) 1077–2000
Repeatability (mm) ±0.02 to ±0.05
Cobot weight (kg) 21–35
Wire Ø (mm) 0.8–1.6
Max. wire feed (mm/min) 1280
Cooling Water
Power supply 380 V ±10%, 50 Hz

Ranges depend on the laser and cobot fitted. Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
